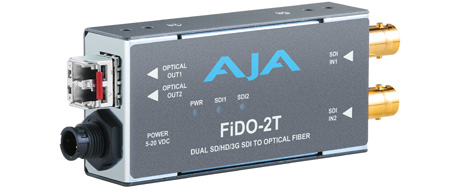

AJA FIDO-2T-X Dual Channel 3G-SDI To Single-Mode LC Fiber - CDWM

AJA's FiDO-2T-X Mini-Converters are intended for SDI-Fiber conversion and offer long cable runs up to 32,808-feet (10 km) with electrical isolation. This makes the FiDO-2T-X useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

The FiDO-2T-X offers further configuration options with CWDM SFPs (sold separately). These compact, interchangeable optical transceiver modules come with SC, LC, or ST simplex or duplex connectors. Modules are typically hot swappable and connect to a SFP port commonly found on fiber hardware. SFP modules permit cable connectors or optical transmission wavelengths to be changed quickly. SFP connections can handle up to 4.25Gbps.

NOTE: This product REQUIRES one of the CWDM Fiber SFP Options listed to below to operate. SFP modules are not included in purchase price. For more information please contact your Full Compass Sales Pro.

AJA FiDO-2T-CWDM Features:

• Dual Channel SDI to LC Fiber Converter with CWDM
• Duplex CWDM connection (LC connector)
• Dual, independent SDI, HD-SDI or 3G INPUTS
• Both SDI-to-Fiber paths are completely independents
• Note: Choose from 9 pairs of CWDM Wavelengths
• CWDM Wavelengths: FIB-2CW-2729; FIB-2CW-3133; FIB-2CW-3537; FIB-2CW-3941; FIB-2CW-4345; FIB-2CW-4749; FIB-2CW-5153; FIB-2CW-5557; FIB-2CW-5961;

Specifications

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital: 2-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
• Video Output Digital:
  • 2-Channel independent CWDM LC Fiber Outputs, SMPTE-259/292/424
  • Nominal Wavelength:
    • SFP Option 1: 1271 nm & 1291 nm
    • SFP Option 2: 1311 nm & 1331 nm
    • SFP Option 3: 1351 nm & 1371 nm
    • SFP Option 4: 1391 nm & 1411 nm
    • SFP Option 5: 1431 nm & 1451 nm
    • SFP Option 6: 1471 nm & 1491 nm
    • SFP Option 7: 1511 nm & 1531 nm
    • SFP Option 8: 1551 nm & 1571 nm
    • SFP Option 9: 1591 nm & 1611 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking:
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71" x 0.85" (117 x 43.5 x 21.6mm)
• Weight: 0.5 lb (0.3 kg)
• Power:
  • 3 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
• Environment
  • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
  • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: < 10,000 feet (< 3,000 meters)
