Product Overview

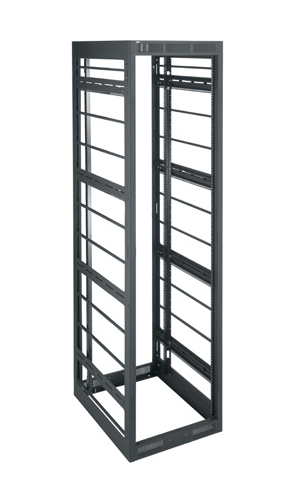

Middle Atlantic's VRK-44-36HLRD is a 44RU, 36" deep gangable floor-standing enclosure. This broadcast standard 22” wide rack is designed specifically for mounting video and AV equipment, and includes built-in horizontal lacing bars making it well suited for quick tie-and-slide lacing of video cable bundles.
Middle Atlantic VRK-44-36HLRD VRK Series Enclosure Features:
- Strong, narrow, multi-bay enclosure
- Fully welded construction for strength
- 1/8" thick structural steel internal braces
- Built-in 1/2" thick horizontal lacing bars on 7”centers for quick “tie-and-slide” lacing
- Racks gang together when fully loaded
- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
- Open top with configurable top panel options
- Durable black textured powder coat finish
Middle Atlantic VRK-44-36HLRD VRK Series Enclosure Specifications:
- General Specifications:
- Gangable: Yes
- Finish Type: Textured Black Powder Coat
- UL Standards Tested: 1678
- Listing Agencies:
- ASCE: 7-10
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Physical Specifications:
- Usable Depth: 33.5" (85.09 cm)
- Usable Height: 77" (195.58 cm)
- Capacity Weight: 10000 lbs (4545.45 kg)
- Dimensions: 36" D x 83.14" H x 22" W (91.44 x 211.18 x 55.9 cm)
- Primary Package Weight: 192 lbs (87.27 kg)
- Rack Units: 44
- Technical Specifications:
- Rackrail Type: 10-32
- Seismic Load Capacity: 740 lbs (336.36 kg)
- UL Load Capacity: 2500 lbs (1136.36 kg)
- Material: Steel
- Mounting: Horizontal
- Seismic Certified: Yes
