ETC/Elec Theatre Controls S4WRDG-C

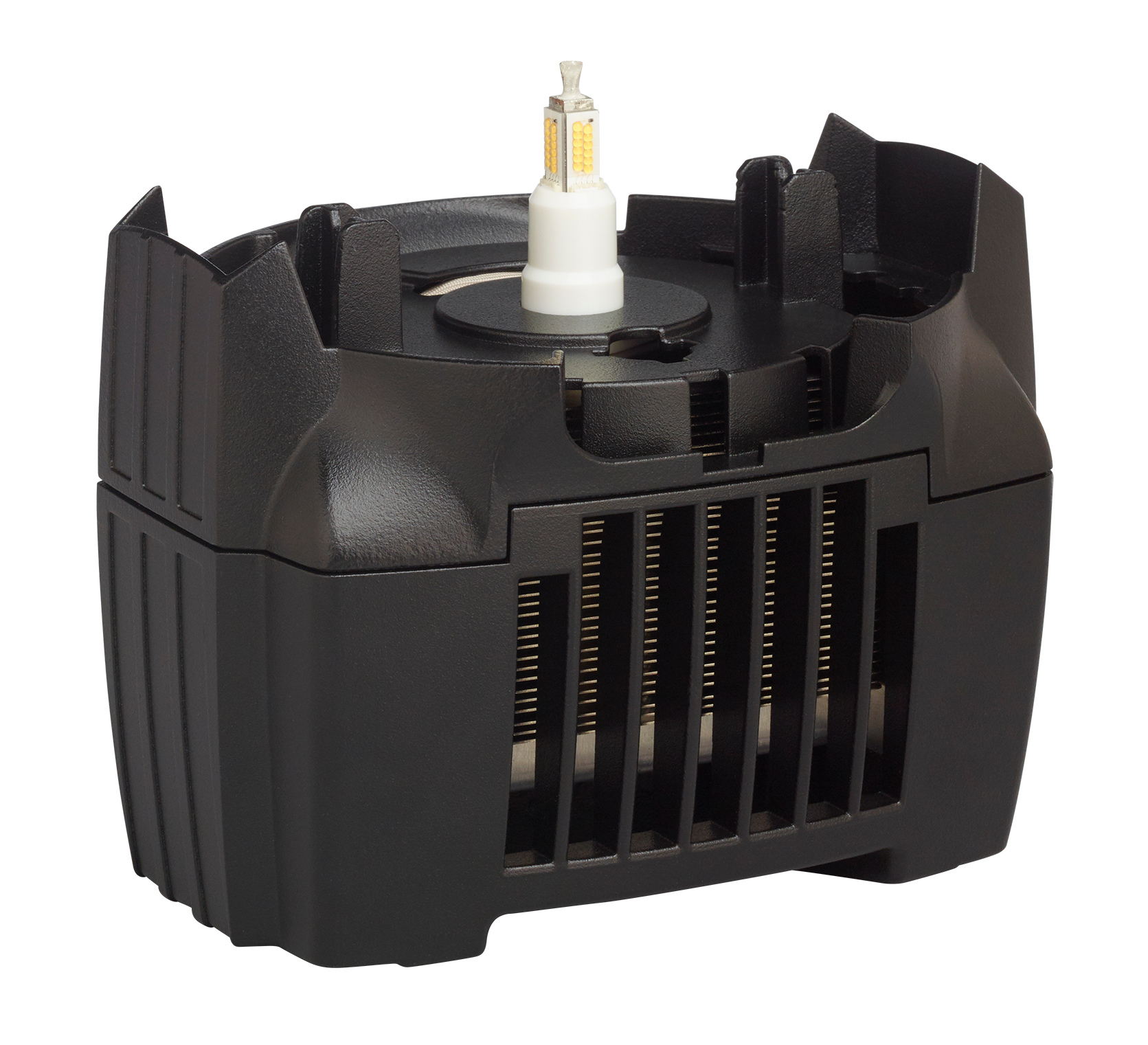

Source 4WRD Gallery Retrofit Kit in 90+ CRI with Twistlock Connector in Black


Meet ETC's S4WRDG-C Source 4WRD, the first bona fide, white-light LED retrofit for the Source Four® ellipsoidal.
Learn More
Our Price: $682.00
Write the first review.
ETC/Elec Theatre Controls S4WRDG-C
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Meet ETC's S4WRDG-C Source 4WRD, the first bona fide, white-light LED retrofit for the Source Four® ellipsoidal. This model is a Source 4WRD Gallery (90+ CRI) Retrofit Kit that comes with a twistlock connector in the color black.

The Source 4WRD (Watt Reduction Device) LED is a replacement for a standard Source Four® burner assembly that will convert the HPL source to a white-light LED and provides a significant reduction in power consumption. The simple and quick upgrade is nondestructive and takes less than a minute. In most cases it can even be done without breaking the fixture’s focus. Source 4WRD LED is theatrically dimmable via DMX or line dimmable, with a traditional LED curve, to allow flexibility for your installation. And, because it is an LED source, your fixtures will run cool and efficiently without lamp replacements. Please note that lens tubes are sold separately.

Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.


  • Energy saving retrofits
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums
  • Theaters

ETC S4WRDG-C Source4WRD LED Retrofit Features:

  • Advance any full-size, tungsten Source Four ellipsoidal to LED efficiency in seconds, and without special tools.
  • Same optics, same accessories, same flexibility as a Source Four fixture.
  • As bright as a 575-watt, extended life HPL lamp.
  • 70% less power, no re-lamping, no-hassle swap out.
  • TwistLock connection

ETC S4WRDG-C Specifications:

  • Physical:
    • Rugged, die cast aluminum construction
    • Can be fitted to any Source Four fixture body (not for Source Four Par/nel, Fresnel or jr.)
    • Seven segment display for simple DMX setup
    • Two button user interface
    • Easy mounting with single screw attachment
    • Replaces Source Four burner assembly
    • IP20 rating for indoor use only
    • UL and cUL Listed
      • S4WRD: UL1598C
      • S4WRDFB: UL1573
    • US patents issued and pending
    • Three-year warranty
  • Electrical:
    • 114-125V, 60Hz
    • 155 watt draw at full (182 watt theoretical max. draw)
    • 30,000 hour L70 Rating (ETC estimate)
      • Life testing under way. Results pending
    • DMX in and thru via RJ45 connector
      • DMX is not self terminating
    • One-meter power cord
    • AC and DMX dimmable (see ‘Dimming Performance’ note)
    • Two fixtures per circuit (D20 Module) when using AC dimming (recommended)
    • 14 fixtures per non-dim circuit (R20 Module) when using DMX dimming
    • Inrush: 30A (First half-cycle) at 120V
    • Typical Power Consumption at 120V
      • Idle Power / Current:
      • DMX Mode: 1.2W/.046A
      • AC Mode: 0W
      • Full Intensity Power / Current: 155.7W/1.35A
  • Optical:
    • Tool free field adjustment
    • LED lamp consisting of four CREE LED Modules
      • LED lamp is fragile and should not be touched
    • Two LED arrays to choose from
      • 3000K, 80+ CRI output
      • 3000K, 90+ CRI output (Gallery version)
    • Uses the Source Four ellipsoidal’s existing reflector and optical system
  • Thermal:
    • 5-40° C (41-104° F) operating range
      • Fixture must be above freezing temperatures for one hour before being energized.
    • Quiet fan cooling
    • Fixture is designed for continuous operation up to 104° F (40°C) ambient temperature and requires free flow of air around fixture housing
  • Diming Performance:
    • Source 4WRD LED is capable of being both DMX or line dimmed by a conventional SCR dimmer. In AC dimming mode, performance can vary based on the dimmer used and its control settings. For this reason, AC dimming is best suited for level setting or traditional LED quality dimming situations. When high-performance dimming is required, DMX mode should be used. ETC recommends testing Source 4WRD LED on existing dimmers you may wish to use.
