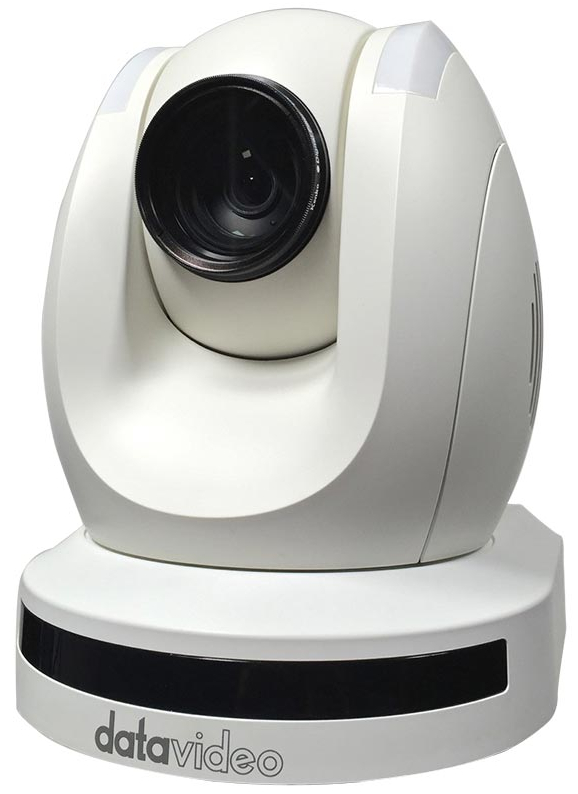

Datavideo PTC-150W HD/SD-SDI PTZ Camera, White

OUR PART #: PTC-150W MFR #: PTC150W

Copied to clipboard

Datavideo's PTC-150 HD/SD PTZ video camera has a 30x optical zoom, can be mounted on a wall, ceiling, floor, or tabletop, and includes an infrared (IR) remote control. ...Read more

Datavideo PTC-150W HD/SD-SDI PTZ Camera, White Image 1
Datavideo PTC-150W HD/SD-SDI PTZ Camera, White Image 2
Datavideo PTC-150W HD/SD-SDI PTZ Camera, White Image 3
Datavideo PTC-150W HD/SD-SDI PTZ Camera, White
Our Price: $1,699.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Datavideo's PTC-150 HD/SD PTZ video camera has a 30x optical zoom, can be mounted on a wall, ceiling, floor, or tabletop, and includes an infrared (IR) remote control. This 1080p60 resolution camera also features wide dynamic range with backlight compensation, and its image mirror and image rotation functions so you can electronically orient the image to adjust for the position in which the PTZ has been situated. It comes with 16 programmable position presets including pan, tilt and zoom positions, allowing the camera to quickly move between predetermined camera positions using the remote, or available PTZ controller. For multi-camera shoots, its onboard tally light can indicate when it is the active camera. In addition, it features a built-in IR cut filter for low light shooting, and supports real time position reporting by per frame, delivering useful information for virtual studio applications. It offers Sony VISCA protocol for PTZ control support, using RS-422 protocols via the unit's RJ-45 port.

Includes

  • PTC-150W Unit (White)
  • IR Remote Controller
  • Mounting Bracket (for table or ceiling)
  • Mounting Bracket (for main unit)
  • Mounting Screws
  • DC 12V Power Adapter
  • Power Cord

Features

  • HD Resolution: 1/2.8" High Definition 2.14 MegaPixels progressive CMOSsensor
  • 30x optical zoom (f=4.3 mm to 94.6 mm)
  • High definition formats supported: 1080/ 9.94p, 1080/50p, 1080/59.94i,1080/29.97p, 1080/25p, 1080/50i, 720/59.94p, 720/50p
  • Standard definition formats supported: 480/59.94p, 480/59.94i, 576/50i
  • Dehazing technology allows the foggy or hazy images to be clear and sharp
  • Applied with Digital Noise Reduction Function (DNR) to reduce the noiseand enable clearer image under low light conditions
  • Position coordinate report by real time per frame
  • Video Output: HD-SDI + CVBS + HDMI synchronously
  • Tally LED Design (IR / RF Controller/ RS-422/ DVIP Operation)
  • Supports SONY VISCA Protocol Keyboard
  • Supports DVIP Control Protocol (F/W update to activate)

Specifications

  • Video:
    • Image Pickup Element: 1/2.8” type progressive scan CMOS sensor
    • Effective Picture Elements: Approx. 2.14 Mega pixels
    • Resolution: HD / FHD / SD (CVBS only)
    • Signal System:
      • HDMI & SDI: 1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p, 1080/50p, 1080/50i, 1080/25p, 720/50p
      • CVBS: 480i, 576i
    • S/N Ratio: 50 dB
    • Min. Illumination:
      • Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
      • B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
    • Electric Shutter: 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000 sec
    • Gamma Control: Off / Normal / Standard Mode 1-4
    • Iris Control: Auto / Manual
    • Digital Noise Reductions: 0 - 5
    • On-Screen Display (OSD): English
    • White Balance: AWB / MWB / One push WB / Outdoor / Indoor / Fluorescent
    • AGC / Gain Control:
      • Auto / Manual (0 to 39 step)
      • Max. Gain Limit (9 to 39 step)
    • Zoom Ratio: 30x Optical Zoom
    • Mirror: OFF / Horizontal / Vertical / H+V
    • Camera Title (OSD): ON / OFF
    • Color Bar: On / Off (Full Bar)
    • Focus Mode: Auto / Manual
    • Day & Night (IR): Auto / Color / BW
  • Pan / Tilt / Zoom:
    • Pan/Tilt Range: Pan: 270° , Tilt: +90° to -20°
    • Pan/Tilt Speed:
      • Manual: 1~150°/Sec
      • Swing: 1~150°/Sec
    • Initialization Time: 30 sec
    • Coordinate Report: P, T, Z (While Panning , Tilting and Zooming ) by frame
  • Lens:
    • Lens Type: 30x Optical Zoom
    • Focal Length
      • F=4.3 mm (WIDE) to 129 mm (TELE)
      • F1.6 to F4.7
    • Angle of View (Horizontal): Approx. 63.7 degrees (WIDE END) / 2.3 degrees (TELE END)
  • Video Output:
    • Video Output:
      • HDMI (V1.3) x 1
      • HD-SD-SDI x 1
      • CVBS x 1
    • Video Format Output: 1 Vp-p / 75 Ohms
  • Control:
    • Protocol: VISCA / DVIP
    • Remote Control: RS-422 & DVIP by RJ-45 interface
    • Remote Controller: RMC-180
    • F/W Update: USB 2.0
    • IR Control: One IR controller
  • Others:
    • Moving Noise while Tilt: 25dB
    • Moving Noise while Pan: 25dB
    • Operating Temperature: 0°C ~ 50°C
    • Storage Temperature: - 10°C ~ 60°C
    • Operating Humidity: 10 % to 80 % (no condensation)
    • Certifications: CE / FCC Class A
    • Weight: 2.76 Kg (Camera Device Only)
