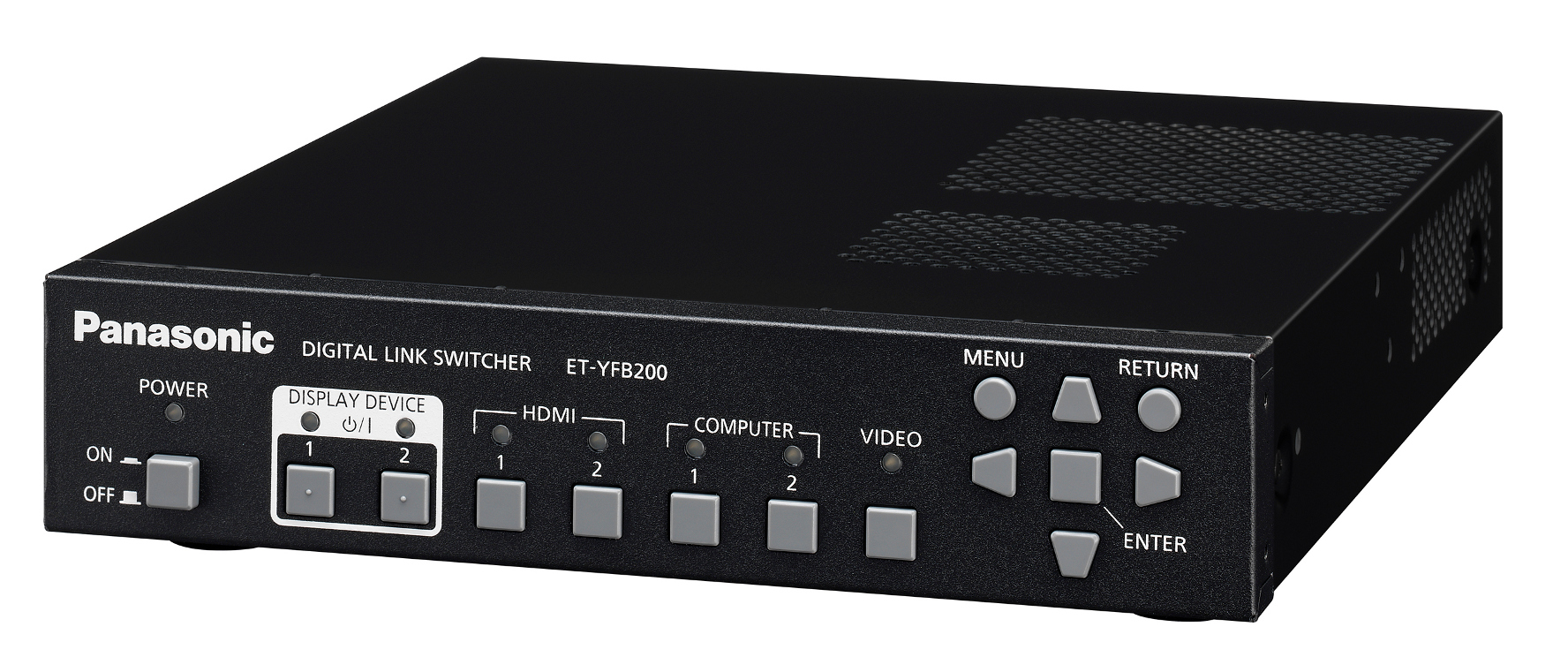

Panasonic ET-YFB200G


Our Price: $1,679.00
List Price: $1,999.00
You save 16%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Now you can have efficient AV control integration with Panasonic's ET-YFB200G Digital Link Switcher. This device allows seamless control and media distribution to a main projector and sub-display, or where content is transmitted to two separate rooms. The ET-YFB200G supports edge blending for large-format dual-unit projection in large venues or at sporting events along with monitoring capability from control room on PC via DVI-D output. In addition to operating with the control panel of this device and the remote control of the display connected with the DIGITAL LINK, setting, adjustment, and status check can be performed by accessing this device from a computer connected to the network.

With Panasonic's ET-YFB200G and the communication method “DIGITAL LINK”, which has added functions unique to Panasonic based on the communication standard “HDBaseT™” formulated by HDBaseT Alliance, and it can send image, audio, Ethernet, and serial control signals through one twisted pair cable of CAT5e or higher. By connecting to the DIGITAL LINK or the HDBaseT™ compliant display (projector or flat panel display) or receiver, it can perform long-distance transmission up to 100m (328'1").

In addition to 2 sets of output in the DIGITAL LINK, this device also supports the DVI-D output. Furthermore, it is possible to output video and audio signals with the DIGITAL LINK to 3 or more displays by performing cascade connection (multiple device connection) of this device. However, the misalignment of the displayed image or the played back audio may be obvious when the number of displays connected in cascade increases.

Panasonic ET-YFB200G Switcher Includes:

  • AC adaptor
  • Three power cords (2 m)
  • AC power cord holder
  • AC power cord holder screw
  • Two mounting brackets for rack installation
  • Six countersunk screws
  • Four legs
  • Four screws for installing legs
  • Plug for 3-pin 3.5 mm detachable terminal block

Panasonic ET-YFB200G Switcher Features:

  • Simple and Cost-Effective Multi-Output Switching
  • Easy Operation and Installation
  • High-Fidelity Digital Signal Transmission

Panasonic ET-YFB200G Switcher Specifications:

  • Power supply: DC 16 V (DC input terminal)
  • Power consumption (use with supplied AC adaptor): 32 W[0.15 W with power off] (including power consumption of AC adaptor)
  • AC adapter:
    • Input: 100 V–240 V AC (1.5 A–0.8 A)
    • Output: DC 16 V, 3.75 A
  • Terminals:
    • Computer 1 In: D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 2)
    • Computer 2 In: D-sub HD 15-pin (female) x 1
    • Video In: Pin jack x 1 (composite video)
    • Audio In 1: M3 (L-R) x 1
    • Audio In 2: M3 (L-R) x 1
    • Audio In 3: M3 (L-R) x 1
    • Digital Link Out 1: RJ-45 x 1 for DIGITAL LINK connection (video, audio and control signals), HDBaseT™ compliant
    • Digital Link Out 2: RJ-45 x 1 for DIGITAL LINK connection (video, audio and control signals), HDBaseT™ compliant
    • DVI-D Out: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • Serial In: 3-pin 3.5 mm detachable terminal block for external control (RS-232C compliant)
    • Audio Out: M3 (L-R) x 1 (variable)
    • Remote In: D-sub 9-pin (female) x 1 for external control (parallel)
    • LAN In: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compatible with PJLink
    • HDMI 1 In:
      • HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
        • audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32kHz)
    • HDMI 2 In:
      • HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
        •  audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1kHz, 32 kHz)
  • Dimensions (W x H x D): 210 x 44 x 250 mm (8 9/32? x 123/32? x 9 27/32?) (not including protruding parts)
  • Weight: Approximately 1.3 kg (2.87 lbs)
  • Operating environment:
    • Operating temperature: 0-40 °C (32-104 °F)
    • operating humidity: 20-80 % (no condensation)
