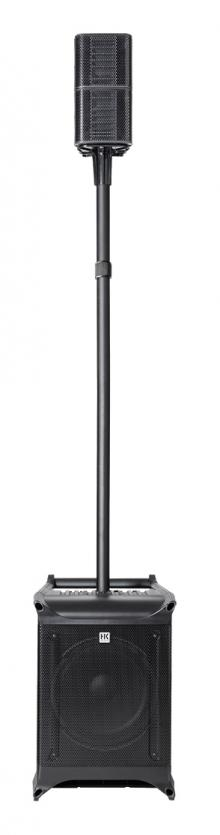

Product Overview
The HK Audio LUCASNANO608i is an all-in-one PA that features an onboard iPad-enabled mixer. This PA system features eight channels, reverb programs, intuitive EQ and compressor functions, and convenient Bluetooth streaming.
HK Audio LUCASNANO608i Features:
- Integrated wireless iPad-enabled mixer
- Eight-channel digital mixer with professional features
- Simple handling; assembles in seconds
- Bluetooth: audio streaming and wireless connection to the app for iPad
- Flexible: can be used as a mono PA, a 2.1 setup or in Twin Stereo
- Two satellites with 4.5" broadband woofer and 1" tweeter
- 10" subwoofer
- Low-resonance bass enclosure featuring “Anti-Resonance Bracing”
- 130 dB maximum SPL
- Multicell Transformer technology
- 460-watt power amp
- Transport bay for the satellites located in the subwoofer
HK Audio LUCASNANO608i Specifications:
- LUCAS NANO 608i System
- Product Class: Mono System / 2.1 system
- Frequency response +/- 3 dB: 43 Hz - 20 kHz
- Power Rating: 460 W (300 W + 2x 80 W) Class D (EIA)
- Active protection circuits: MulitBand limiter, Subsonic filter, Thermo protection, Overload protection
- Inputs: 4x XLR Combo, 2x 1/4", RCA/Mini jack 3.5mm, Bluetooth audio streaming, Link In for Twin Stereo Mode
- Outputs: Speaker Out, Easy-Click, Rec Out, Footswitch / Aux Send Out, Link Out for Twin Stereo Mode
- Special Features: 8-channel mixer with built-in DSPpreamp and effects section, Bluetooth audio streaming, Bluetooth remotecontrol for additional DSP functions via the LUCAS NANOREMOTE app for Apple iPad
- Enclosure: Surface-coated Polypropylene
- Weight: 16.3 kg (36 lbs)
- NANO 608i Satellite
- Max SPL:
- 119 dB (Single Satellite)
- 124 dB (Satellite Array) @ 10 % THD, half space
- Frequency response +/- 3 dB: 190 Hz - 20 kHz
- Dimensions (W x H x D): 14.5 x 14.5 x 13.5 cm
- Weight: 1.2 kg (2.6 lbs)
- NANO 608i Subwoofer
- Max SPL: 120 dB @ 10 % THD, half space
- Max SPL peak: 123 dB @ 10 % THD, half space
- Frequency response +/- 3 dB: 43 Hz - 190 Hz
- LF Speaker: 10"
- Pole mount: M33 for the (signal-routing) S-ConnectPole LN, a speaker pole adapter sleeve (M33 to M20) is included
- Dimensions (W x H x D): 35 x 49 x 47 cm
- Weight: 13.9 kg (30.8 lbs)
