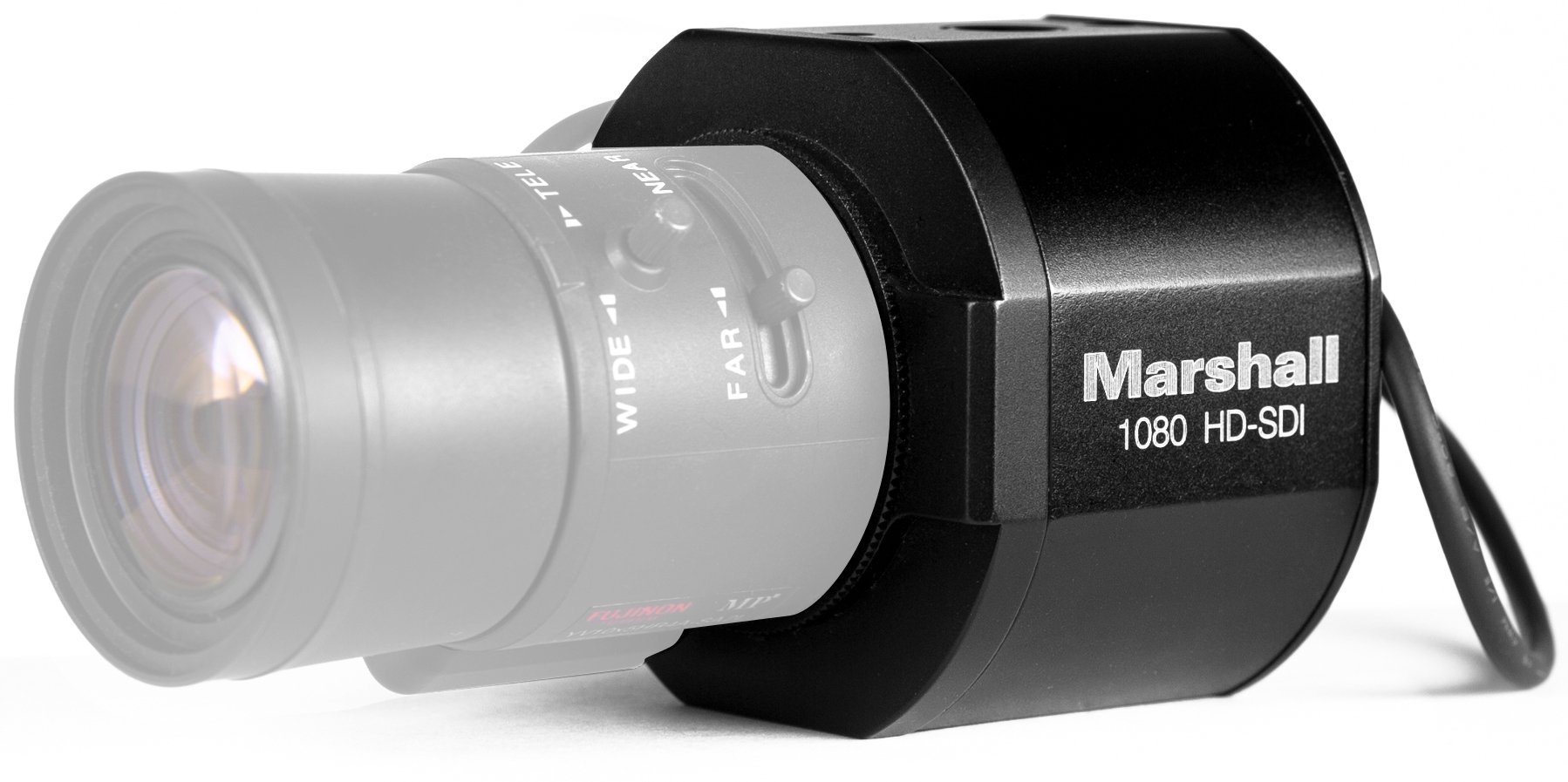

Marshall Electronics CV345-CS
Compact 2Mp Full HD (3G/HD-SDI) Video (Non-Broadcast) Camera with HDMI Out

OUR PART #:  CV345-CS

Marshall Electronics' Compact CV345-CS HD Pro-Series Camera includes the convenience of a 3.5mm TRS input with 2.5V of power.
Learn More
Our Price: $599.00
List Price: $699.00
You save 14%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV345-CS
Qty:
In Stock

Similar Products

Marshall Electronics' Compact CV345-CS HD Pro-Series Camera includes the convenience of a 3.5mm TRS input with 2.5V of power. It's built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor delivering improvements in all aspects over previous models. It captures high quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of up to 1920x1080i, 1920x1080p at frame-rates of 60/50/30/25fps.

Marshall Electronics CV345-CS Compact Camera Features:

  • 2.5 Megapixel 1/3" CMOS sensor
  • CS/C-Mount with DC-Auto Iris (lens[es] sold separately)
  • Resolutions/Frame Rates: 1920x1080p 60/50/30/25, 1920x1080i 60/50, 1280x720p 60/50/30/25fps
  • Lemo-style (I/O) connector contains: RS-485(+/-), 12V power connector and TRS microphone input with 2.5V power supplied
  • 3G/HDSDI (BNC) and HDMI (full size-v1.3) built into rear panel
  • Captures sharp and vivid color images at 0.2 lux (low-light sensitive)
  • WDR function supports high speed and high sensitivity to various light sources
  • Audio Mic 3.5mm TRS input embedding with 2.5V power (embeds on 3G/HDSDI and HDMI)
  • OSD Menu Joystick, RS-485 (Pelco/Visca), Free Downloadable Software Control
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • Includes power supply

Marshall Electronics CV345-CS Compact Camera Specifications:

  • Sensor:
    • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
    • Scanning System: 16:9 Progressive
    • Sync. System: Internal
    • Effective Pixel: 1920(H) x 1080(V)
    • Min. Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005 Lux (DSS on)
    • Horizontal Resolution: 1000TVL
  • Lens: CV345 (CS/C mount w/ DC-Auto Iris) - variable lens options
  • Functions:
    • Back Light Compensation: WDR (Wide Dynamic Range) / BLC (Back Light Compensation), HLC (High Light Compensation)
    • Exposure: Auto / Manual
    • White Balance: Auto (3,000°K~8,000°K) / ATW(1,900°K~11,000°K) / Manual
    • Day & Night System: AGC (Auto Gain Control) / TDN(ICR)
    • Electronic Shutter:
      • NTSC: 1/30~1/30000,
      • PAL: 1/25~1/30000, DSS ( ~X64)
    • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps):
        • 1920x1080p @ 50/60fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 25/30
        • 1920x1080i @ 50/60fps
        • 1280x720p @ 50/60
    • HD-SDI (+optional Audio):
      • 800mVp-p, 75Ohms unbalanced generator (single-ended)
    • HDMI (+Audio) Output (HDMI type A female):
      • HDMI 1.3 compliant:
        • 1920x1080p @ 50/60 >1920x1080p @ 25/30 >1920x1080i @ 50/60fps >1280x720p @ 50/60
  • Audio Input
    • MIC Input:
      • Mic Level (1Vrms). 2.5V Mic bias
      • 16-, 20-, 24-, 32-bit audio format. 48KHz sample rates
      • Gain: -12dB ~ 59.5dB
  • General:
    • Operating Temperature: -10°C ~ 50°C
    • Power Input: 12VDC, power supply included
    • Power consumption: Max 6W
    • Dimensions (WxHxD): 60 x 57 x 45mm
    • Weight (Net): Approx. 160 g
  • Control Interface:
    • RS-485:
      • PELCO-P/D, SONY-VISCA protocol
      • 8-bit data, 1 stop bit, no parity, 2400~115200bps
    • Camera Control Software Interface Screen Capture:

Free POV Camera Control Application
