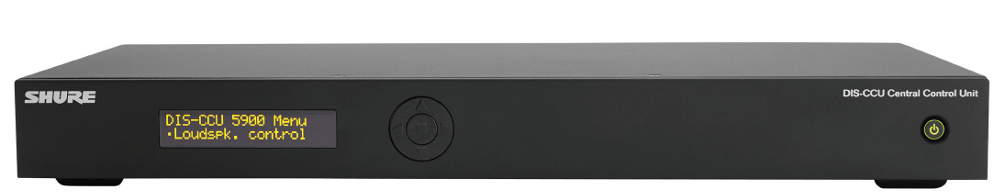

Shure DIS-CCU
Central Control Unit For DDS5900/DCS6000

OUR PART #  DIS-CCU

Our Price: $1,075.00
List Price: $1,290.00
You save 17%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Shure DIS-CCU is a Central Control  Unit for the Shure DDS 5900 and DCS 6000 microphone systems. It distributes digital audio, control data, and power to chairman, delegate, and interpreter units over a standard shielded CAT 5e (or higher) cable in serial ‘daisy-chain’ topology using the proprietary DCS-LAN protocol.

The DIS-CCU includes 2 analog audio inputs for external audio sources, and 8 analog audio outputs for connection to a videoconferencing system, audio/video recorder, sound reinforcement system, or wireless language distribution system.

The DIS-CCU distributes the ‘floor’ audio mix plus interpretation channels to each discussion or conference unit. Up to 8 microphones may be active simultaneously. Four different microphone operating modes are supported: Automatic, First-In/First-On (FIFO), VOX (voice activated), and Manual.3

A web browser interface allows microphone control and system configuration using a computer or tablet. Separate web addresses are provided for Administrator, Chairman, and Display functions. A TCP/IP connection is provided for connection to a third-party media control system.

Shure DIS-CCU Features:

  • Fully digital audio transmission of floor plus 31interpretation channels and 8 conference microphone audio channels in a singledigital bus cable structure using shielded CAT5e cables
  • OLED display on the front enables the user to setupbasic system configurations in terms of maximum number of speakers/requests,microphone operation mode, etc.
  • TCP/IP Ethernet connection for web browser control,integration with optional SW 6000 software suite, or third party externalcontrol system (AMX, Crestron, etc.)
  • Multi-language web browser for system configuration,microphone/request list control and basic operational parameters via tablet orcomputer
  • Built-in seat table for attaching seat numbers andnames to units using the web browser
  • 2 Analog audio inputs
  • 8 Analog audio outputs for distribution of audio fromeight groups of units, the floor channel or the interpreter channels
  • Connection for Emergency Evacuation Message (EEM) isavailable using 'Audio In 2' and a contact closure switch
  • Firmware upgrade of the entire DCS 6000 system ispossible via a PC
  • Powers up to 60 units without additional power supply(depending on unit type)
  • Long life, low-noise built-in temperature regulatedfan
  • Horizontal orientation of air stream for easystacking of units in 19" racks
  • External control possible via a 'simple to use'protocol for external control over Ethernet
  • Using DCS-LAN, a proprietary high-speed all-digitalaudio channel, data and power bus
  • Four DCS-LAN chains powered by one external PS CU power supply

Shure DIS-CCU Specifications:

  • Mounting: Tabletop; standard 19" rack
  • Dimensions (H x W x D): 1.75 x 16.8 x 7.2 in (44.4 x426 x 186 mm)
  • Color: Black
  • Weight: 6.17 lbs (2.8 kg)
  • Temperature Range:
  • Storage: -20° to 60° C, 10 - 80 % humidity
  • Operation: 5° to 40° C, 35 - 80 % humidity
Power Supply For DIS-CCU, CU 6105, And CU 6110Shure PS-CCU-US Power Supply For DIS-CCU, CU 6105, And CU 6110

The Shure PS-CCU is a power supply designed for use with the DIS-CCU, CU 6105, and CU 6110 central control units. One PS-CCU Power Supply is included with select DIS-CCU models and the PI-6000-XX Power Kit. In connection with RC 6000 ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$775.00List Price: $930.00You save 17%!
