Product Overview

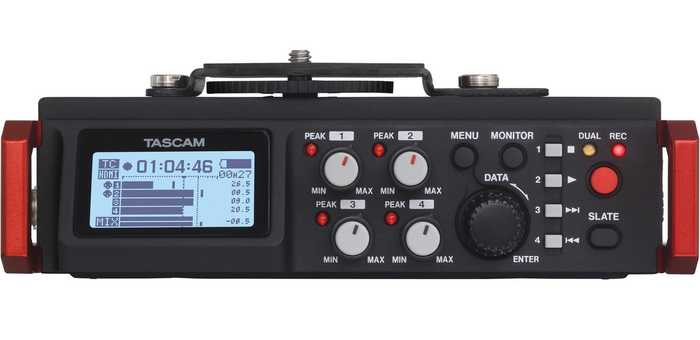

TASCAM's flagship multi-track recorder for professional single-shooter video production, the DR-701D is a linear PCM Recorder/Mixer for DSLR cameras. For location reference, a timecode generator is included which can be jam-synced from a SMPTE generator, camera, or smart slate. It also features an HDMI in and out which enables a DSLR camera to start recording on both devices, and video clock prevents drift between sound and picture.
It has 4 mic inputs that can be individually recorded and mixed to a stereo track, thus providing for a total of 6-track recording. For additional tracks, multiple units can be cascaded together (additional units sold separately). The lightweight-yet-rigid chassis is fabricated from a magnesium alloy. Tripod mounts on the both the top and bottom of the device allow it to mount under a camera, affix to a follow-focus cage, or be implemented stand-alone.
Packing high-quality multitrack recording into a package compact enough for use with any camera, this exceptional recorder is great for the needs of all film/video professionals.
Applications
Professional filmmakers • Television producers • Advertisers • Documentarians • More
Includes
- DR-701D unit
- USB cable
- Camera attachment bracket screw-hole covers
- Owner's Manual
Features
- 6-track recording (4 tracks + L-R stereo mix)
- Camera sync using HDMI video clock synchronization
- Cascade feature for additional track recording
- SMPTE timecode stores time data in recorded audio files
- Lightweight-yet-rugged magnesium-alloy chassis
- High-quality HDDA (High Definition Discrete Architecture) mic preamps
- LED lights have high visibility even in direct sunlight
- Multi-band limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
Specifications
- Recording media:
- SD card(64MB to 2GB),
- SDHC card(4GB to 32GB),
- SDXC card(48GB to 128GB)
- Recording format
- WAV: 44.1k/48k/96k/192kHz, 16/24-bit
- BWF: 44.1k/48k/96k/192kHz, 16/24-bit
- Number of input channels
- 44.1k/48k/96kHz - 4 maximum
- 192kHz - 2 maximum
- Number of recording tracks
- 44.1k/48k/96kHz - 6 maximum
- 192kHz - 2 maximum
- Analog audio inputs - *The maximum input level the level that the input knob can be adjusted and a digital full-scale(0dBFS) signal can be input without distorting.
- *The minimum input level is the level that the input knob can be adjusted and a -20dBFS signal can be input.
- IN 1, IN 2, IN 3, IN 4: XLR can provide phantom power
- Connectors:
- XLR-3-31 (1:GND, 2:HOT, 3:COLD)
- 6.3mm(1/4")standard TRS jacks(tip:HOT, Ring:COLD, Sleeve:GND)
- Input gain: ”LOW”/”MID”/”HI”/”HI+”
- Input impedance: 2kΩ
- Phantom power: 48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
- Maximum input level: +4dBu
- Minimum input level: -72dBu
- MIC input gain TRIM MAX
- LOW +20dB
- MID +40dB
- HI +52dB
- HI+ +64dB
- Input gain: "LINE"
- Input impedance: 10kΩ or lower
- Nominal input level: +4dBu
- Maximum input level: +24dBu
- EXT IN 1/2
- Connector 3.5mm(1/8")stereo mini jack (can provide plug-in power)
- Input impedance 10k ohms
- Maximum input level +10dBV
- Minimum input level -50dBV
- MIC input gain TRIM MAX
- LOW: +3dB
- MID +11dB
- HI +26dB
- HI+ +38dB
- DR-701D IN
- Connector: 3.5mm(1/8") stereo mini jack
- Input impedance: 10kΩ
- Nominal input level: -10dBV
- Maximum input level: +6dBV
- Analog audio outputs
- LINE OUT
- Connector: 3.5mm(1/8")stereo mini jack
- Output impedance: 200Ω
- Nominal output level: -14dBV
- Maximum output level: +6dBV
- DR-701D OUT
- Connector: 3.5mm(1/8")stereo mini jack
- Output impedance: 200Ω
- Nominal output level: -44dBV
- Maximum output level: +6dBV
- PHONES
- Connector: 3.5mm(1/8") stereo mini jack
- Maximum output: 50mW + 50mW
- Control inputs/outputs
- HDMI IN/OUT
- Connectors: Type A receptacle
- USB
- Connector: Micro-B
- Format: USB2.0 HIGH SPEED mass storage class
- TIMECODE IN
- Connector: BNC
- Signal voltage amplitude: 0.5Vp-p to 5Vp-p
- Input impedance: 10kΩ
- Format: SMPTE 12M-1999 compliant
- REMOTE
- Connector: 2.5mm TRS jack
- Power: 4 AA batteries(Alkaline, NI-MH or lithium),
- AC adapter: (TASCAM PS-P515U, sold separately),
- External battery pack: (TASCAM BP-6AA, sold separately)
- Power consumption: 6.5W (maximum)
- Current consumption (USB bus power): 1.3A (maximum)
- Battery operation time (continuous operation): 2ch WAV, 48kHz, 16bit rec
- *When using phantom power, the operation time might be reduced depending on the mic being used.
- DR-701D
- Lithium (Energizer ULTIMATE LITHIUM):
- About 7:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
- About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
- About 3:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
- NI-MH batteries (eneloop)
- About 4:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
- About 2:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
- About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
- Alkaline batteries (EVOLTA)
- About 3:45 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
- About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
- About 1:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
- DR-701D + BP-6AA ; *BP-6AA is using the alkaline batteries (EVOLTA).
- Lithium batteries (Energizer ULTIMATE LITHIUM)
- About 12:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
- About 7:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
- About 5:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
- NI-MH batteries (eneloop)
- About 9:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
- About 7:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
- About 4:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
- Alkaline batteries (EVOLTA)
- About 9:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
- About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
- About 3:45 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
- Dimensions: 169(W)×57.3(H)×113.5(D)mm (with the top adapter attached)
- Weight: 654g (including batteries) / 567g (without batteries)
- Operating temperature: 0˚C to 40˚C
- Audio performance
- Frequency response
- 20-20kHz +0.5/-1dB(LINE IN to LINE OUT, Fs48kHz, JEITA)
- 20-40kHz +0.5/-1dB(LINE IN to LINE OUT, Fs96kHz, JEITA)
- 20-80kHz +0.5/-5dB(LINE IN to LINE OUT, Fs192kHz, JEITA)
- Distortion: 0.007% or less (MIC IN to LINE OUT Fs44.1k/48k/96k/192k Hz, JEITA)
- S/N ratio: 100dB or more (MIC IN to LINE OUT, -10dBu input, 1kHz, Fs44.1k/48k/96k/192k Hz, JEITA)
- Equivalent input noise: -124dBu or less, * Based on JEITA CP-2150
- Recording Duration: The table below shows the maximum recording time on SD/SDHC/SDXC cards of different capacities for different file formats for recording.
- File format(recording setting): @ 8GB 32GB 128GB
- WAV/BWF 16-bit(2ch)
- 44.1kHz 12:35 50:23 201:35
- 48kHz 11:34 46:17 185:13
- 96kHz 5:47 23:08 92:36
- 96kHz 2:53 11:34 46:18
- WAV/BWF 24-bit(2ch)
- 44.1kHz 8:23 33:35 134:24
- 48kHz 7:42 30:51 123:28
- 96kHz 3:51 15:25 61:44
- 96kHz 1:55 7:42 30:52
- The recording times shown above are estimates. They might differ depending on the SD/SDHC/SDXC card in use.
- The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the SD/SDHC/SDXC card.
- If recorded in mono in WAV files, the maximum recording time will be double the figures above.
- For dual and 4-channel recording in WAV/BWF format, the recording times are about half those shown above.
