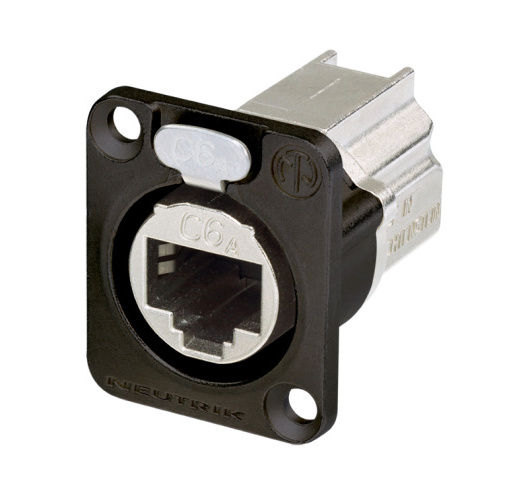

Neutrik NE8FDX-P6-B
CAT6A Shielded Panel Connector with Black Housing


Neutrik's NE8FDX-P6-B is a shielded, D-shape CAT6A feedthrough panel connector in a black housing.
Learn More
Our Price: $16.43
List Price: $22.00
Save up to 37% when you order by quantity!
  • Buy 25: $14.84 each.
  • Buy 50: $14.31 each.
  • Buy 100: $13.78 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Neutrik NE8FDX-P6-B
Similar Products

Neutrik's NE8FDX-P6-B is a shielded, D-shape CAT6A feedthrough panel connector in a black housing.

Neutrik NE8FDX-P6-B CAT6A Panel Connector Features:

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection

Neutrik NE8FDX-P6-B CAT6A Panel Connector Specifications:

Electrical Specifications

  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 0.5 GOhms
  • Rated current per contact: 1.5 A
  • Transmission performance: CAT6A, acc. TIA/EIA rating; Class EA, acc. IEC/ISO/EN rating
  • Power over Ethernet: PoE+ acc. IEEE 802.3at

Mechanical Specifications

  • Lifetime: > 1000 mating cycles
  • Wiring: Feedthrough
  • Locking device: Latch lock
  • Mounting direction: Front mounting

Material Specifications

  • Contact plating: Au
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black

Environmental Specifications

  • Flammability: UL 94 V-0
  • Temperature range: -40°C to + 70°C (-40ºF to +158ºF)
