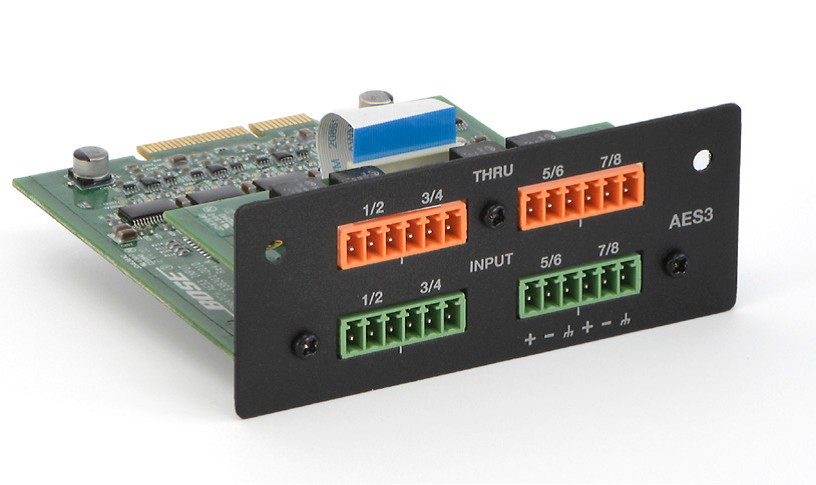

Bose PowerMatch AES3 8-Channel Input Card
For PowerMatch Configurable Power Amplifiers

OUR PART #:  638301-0010

Call for price! Not available online.

Similar Products

The Bose® AES3 8-channel input card allows PowerMatch® configurable professional power amplifiers to receive up to eight channels from AES3 sources such as mixing consoles and DSPs. The AES3 input card inserts into the digital expansion slot on a PowerMatch amplifier. A buffered pass-through connection on card allows digital audio to be daisy-chained to multiple PowerMatch amplifiers or other AES3 devices.

Bose PowerMatch AES3 8-Channel Input Card Includes:

  • (1) AES3 8-channel expansion card
  • (2) green Euroblock connectors
  • (2) orange Euroblock connectors
  • (4) cable ties
  • Installation guide

Bose PowerMatch AES3 8-Channel Input Card Features:

  • Enables PowerMatch amplifiers to receive digital audio via the AES3 standard from supported mixers and processors
  • In-rack linking of multiple amplifiers using THRU connection
  • Applications:
    • Performing arts venues
    • Hotels and conferencing facilities
    • Religious and worship facilities
    • Health clubs
    • Retail and shopping centers
    • Sports venues
    • Schools and universities

Bose PowerMatch AES3 8-Channel Input Card Specifications:

General Specifications

  • Model Number: 638301-0010
  • Compatible With:
    • Bose PowerMatch PM8500 / PM8500N configurable professional power amplifier
    • Bose PowerMatch PM8250 / PM8250N configurable professional power amplifier
    • Bose PowerMatch PM4500 / PM4500N configurable professional power amplifier
    • Bose PowerMatch PM4250 / PM4250N configurable professional power amplifier

Digital Audio Specifications

  • Channels:
    • (8) input channels, PM4500/N and PM4250/N models must select from
      upper or lower 4-channel groups
    • (8) output channels (buffered AES3 input signals)
  • Format: AES3, balanced, 2 channel
  • Sample Rate / Bit Depth: 48 kHz / 24 bit
  • Sample Rate Input Range: 44.1 kHz – 192 kHz
  • Clock Sync: Internal master / SRC
  • Sample Rate Conversion Time: 1.33 ms (at all sample rates)
  • Thru Audio Latency: 35 ns (buffered only)
  • Maximum Linked Amplifiers: 16
  • Connectors:
    • (2) input pairs: 3.81 mm Euroblock, 6-pin, green
    • (2) thru pairs: 3.81 mm Euroblock, 6-pin, orange

Audio Performance Specifications

  • Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
  • Input Impedance: 110 Ohms
  • Maximum Input Level: 0 dBFS
  • Sensitivity Settings: 0 dBFS (default) / -12 dBFS / -20 dBFS / -24 dBFS

Software Application

  • Bose ControlSpace® Designer™ software v4.1 or later
