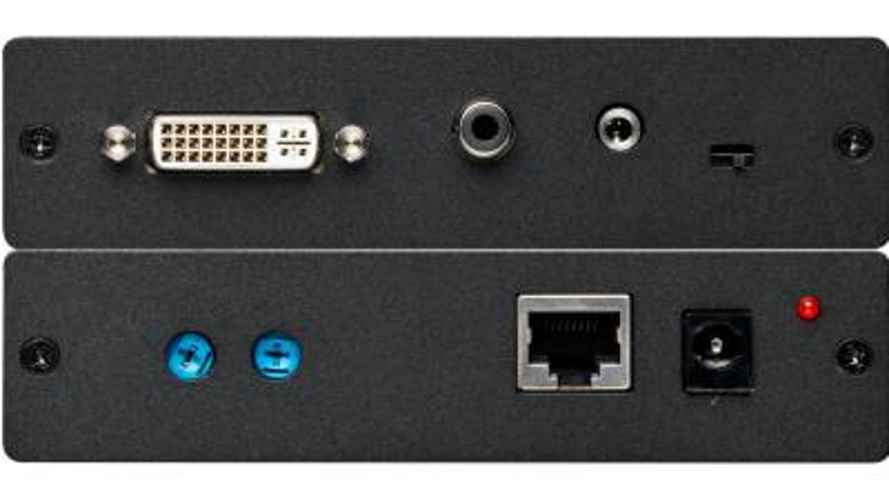

Liberty AV Solutions DL-DVI-R100 100m Receiver
DVI-D with Audio Over Twisted Pair

OUR PART #:  DL-DVI-R100

Liberty AV Solutions DL-DVI-R100 DigitaLinx extender provides a way to transmit non-encrypted DVI-D signals at resolutions up to 1920x1200 and 1080p...
Learn More
Our Price: $199.76
List Price: $221.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Liberty AV Solutions DL-DVI-R100 100m Receiver
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Liberty AV Solutions DL-DVI-R100 DigitaLinx extender provides a way to transmit non-encrypted DVI-D signals at resolutions up to 1920x1200 and 1080p, plus either S/PDIF or analog stereo audio, over Category 5e or 6 cable at great distances. The system is fully compatible with all DVI 1.0 signals and seamlessly integrates the selected audio signal into the signal path. The unique locking power connectors are used to enhance overall system security.

Applications:

  • Uses any Cat 5e or greater twisted pair cabling
  • Extension of DVI-D and audio signals
  • Limited access to power for extenders on both ends
  • Ideal for digital signage, house of worship, commercial

Liberty AV Solutions DL-DVI-R100 Receiver Includes:

  • Installation Guide
  • Wall Mount Power Supply
  • Power Supply Adapters (US, EU, UK, AU)
  • Alignment Screwdriver

Liberty AV Solutions DL-DVI-R100 Receiver Features:

  • DVI-D version 1.0 compliant; not HDCP compliant
  • Resolutions to 1920x1200, 1080p/60Hz up to 100m (328 ft)
  • Requires compatible transmitter (DL-DVI-S)
  • S/PDIF or analog audio transmission
  • Gain and EQ adjustments
  • Locking power supply for security (included)

Liberty AV Solutions DL-DVI-R100 Receiver Specifications:

  • DVI-D Output: One (1) Female DVI-I Receptacle
  • Stereo Audio Output: One (1) 3.5 mm Jack (TRS)
  • S/PDIF (Coaxial) Audio Output: One (1) Female RCA Receptacle
  • 5V DC Power: One (1) Locking Coaxial Barrel (5.5mm OD; 2.6mm ID)
  • Twisted Pair Input: One (1) 8P8C Port (RJ45)
  • Gain and EQ Adjustments: Two (2) Rotary Potentiometers
  • HDTV Video Resolutions: 720p (1280x720), 1080p (1920x1080)
  • VESA Video Resolutions: 800x600, 1024x768, 1152x864, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x900, 1680x1050, 1920x1200
  • Video Compatibility: DVI 1.0 (not HDCP compliant)
  • Audio Compatibility: PCM 2 channel
  • Maximum DVI-D and Audio Distance: 5m (16 ft)
  • Maximum Extended Cable Distance: 100m (328 ft)
  • Enclosure: Extruded Aluminum in Black Powdercoat
  • Dimensions: 123mm x 125mm x 30mm (4.84" x 4.92" x 1.18")
  • Shipping Weight: 0.7 kg (1.54 lbs)
  • Operating Temperature: 0° to +40° C (+32° to +104° F)
  • Operating Humidity: 20% to 90%, Non-condensing
  • Storage Temperature: -10° to +60° C (+14° to +140° F)
  • Storage Humidity: 20% to 90%, Non-condensing
  • Power Supply Input: 100V-240VAC / 50-60 Hz / 0.1A
  • Power Supply Output: 5VDC / 2.6A
  • Power Consumption: 13 watts (max)
  • ESD Protection: ±15 kV
  • Extender Regulatory: FCC, CE, RoHS
  • Power Supply Regulatory: UL, CUL, CE, PSE, GS, RoHS
