Lectrosonics Venue 2
Modular Receiver System, Tunes Bands B1, C1, D1

OUR PART #:  VRM2WBM

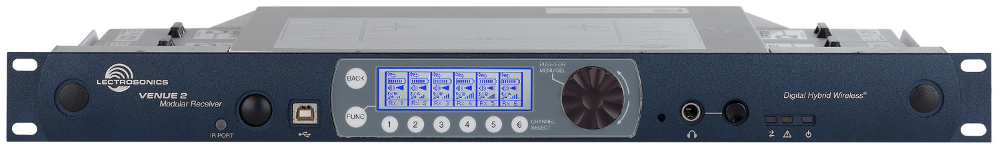

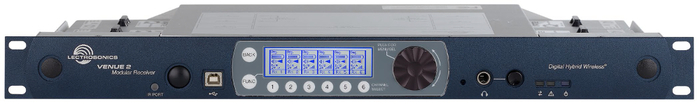

The Lectrosonics Venue2 is a modular receiver system.
Learn More
Our Price: $2,459.00
List Price: $3,435.00
You save 28%!
Write the first review.
Lectrosonics Venue 2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Lectrosonics Venue2 is a modular receiver system. It effectively deals with a congested RF spectrum with a variety of options that allows a system configuration to be idealized for a particular installation or application.

The receiver is comprised of several components: master rack mount host assembly, up to six receiver modules, and software for setup and control. This receiver can be operated separately.

Lectrosonics VRM2WBM Features:

  • Six-channel modular configuration
  • Ratio or Antenna Phase diversity reception
  • 3-block tuning for up to 76 MHz and 3072 synthesizedUHF frequencies per receiver module
  • IR port for quick transmitter setup
  • DSP emulation modes for compatibility with analogwireless systems in addition to the Digital Hybrid mode
  • iQ™ dynamic tracking filters for enhanced RFperformance
  • Wireless Designer™ setup and control software included
  • Talkback function with select transmitters
  • Ethernet, USB and RS-232 computer interface ports

Lectrosonics VRM2WBM Specifications:

  • VRM2WBM: Tunes to bands B1, C1, D1**
  • Band B1: 537.600 - 614.375 MHz* (blocks 21, 22, 23)
  • Band C1: 614.400 - 691.175 MHz (blocks 24, 25, 26)
  • Band D1**: 691.200 - 767.975 MHz (blocks 27, 28, 29)
  • Frequency Stability: +/- 0.001 %
  • Sensitivity (20 dB Sinad): 0.9 uV
  • Rejection: 85 dB
  • FM Detector: Digital pulse counting detector @ 300 kHz
  • Frequency Response: 32 Hz to 20 kHz (+/-1dB), overallsystem (400 Series mode)
  • THD: 0.2% (typical) (400 Series mode)
  • Input Dynamic Range: 125 dB (with full transmitterlimiting)
  • Audio Output Level: -15 dBu to +8 dBu, in 1 dBincrements
  • LCD: High resolution graphical display
  • Power Requirements: 10 VDC / 2 A to 18 VDC / 1.2 A
  • Weight: 4.4 lbs (1984 grams) with six modules
  • Dimensions (W x H x D): 19 x 1.75 x 7.75 in (48.26 x 4.45 x 19.67 cm)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
