Bogen Communications ADP1
Analog Door Phone


A convenient remote, weather-resistant, hands-free two-way terminal device for telephone systems...
Learn More
Our Price: $156.04
List Price: $189.93
You save 18%!
Write the first review.

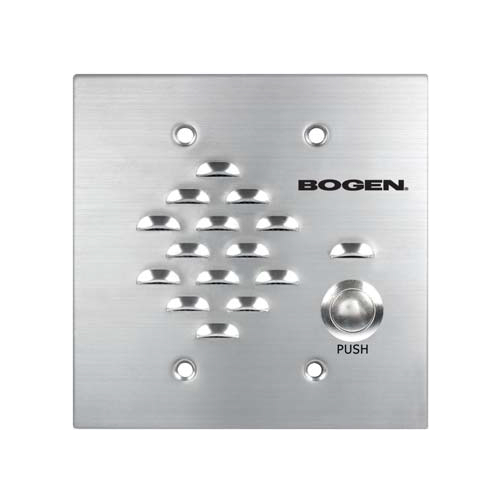

Bogen Communications ADP1
Usually ships in 7-14 business days.
Need it sooner? Call us!

A convenient remote, weather-resistant, hands-free two-way terminal device for telephone systems, the Bogen Communications ADP1 is an Analog Door Phone that's telephone line powered and provides adjustable microphone and speaker volume levels as well as a selectable Auto Answer feature to allow for remote audio monitoring of the area where it's located. The ADP1 also includes an adjustable and defeatable call timer and can respond to forward disconnect signals. It has a heavy-gauge stainless steel gasketed faceplate and plastic cone speaker with puncture-resistant screen, and is designed to fit in most indoor and outdoor dual gang electrical boxes (user supplied). A dress bezel is included with the unit for trimming out rough openings in flush mount applications.

Bogen Communications ADP1 Features:

  • Analog ringdown line operations
  • Suitable for indoor or outdoor station, door, or gate communication
  • Telephone line powered
  • Two-way, hands-free communication
  • Weather-resistant
  • Vandal-resistant brushed stainless steel face plate with mounting gasket and heavy-duty call button
  • Plastic cone speaker with puncture-resistant, protective screen
  • Rough opening dress bezel for flush mount installations
  • Adjustable microphone and speaker volume
  • Adjustable call timer duration
  • Defeatable call timer
  • Responds to forward disconnect
  • Selectable Auto Answer feature allows remote audio monitoring of ADP1 location
  • "Active" LED for use when installing and troubleshooting

Bogen Communications ADP1 Specifications:

  • Power: Telephone line powered (18 V DC / 20 mA minimum)
  • Timer Duration: 15 seconds to 2 minutes
  • Forward Disconnect: 300 ms minimum loop current loss
  • Ring Voltage: 40 V AC RMS minimum
  • REN: 0.7A
  • Connections: 2-position pluggable terminal block Earth Ground lug
  • Dimensions (W x H x D):
    • Without bezel: 5" x 5" x 1.75"
    • With bezel: 6.25" x 6.25" x 1.75"
  • Product Weight: 4 lbs
