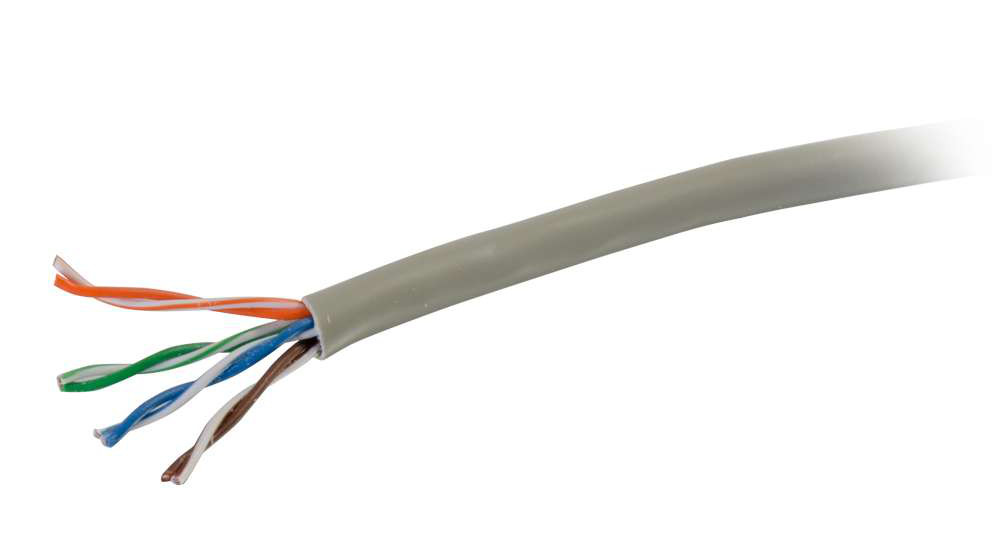

Cables To Go 56020 CAT6 Bulk Unshielded (UTP) 1000 ft Ethernet Network Cable with Solid Conductors, Grey

The CAT6 Bulk Unshielded Cable (model no. 56020) from Cables To Go is a 1000-foot plenum rated Ethernet cable, suitable for creating custom length horizontal network cable runs. This cable offers an exceptional value for jobs that require standards compliance at a cost-effective price and meets all of the ANSI/TIA-568-C.2 specifications. It also offers other features that make it easier to use, save on installation time and expense, and ensure product quality during the installation. The cable features markings in feet and meters, which marks the exact amount of cable remaining in the box, and a wide opening for the payout design, which reduces tension on the wire as it is pulled during installation.

Applications

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3af
• PoE+ - IEEE 802.3at Type 1 and 2
• ATM and token ring

C2G CAT6 Bulk Unshielded (UTP) Network Cable Features:

• Plenum, CMP-Rated jacket
• Meets ANSI/TIA-568-C.2 specification
• Foot and meter marked to show the amount of cable left in the box
• Alpha numeric code printed every 2 feet for easy identification of cable runs

C2G CAT6 Bulk Unshielded (UTP) Network Cable Specifications:

• General Specifications
  • Model Number: 56020
  • Color: Grey
  • Length: 1,000 ft (304.8 m)
  • Jacket Rating: Plenum
  • Warranty: Lifetime
  • Weight: 23.750 lbs (10.8 kg)
• Wire Specifications
  • Pair Count: 4
  • Conductor: Solid annealed copper
  • Wire Gauge: 23AWG (0.57 mm)
  • Insulation: FEP
  • Insulation Colors:
    • Pair 1: White/Blue, Blue
    • Pair 2: White/Orange, Orange
    • Pair 3: White/Green, Green
    • Pair 4: White/Brown, Brown
  • Jacket: CMR Flame retardant, low smoke PVC
  • Characteristic Impedance: 100 ± 15O
  • Nominal Velocity of Propagation: 73%
• Performance Compliance
  • UL 444
  • CSA C22.2 No. 214-08
  • UL 1666
  • NFPA 262
  • ANSI/TIA-568-C.2
  • ANSI/ICEA S-90-661-2012
  • Article 800, NEC (NFPA 70)
  • RoHS-compliant
• NRTL Programs
  • UL Verified CAT 6
  • UL, c(UL) Listed CMR
  • UL, c(UL) Listed CMP
• Sustainability
  • UL Certified EPD
  • HPD
  • USGBC Member
  • RoHS2-compliant
  • REACH-compliant
