Grundorf Corp AC-10-U
2-Way, 10-Inch Speaker With U-Bracket

OUR PART #:  AC-10-U

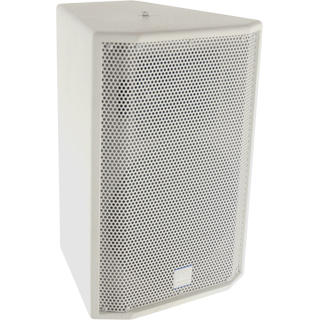

The Grundorf AC-10-U is the AC-10 speaker with a U bracket from the Altar Clarity Series loudspeakers.
Learn More
Our Price: $389.00
List Price: $429.00
You save 9%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grundorf Corp AC-10-U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Grundorf AC-10-U is the AC-10 speaker with a U bracket from the Altar Clarity Series loudspeakers. The AC-10 employs a two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. The Altar Clarity™ AC-10 is available in several versions to accommodate your specific application: no handles or pole mount, with U-Bracket mounting, with three 2 x 2 flypoints, or equipped for wall mounting.

Grundorf AC-10 Specifications:

  • Power Handling:
    • RMS: 150 Watts
    • Program: 300 Watts
    • Peak to Peak: 600 Watts
  • Frequency Response: 70 Hz - 18 kHz
  • Sensitivity (1 W @ 1 M): 99 dB - SPL
  • Nominal Impedance: 8 Ohms
  • Dispersions:
    • Horizontal 90°
    • Vertical 40°
  • Components:
    • Low Frequency Driver: 10" cone
    • Magnet Material: Ferrite
    • Cone Material: Weather-Treated paper
  • Components:
    • High Frequency Driver: 1" Compression Driver
    • High Freuqncy Horn: 90° x 40°
  • Crossover Type: Passive
  • Crossover Frequency: 2.8 kHz
  • Enclosure Type: Trapezoidal 15°
  • Enclosure Material: 13-ply Baltic Birch
  • Enclosure Construction: Dado and Rabbet Joinery
  • Enclosure Finish: Textured Black
  • Grille: Cloth covered, powder-coated, perforated steel
  • Connectors: 5-way binder
  • Dimensions (H x W x D): 19.25 x 12.63 x 12.75 inches (488.95 x 320.80 x323.85 mm)
  • Weight: 26.5 lbs (11.9 Kgs)
  • Shipping dimensions (H x W x D): 22.25 x 16.75 x 16.00 inches (565.15 x425.45 x 406.40 mm)
