Intelix DL-HDCOAX HDMI IR Transmitter and Receiver Set Over Coax

OUR PART #: DL-HDCOAX MFR #: DL-HDCOAX

Copied to clipboard

The Intelix Digitalinx DL-HDCOAX is an HDMI over Coax extender that accommodates distances up to 100 meters (328ft). ...Read more

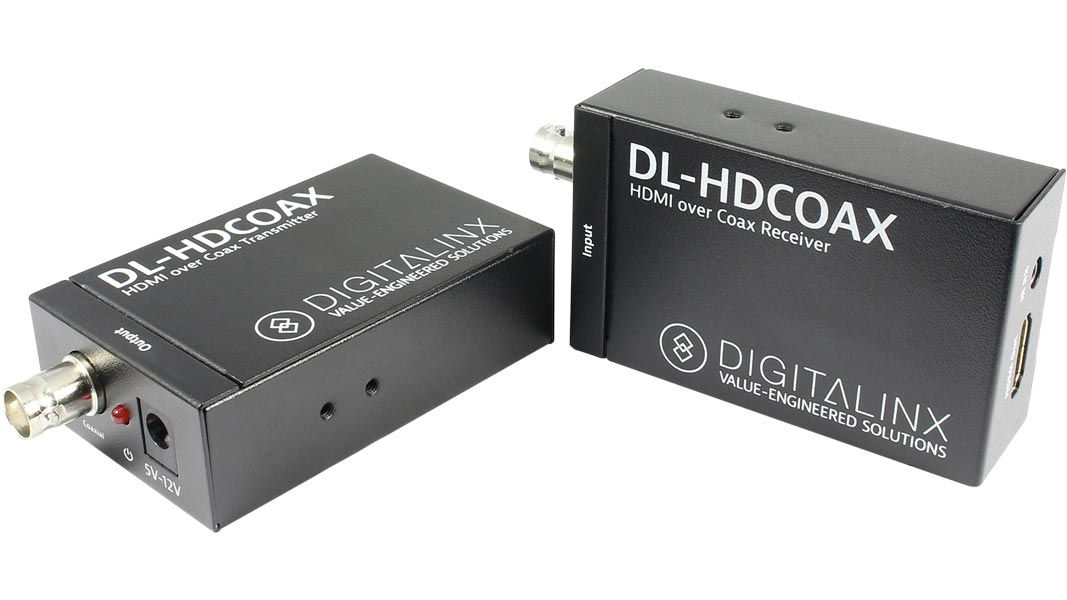

Intelix DL-HDCOAX HDMI IR Transmitter And Receiver Set Over Coax Image 1
Intelix DL-HDCOAX HDMI IR Transmitter And Receiver Set Over Coax
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Intelix Digitalinx DL-HDCOAX is an HDMI over Coax extender that accommodates distances up to 100 meters (328ft). The DL-HDCOAX supports resolutions up to 1080p and 48KHz Digital Audio.

The Intelix DL-HDCOAX features IR capability allowing the user to control the source from the display. The DL-HDCOAX is HDMI 1.3 and HDCP 1.1 compliant. The transmitter and receiver are powered on both ends, power supplies are provided with the set.

Applications:

  • HDMI multimedia extension
  • Retrofit into historic buildings

Intelix DL-HDCOAX Includes:

  • Installation guide
  • Two power supplies
  • IR Tx cable
  • IR Rx cable

Intelix DL-HDCOAX Features:

  • HDMI and IR extension over a single RG6 or RG59 cable
  • Extension up to 328 feet (100 meters)
  • Control the source device from the display
  • Locking BNC connectors
  • 1080p compatible
  • Compact design

Intelix DL-HDCOAX HDMI & IR Transmitter and Receiver Specifications:

  • Transmitter I/O Connections:
    • HDMI Input: One (1) HDMI Type A Receptacle
    • Coaxial connection: One (1) female BNC
  • Receiver I/O Connections:
    • HDMI output: One (1) HDMI Type A Receptacle
    • Coaxial connection: One (1) female BNC
  • Supported Audio and Video:
    • Maximum Coaxial distance: 328' (100 meters)
    • Maximum Passive HDMI Distance: 16' (5m)
    • Deep Color Mode: 36 bits (12 bits /color) bandwidth up to 225MHz
    • Supported Audio: 48KHz LPCM Digital Audio
    • Video Compliance: HDMI 1.3, HDCP 1.1
  • Chassis and Environmental:
    • Enclosure: Painted steel
    • Dimensions: 3.14" x 1.61" x 0.98" (80 mm x 41 mm x 25 mm)
    • Shipping Weight: 1.20lbs (0.54 kg)
    • Operating Temperature: +32° to +104° F (0° to +40° C)
    • Operating Humidity: 20% to 90%, Non-condensing
    • Storage Temperature: -4°- +140° F (-20°C - +60° C)
    • Storage Humidity: 20% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • Power Supply Input Voltage: 100-240v at 50/60 Hz at 0.15 A
    • Power Supply Output Rating: 5v DC at 1 A
    • ESD Protection: 15kV
    • Device Regulatory: CE, RoHS, FCC
    • Power Supply Regulatory: UL, FCC, LPS
  • Warranty: 2 years
  • Diagnostic indicators: Power LED

NOTE:

See Attached for More Product Specifications
