90m HDBaseT HDMI/Ethernet/RS232/IR Receiver


The Intelix DIGI-HDX-R extends HDMI over a single cable by incorporating HDBaseT technology.
Learn More
Sale Price: $165.79
List Price: $399.95
You save 59%!
Write the first review.
In Stock

Related Products

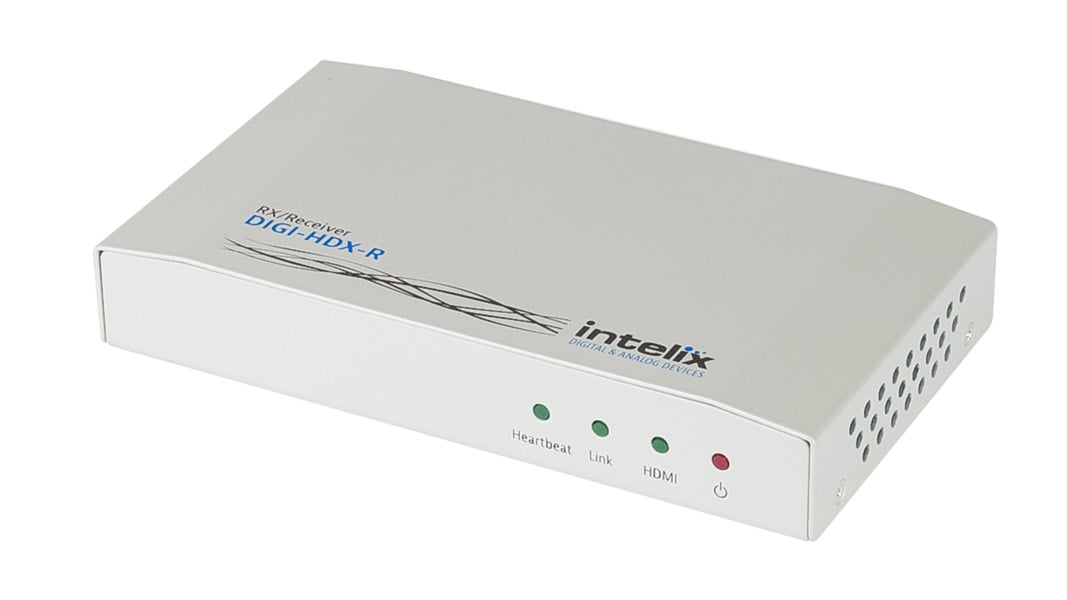

The Intelix DIGI-HDX-R extends HDMI over a single cable by incorporating HDBaseT technology. The DIGI-HDX-R supports 1080p, full 3D or 4k x 2k video signals up to 90 meters (295 feet) including multichannel audio. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of the new extender series include local HDMI output on the transmitter, power over Ethernet (PoE), bidirectional IR, bidirectional RS232, and Ethernet pass-through with a 2-port network switch on the receiver.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Flexible power design allows the DIGI-HDX series extenders to be powered at either the TX or RX end, and only one power supply is required. The power supply (PS-24D-25) is sold separately. The bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through capabilities make the DIGI-HDX compatible with most control systems. The IR emitter (DIGIB-EMT) and IR receiver (DIGIB-EYE) are sold separately. The two-port network switch on the DIGI-HDX-R allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation.

Intelix DIGI-HDX-R 90m HDBaseT Receiver Features:

  • HDMI transmission up to 296 ft (90m)
  • Two-port Ethernet switch; locking power connector
  • Supports 3D, 4K, and audio formats up to 7.1 audio
  • Supports HDBaseT, CEC specifications; HDMI/HDCP compliant
  • Built-in surge protection, diagnostic LEDs
  • Bidirectional Wideband IR, RS232 and 100BaseT Ethernet pass-through
  • PoE (Power over Ethernet) - power from TX (PS not included) when used with DIGI-HDX-S
  • Compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications

Intelix DIGI-HDX-R 90m HDBaseT Receiver Specifications:

  • Input/Output Connections:
    • HDMI Output: 1x HDMI Type A Receptacle
    • Twisted Pair (HDBaseT): 1x Shielded RJ45 Female
    • RS232: 1x 3-Pole Euroblock connector
    • Ethernet: 2x Shielded RJ45 Female
    • IR Input: 1x 3.5mm TRS
    • IR Output: 1x 3.5mm TS
    • 24V DC Power: 1x 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • Supported Audio, Video, and Control:
    • Maximum Video Compatibility: Deep Color 48/36/30/24 Bit at 1080p, 2k, 4k, and 3D
    • Supported 3D Formats: Field Alternative (interlaced), Frame Packing, Line Alternative Full, Side-By-Side Half, Side-By-Side Full, 2D + Depth, 2D + Depth + Graphics + Depth
    • Video Compliance: HDMI, HDCP, and CEC (Consumer Electronics Control)
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
    • Ethernet: 100BaseT
    • RS232 Baud Rate: Up to 115200 baud
  • HDBaseT Signal Characteristics:
    • Maximum Distance: 90 m
    • Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
    • Bandwidth: 10.2 Gbps
    • Gain: 0 dB – 10 dB at 100 MHz
    • Signal to Noise Ratio: > 70 dB at 100 MHz over 100 m
    • Return Loss: < -30 dB at 5 KHz
    • Total Harmonic Distortion: < 0.005% at 1 KHz
    • Min-Max Signal Level: < 0.3 V – 1.45 Vp-p
    • Differential Phase Error: ±10° at 135 MHz over 100 m
  • Chassis and Environmental:
    • Enclosure: Painted steel
    • Dimensions: 3.35" x 5.94" x 0.95"  (85 x 151 x 24 mm)
    • Shipping Weight: 1.1 lb (0.5 kg)
    • Operating Temperature:
      • Environment: +32° to +104° F (0° to +40° C)
      • Chassis: 88° F (31° C) (S); 100° F (38° C) (R)
    • Operating Humidity (Environment): 20% to 90%, Non-condensing
    • Storage Temperature (Environment): +14° to +140° F (-10° to +60° C)
    • Storage Humidity (Environment): 20% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • PoE Standard (Twisted Pair [HDBaseT] port) to extender: 802.3af
    • Maximum Power Consumption: 22 watts
    • Power Supply (Not Included): 24vDC / 1.5 Amp
    • ESD Protection: 15kV
    • Regulatory: CE, RoHS
  • Other:
    • Standard Warranty: 2 years
    • Diagnostic Indicators: Heartbeat, Link, HDMI, and power LEDs
    • Included Accessories: Installation Guide
    • Compatible Transmitters:
      • AV and PoE: DIGI-HD60-S
      • AV and Control: FLX-BO4A, DIGI-44B, DIGI-88B
      • AV, PoE and Control: DIGI-HDX-S, DIGI-HD60C-S, DIGI-P52, FLX-44, ASW-WP
  • Accessories:
    • Power Supply: PS-24D-25
    • IR Emitter: DIGIB-EMT
    • IR Receiver: DIGIB-EYE
