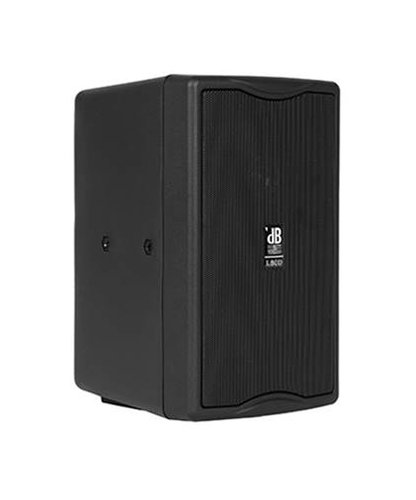

DB Technologies L-80D 2 x 4" Active Coaxial Speaker, 80W

The DB Technologies L 80D is a highly efficient amplifier provides high power with limited weight and dimension. Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan. The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment.

DB Technologies L 80D Specifications:

• Technical Data
  • Speaker Type: 2-Way active speaker
• Acoustical Data
  • Frequency Response [-10dB] : 90 Hz - 20.000 Hz
  • Max SPL: 112 dB
  • HF: 1"
  • Type HF: Dome Tweeter, coaxial
  • Directivity: 85 x 75 °
  • LF: 2 woofer 4" +dome tweeter (coaxial) 1 woofer 4"
• Amplifier
  • Amp Class: Class D
  • Amp Technology : Digipro®
  • Power PRG: 80 W
  • Cooling : Convection
• Processor
  • Controller: DSP 24 bit / 48 kHz
  • System Presets: 8
  • Limiter: Dual Active Peak, RMS, Thermal
• Input
  • Signal Input: (1) XLR Line In / Mic (1) 6.3mm phone jack 1x RCA cinch AUX with volume control
  • Microphone Input: YES
  • Signal Output: (1) 6.3mm phone jack
  • Power Socket: VDE
  • Voltage Range: 110-120 - 220-240 V
• Mechanics:
  • Housing: Polyporpylene PP
  • Angles Up: Monitor use 60°
  • Rigging Points: (2) M5 on side (2) M5 on bottom
  • Dimensions (W x H x D): 155 x 265 x 180 mm (6.1 x 10.43 x 7.09 in)
  • Weight: 3.75 kg (8.27 lbs)
