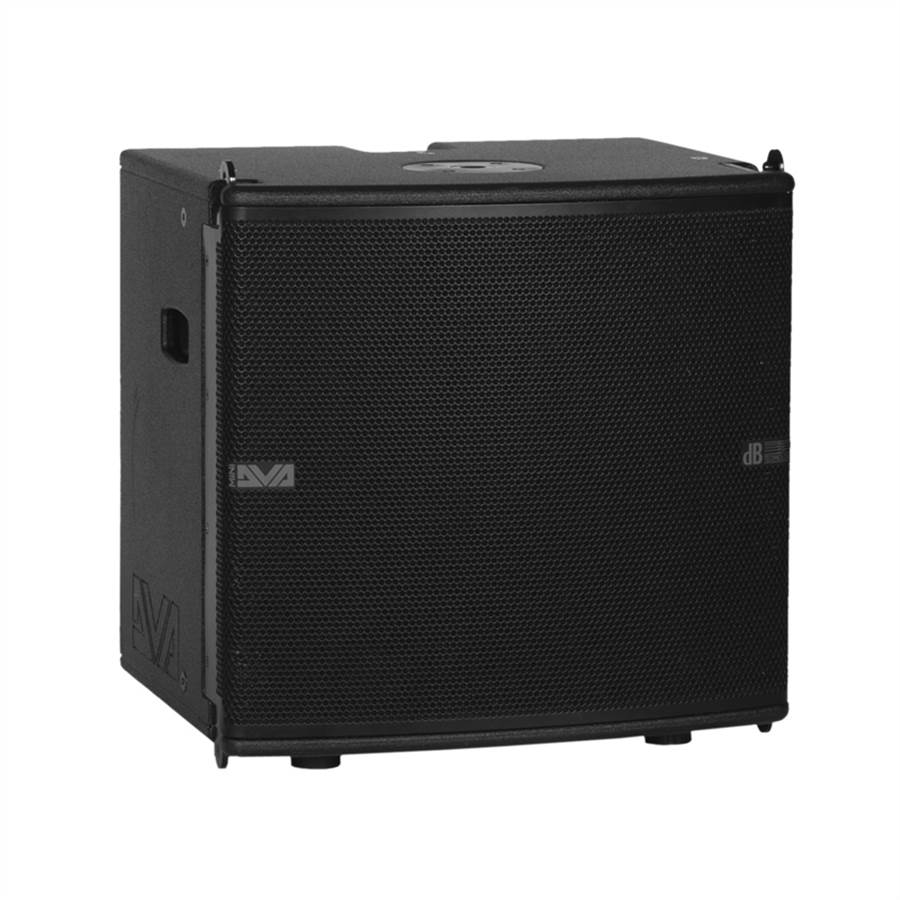

DB Technologies DVA-MS12
Flyable Active Bass-Reflex Subwoofer

OUR PART #:  DVA-MS12

The DB Technologies speaker DVA MS12 is part of the modular system called DVA MINI. The system can be used in ground stack configuration or suspended in line-array configuration.
Learn More
Our Price: $1,799.00
List Price: $2,200.00
You save 18%!
Write the first review.
DB Technologies DVA-MS12
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The DB Technologies speaker DVA MS12 is part of the modular system called DVA MINI. The system can be used in ground stack configuration or suspended in line-array configuration. The modules use a fast, innovative mechanical fastening method. This series is ideal for installations in theatres, places of worship, convention centers, concerts and live music performances which require medium-high sound pressures and limited weight and footprint.

DB Technologies DVA MS12 Specifications:

  • Technical Data
    • Speaker Type: Active bass reflex flyable subwoofer
  • Acoustical Data
    • Frequency Response [-6d B]: 45 - 140 Hz
    • Frequency Response [-10 dB]: 40 - 165 Hz
    • Max SPL: 131 dB
    • LF: 12"
    • Voice Coil LF: 3"
    • Directivity: Omnidirectional
  • Amplifier
    • Amp Technology: Digipro® G3
    • Amp Class: Class D
    • Power Supply: 700 W SMPS with PSU Auto-range (110V~ and 220V~)
    • LF Amp: 700 W RMS (1400 W Peak)
    • Cooling: Convection
  • Processor
    • Controller: DSP 56 bit
    • AD/DA Converter: 24 bit / 48 kHz
    • Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link / X-over), Mini-USB type “B” port (service data)
    • Limiter: Dual active, RMS / Peak, Thermal
    • Crossover Frequency LF-HF: 90 - 120 Hz
    • LF X-over out slope: 24 dB / Octave
  • Mechanics
    • Housing: Multiplex birch plywood - Polyurea painting
    • Handles: (1) left side, (1) right side
    • Feet: (4) Dual Position Reversable Feet (flying/stacking mode)
    • Fittings: M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
    • Dimensions (W x H x D): 460 x 430 x 385 mm (18.1 x 16.9 x 15.2 x 58.4 lbs)
    • Weight: 26.5 kg (58.4 lbs)
