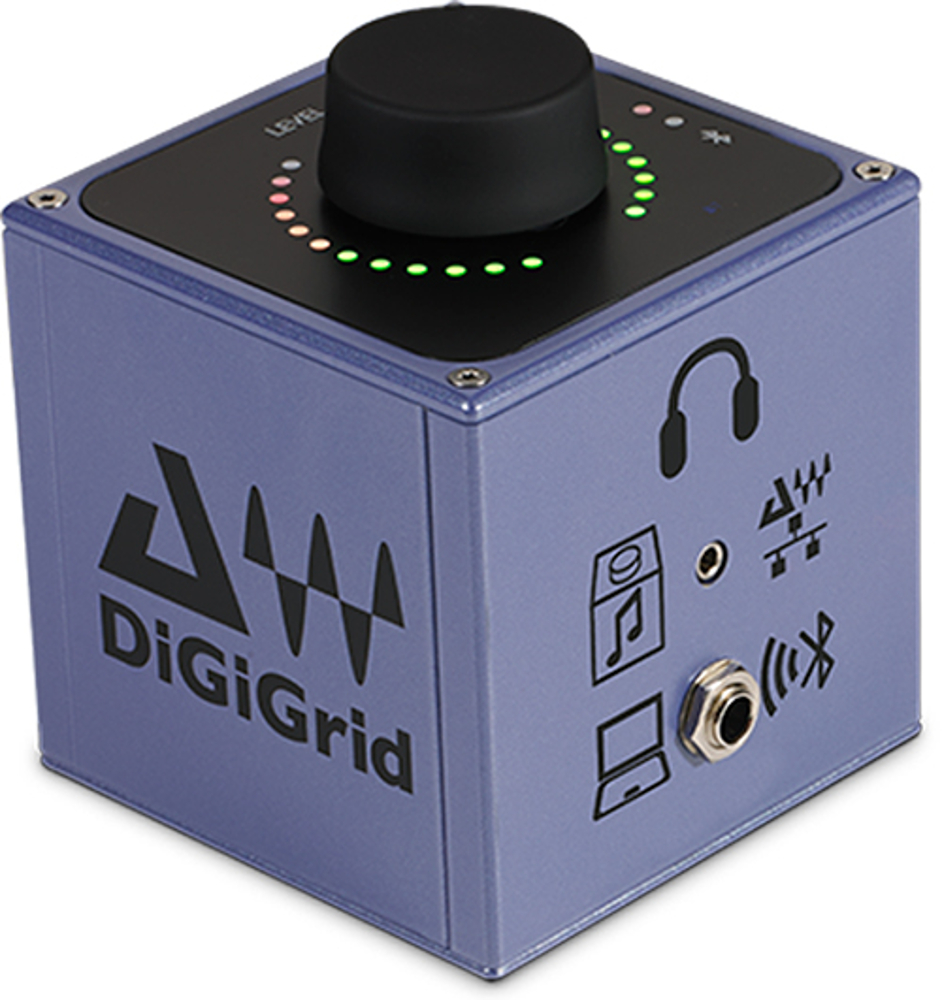

DiGiGrid Q
Headphone Amplifier Audio Interface

OUR PART #:  DIGIGRID-Q

DiGiGrid Q is a high-power, high-fidelity output, or expand the experience of listening to your favorite music tracks via Bluetooth or your Hi-Fi’s phono connection.
Learn More
Our Price: $424.00
List Price: $499.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DiGiGrid Q
Qty:
In Stock

Similar Products

DiGiGrid Q is a high-power, high-fidelity output, or expand the experience of listening to your favorite music tracks via Bluetooth or your Hi-Fi’s phono connection. When using headphones, DiGiGrid Q provides massive control and enormous amounts of excitement. As your system grows, simply connect more I/O and DSP from the DiGiGrid rackmount series.

With just one simple Ethernet connection to your Mac or PC, you now have a simple standalone high-quality audio interface that you can use with any DAW. Use DiGiGrid Q in conjunction with DiGiGrid S, and you will easily be able to network up to four DiGiGrid devices, up to 75 meters/245 feet apart. They can even be connected to multiple computers and DAWs at the same time. Check out the DiGiGrid M if you need inputs, and DiGiGrid D for more I/O from the same series.

DiGiGrid Q Includes:

  • eMotion ST Mixer
  • SoundGrid Studio Application
  • StudioRack

DiGiGrid Q Features:

  • Just 3.54" cubed (9 cm³) cubed in a high-grade aluminum extrusion for rugged yet flexible use
  • 4 high-quality inputs to suit all users
  • AES/EBU on XLR for professional audio applications
  • Cat 5 port for SoundGrid network connection
  • RCA for consumer audiophiles
  • Bluetooth for working directly with your digital music collection
  • 1/4" or 3.5 mm jack sockets for your preferred headphone choice

DiGiGrid Q Specifications:

  • General
    • Line Input Impedance: 10KO
    • AES/EBU Input Impedance: 110O
    • Line Input Level: +2 dBu for full scale
    • Frequency Response: -3 dB <10 Hz to 100 kHz
    • (Analog to Analog)
    • Harmonic Distortion: 0.005%
  • Headphones
    • Gain Range Infinity: To +10 dB
    • Max Output Level:
    • Load     RMS
    • 16 Ohms     2.3V
    • 32 Ohms     3.7V
    • 100 Ohms     6.0V
    • 200 Ohms     7.5V
    • 600 Ohms     8.8V
