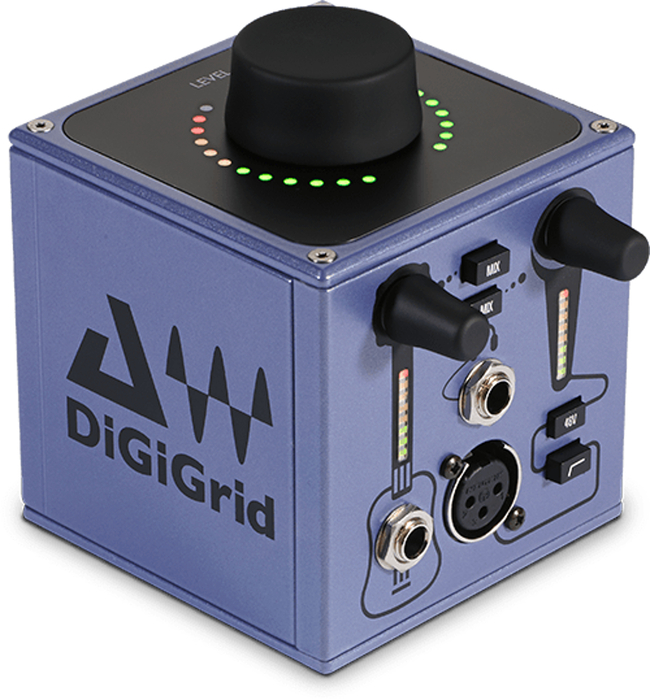

DiGiGrid M
Musician Recording Audio Interface

OUR PART #:  DIGIGRID-M

With just one simple Ethernet connection to your Mac or PC, you now have a simple standalone high-quality audio interface that you can use with any DAW.
Learn More
Our Price: $467.00
List Price: $549.00
You save 15%!
Write the first review.
DiGiGrid M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

With just one simple Ethernet connection to your Mac or PC, you now have a simple standalone high-quality audio interface that you can use with any DAW. Using DiGiGrid M in conjunction with the DiGiGrid S switch, you will easily be able to network up to four DiGiGrid devices, up to 75 meters/245 feet apart. They can even be connected to multiple computers and DAWs at the same time.

Check out DiGiGrid Q if you need an extra high-powered headphone amplifier, and DiGiGrid D for more I/O from the same series. And as your system grows, you can connect more I/O and DSP from the rack-mounted series.

DiGiGrid M Includes:

  • eMotion ST Mixer
  • SoundGrid Studio Application
  • StudioRack

DiGiGrid M Features:

  • Just 9 cm¬≥ (3.54" cubed) in a high-grade aluminum extrusion for rugged yet flexible use
  • Designed for songwriters, musicians and engineers for 96 kHz recording and headphone monitoring
  • 2 inputs, 2 outputs, 48V Phantom, high-pass filter and dedicated metering
  • Analog control path for highest quality warm sonic performance
  • Cat 5 port for the SoundGrid network connection
  • Optional stand mount adaptor for maximum flexibility of placement
  • Use as a standalone unit or in larger DiGiGrid advanced audio networks

DiGiGrid M Specifications:

  • Mic Input
    • Input Impedance: 1K5 Ohms
    • Gain Range: 0 to +70 dB
    • Frequency Response: -3 dB <10 hz to 100 khz
    • (Analog to Analog)
    • Harmonic Distortion: 0.005% (40 dB Gain)
    • Noise EIN: Typically -127 dB (70 dB Gain)
    • High Pass Filter: -3 dB 100 Hz 18 dB/Octave
  • Line Input
    • Input Impedance: 1M Ohms
    • Gain Range: +6 to +30 dB
    • Frequency Response: -3 dB <10 hz to 100 khz
    • (Analog to Analog)
    • Harmonic Distortion: 0.005%
  • Noise:
    • Min Gain: -82 dBu
    • Max Gain: -73 dBu
  • Headphones
    • Gain Range Infinity: To +10 dB
    • Max Output Level:
    • Load     RMS
    • 16 Ohms     2.3V
    • 32 Ohms     3.7V
    • 100 Ohms   6.0V
    • 200 Ohms   7.5V
    • 600 Ohms   8.8V
