Lex Products Corp EGME-1218-125
125 ft 12AWG 20A 6-Circuit EverGrip® LSC19 Molded Multi-Cable Extension

OUR PART #:  EGME-1218-125

Lex Products' EGME-1218-125 is a 20 Amp, 6-circuit, 300 VAC, 12 AWG, 18-conductor EverGrip® LSC19 cable with molded Lex 6-circuit connectors.
Learn More
Our Price: $1,105.59
List Price: $1,399.85
You save 21%!
Write the first review.
Lex Products Corp EGME-1218-125
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

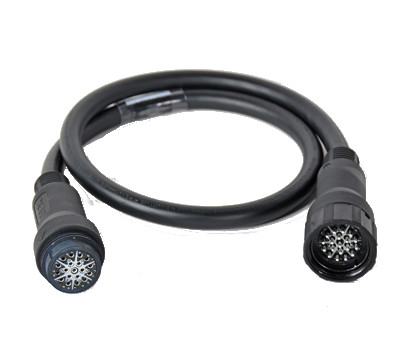

Lex Products' EGME-1218-125 is a 20 Amp, 6-circuit, 300 VAC, 12 AWG, 18-conductor EverGrip® LSC19 cable with molded Lex 6-circuit connectors. This multi-cable extension carries 6-circuits of lighting power inside a single jacket, saving 6 individual runs of cable.

125 ft EverGrip® Cable

Lex Products EGME-1218-125 Features:

  • Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
  • Pins and sockets cannot push back, extending life of the connector
  • Rugged construction helps prevent broken conductors and loose or damaged ground rings
  • Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
  • Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
  • Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
  • Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
  • 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
  • Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections Silver-plated brass contacts for high conductivity
  • All black construction blends into scenery and is ideal for stage or studio lighting applications

Lex Products EGME-1218-125 EverGrip Cable Specifications:

  • Rating: 20 Amp, 300 VAC maximum (6-circuit)
    • Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).
  • Male Connector: Molded Lex 6-circuit
  • Cable Gauge: 12 AWG, 18 conductor TPR
  • Female Connector: Molded Lex 6-circuit
