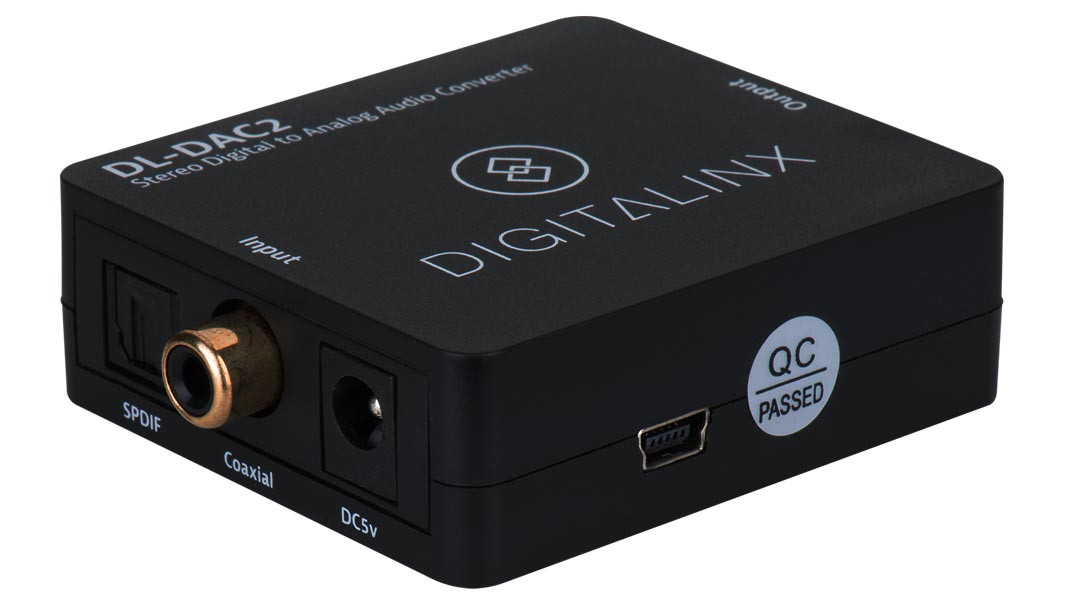

Intelix DL-DAC2 Digital to Analog Audio Converter

OUR PART #: DL-DAC2 MFR #: DL-DAC2

Copied to clipboard

The Intelix DigitaLinx DL-DAC2 is a PCM two channel to stereo audio converter. The DL-DAC2 features optical and digital coaxial input audio connections. ...Read more

Intelix DL-DAC2 Digital To Analog Audio Converter Image 1
Intelix DL-DAC2 Digital To Analog Audio Converter Image 2
Intelix DL-DAC2 Digital To Analog Audio Converter Image 3
Intelix DL-DAC2 Digital To Analog Audio Converter
Our Price: $70.60
List Price: $78.44
You save 10%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Intelix DigitaLinx DL-DAC2 is a PCM two channel to stereo audio converter. The DL-DAC2 features optical and digital coaxial input audio connections. Analog output is simultaneously available on the 3.5mm jack and the stereo RCA jacks.

Applications:

Add digital audio source to analog audio distribution

Intelix DL-DAC2 Converter Includes:

  • Power supply; optional power via USB

Intelix DL-DAC2 Converter Features:

  • Converts stereo digital audio to stereo analog audio
  • Digital optical and coaxial audio inputs
  • Analog outputs (3.5mm and RCA) pass audio simultaneously
  • Built-in surge protection, power LED

Intelix DL-DAC2 Converter Specifications:

  • I/O Connections:
    • SPDIF (Optical) Input: One (1) EIAJ Optical Connector
    • Coaxial Input: One (1) RCA Connector
    • Power Input: One (1) 5.5 mm Outside Diameter, 2.5 mm Inside Diameter Barrel
    • USB Input (Alternate power input): One (1) USB Type B Mini Connector
    • Analog Output: Two (2) RCA Connectors
    • Headphone Output: One (1) 3.5 mm Jack
  • DAC Specifications:
    • Supported PCM 2 Channel Audio: 32 KHz, 44.1 KHz, 48 KHz, 96 KHz
    • Output Signal to Noise Ratio: 120 dB
    • Output Frequency Response: 20 Hz through 20 KHz ± 0.5 dB
  • Chassis and Environmental:
    • Enclosure: Black ABS Plastic
    • Dimensions with Connectors (HxWxD): 0.79" x 2.83" x 2.17" (20 mm x 72 mm x 55 mm)
    • Shipping Weight: 0.18 kg (0.4 lb)
    • Operating Temperature: 32°- 104° F (0° - 40° C)
    • Operating Humidity: 20% to 90%, Non-condensing
    • Storage Temperature: 14° - 140° F (-10° - 60° C)
    • Storage Humidity: 20% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • Power Supply Input: 100-240V AC at 50/60 Hz
    • Power Supply Output: 5V DC; 1 Amp
    • Power Consumption: 2.5 watts (max)
    • ESD Protection: ±8kV (air-gap discharge), ±4KV (contact discharge)
    • Regulatory: FCC, CE, RoHS
  • Warranty: 2 years
