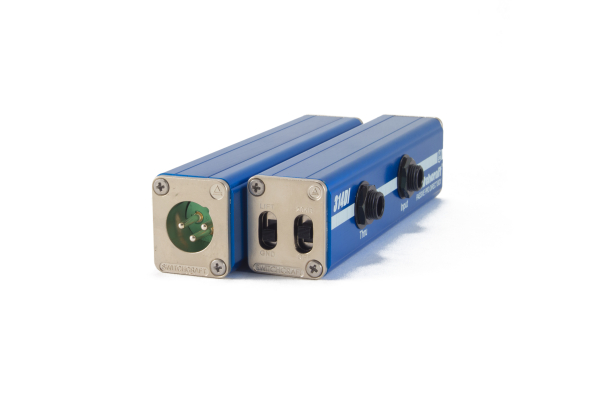

Switchcraft 314DI
Passive DI Box With 1/4 Inch Feed Thru

OUR PART #  314DI

Our Price: $99.00
List Price: $135.99
You save 27%! (Low Price Guarantee)
In Stock

The Switchcraft 314DI is a pocket size version of Switchcraft’s standard high quality DI Box series of products. It converts the unbalanced outputs of guitars, keyboards and other instruments with line-out level to balanced, mic level signals that can be connected to audio consoles and mic preamps.

Switchcraft 314DI Features:

  • 1/4” Feed Thru
  • Switchcraft DE Series Locking Male XLR providesbalanced, mono, mic level output
  • Ground Lift Switch
  • -20 db pad to enable the device to handle stronger signals withoutdistortion

Switchcraft 314DI Specifications:

  • Frequency Response: 15 Hz - 40 kHz
  • Total Harmonic Distortion and Noise: < 0.009 %
  • Input Impedance: > 120 kOhm
  • Output Impedance: < 45 Ohm
  • Deviation from Linear Phase: < / = 1°
  • Pad Attenuation: 20 dB

Switchcraft 314DI
Passive DI Box With 1/4 Inch Feed Thru

OUR PART #  314DI

Product Information:

The Switchcraft 314DI is a pocket size version of Switchcraft’s standard high quality DI Box series of products. It converts the unbalanced outputs of guitars, keyboards and other instruments with line-out level to balanced, mic level signals that can be connected to audio consoles and mic preamps.

Switchcraft 314DI Features:

  • 1/4” Feed Thru
  • Switchcraft DE Series Locking Male XLR providesbalanced, mono, mic level output
  • Ground Lift Switch
  • -20 db pad to enable the device to handle stronger signals withoutdistortion

Switchcraft 314DI Specifications:

  • Frequency Response: 15 Hz - 40 kHz
  • Total Harmonic Distortion and Noise: < 0.009 %
  • Input Impedance: > 120 kOhm
  • Output Impedance: < 45 Ohm
  • Deviation from Linear Phase: < / = 1°
  • Pad Attenuation: 20 dB
