Product Overview

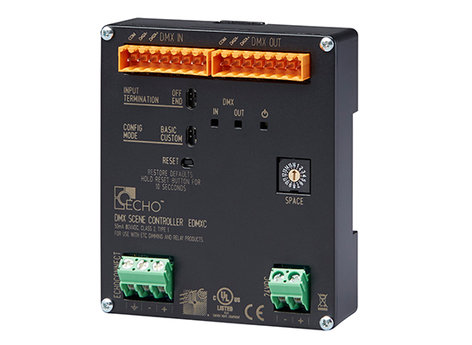

The ETC EDMXC Unison Echo® DMX Scene Controller is a powerful addition to the Echo family. The DMX Scene Controller uses snapshot thechnology to caputure lighting looks and save them to connected Inspire® control stations, simplifying customization and control of individualized zones and fixtures. Combined with EchoAccess or the Inspire Four-Button with Fader Station, the DMX Scene Controller allows for lighting hue, saturation and color to be modified locally or remotely.
Applications:
- Small theaters
- Hospitality
- Healthcare facilities
- Conference and meeting rooms
- Lobby spaces
- Retail
- Houses of worship
ETC EDMXC Unison Echo® DMX Scene Controller Features:
- DMX input for snapshot capture of lighting scenes
- Works with EchoAccess™ and Inspire Four-Button with Fader Station for live control of intensity, hue and saturation of Echo zones
- Supports 32 presets of 512 DMX addresses
- Support for control of 16 patched Echo zones
- Basic and custom-use modes
- EchoConnect™: two-wire topology-free system gives you the freedom toeasily place stations wherever they are needed
ETC EDMXC Unison Echo® DMX Scene Controller Specifications:
- Functional:
- Recall prerecorded scenes for playback using DMX
- DMX input for snapshot recording up to 32 presets
- DMX output for up to 512 addresses
- Use any Unison Echo station for preset playback
- Supports DMX pass-through for real-time output of incoming level when recording snapshots
- Meets USITT DMX-512A specifications
- Supports live control and recording for the following fixture profiles:
- Intensity
- RGB
- RGBA
- RGBW
- RGB_S (Selador Desire® D22, D40, Source Four® LED Series 1, Source Four LED Series 2)
- RGB_SF (Desire D60)
- IRGBS (ColorSource® PAR, Spot)
- Mechanical:
- One integrated DMX-input and one integrated DMX-output port
- Din-rail mounting complies with DIN43880 (35/7.5 rail)
- Constructed of injection-molded black ABS plastic
- Toggle switches for DMX-Termination and Config Mode
- DMX-In, DMX-Out and power indicators: Blue power indicator; Bi-color DMX activity indicator
- Electical:
- Connects via two-wire EchoConnect control network through low-voltage Class 2 wiring + 24Vdc auxiliary power
- Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire
- Two #16 AWG wires for 24VDC auxiliary power
- Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories
- Wiring may be bus, loop, homerun or any combination of these
- Supports up to 500 meters (1,640 feet) of control wiring (Up to 1,000 feet using Cat5)
- MicroSD card slot for firmware maintenance
- UL and cUL Listed, CE Marked
- DMX Ports:
- Eight-position removable pluggable connectors for in and out ports
- Connectors designed for use with Belden 9729 (or equivalent)
- Optional headers available for use with Belden 1583A (or equivalent)
- Input is fully optically isolated from controller electronics
- Withstands fault voltages up to 250VAC
- Integrated DMX termination
- Thermal:
- Ambient room temperature: 32°-122°F (0-50°C)
- Ambient humidity: 5-95% non-condensing
Note
See Attached for More Product Specifications
