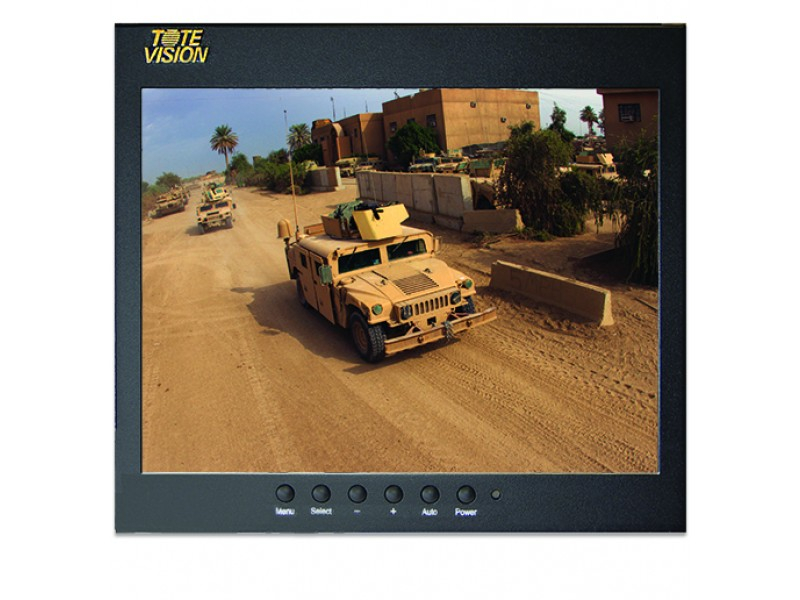

ToteVision LED1003HD
9.7" LCD 3D Monitor with Comb Filter

OUR PART #  LED1003HD

Our Price: $479.00
List Price: $639.00
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Featuring the latest screen imaging technology, ToteVision's LED-1003HD is a 9.7" commercial-grade monitor delivers enhanced sharpness and clarity in a rugged metal housing. Analog and digital video both benefit from being viewed on this monitor, and it's the best match for displaying higher resolution megapixel imagery.

ToteVision LED-1003HD 9.7" Monitor Features:

  • LED backlight: brighter picture using less power
  • Displays HD signals (1080i/p)
  • Wide viewing angle (89/89/89/89)
  • Multiple connections including 2x BNC composite Input / Output for looping
  • Excellent contrast ratio
  • Image enhancing: 3D Interlace comb filter, DNR, 4H filter
  • Durable metal case

ToteVision LED-1003HD 9.7" Monitor Specifications:

  • Mount: VESA: 75x75mm and 100x100mm; Removable desk stand; 1/4 - 20 pad on top
  • Display: 9.7" TFT Active Matrix
  • Resolution: 1024 x 768
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 7.8” x 5.9” (197.6 x 148.8mm)
  • Back Light: LED (30K)
  • HD Compatible: Yes
  • Anti-Glare Coating: Yes
  • Brightness: 400 cd/m² (Nit)
  • Contrast: 1,000:1
  • Dot Pitch: 0.19(H) x 0.19(V)mm
  • Color Depth: 262,144
  • Response Time: 2ms/2ms (Rising/Falling)
  • Viewing Angle: 89°
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: x2 Speakers
  • HDMI: x1 Input
  • Composite: x2 BNC Inputs; x2 BNC Outputs
  • VGA: x1 15 pin D-sub Input
  • Audio: x1 3.5mm PC Input; x1 L/R RCA Output
  • Power: 2.1mm DC Input
  • Remote Control: Infrared
  • Operating Temp: 32° ~ 104°F (0° ~ 40°C)
  • Power Requirements: 12 VDC, 2 Amp negative ground
  • Power Consumption: 15 Watts (Max)
  • Dimensions: 8.8” x 7.8” x 1.9” (223.5 x 198 x 48.3mm)
  • Product Weight:
    • Net: 3.25 lbs (1.5kg)
    • Gross: 5.5 lbs (2.5kg)
  • Case: Durable Metal

ToteVision LED1003HD
9.7" LCD 3D Monitor with Comb Filter

OUR PART #  LED1003HD

Product Information:

Featuring the latest screen imaging technology, ToteVision's LED-1003HD is a 9.7" commercial-grade monitor delivers enhanced sharpness and clarity in a rugged metal housing. Analog and digital video both benefit from being viewed on this monitor, and it's the best match for displaying higher resolution megapixel imagery.

ToteVision LED-1003HD 9.7" Monitor Features:

  • LED backlight: brighter picture using less power
  • Displays HD signals (1080i/p)
  • Wide viewing angle (89/89/89/89)
  • Multiple connections including 2x BNC composite Input / Output for looping
  • Excellent contrast ratio
  • Image enhancing: 3D Interlace comb filter, DNR, 4H filter
  • Durable metal case

ToteVision LED-1003HD 9.7" Monitor Specifications:

  • Mount: VESA: 75x75mm and 100x100mm; Removable desk stand; 1/4 - 20 pad on top
  • Display: 9.7" TFT Active Matrix
  • Resolution: 1024 x 768
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 7.8” x 5.9” (197.6 x 148.8mm)
  • Back Light: LED (30K)
  • HD Compatible: Yes
  • Anti-Glare Coating: Yes
  • Brightness: 400 cd/m² (Nit)
  • Contrast: 1,000:1
  • Dot Pitch: 0.19(H) x 0.19(V)mm
  • Color Depth: 262,144
  • Response Time: 2ms/2ms (Rising/Falling)
  • Viewing Angle: 89°
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: x2 Speakers
  • HDMI: x1 Input
  • Composite: x2 BNC Inputs; x2 BNC Outputs
  • VGA: x1 15 pin D-sub Input
  • Audio: x1 3.5mm PC Input; x1 L/R RCA Output
  • Power: 2.1mm DC Input
  • Remote Control: Infrared
  • Operating Temp: 32° ~ 104°F (0° ~ 40°C)
  • Power Requirements: 12 VDC, 2 Amp negative ground
  • Power Consumption: 15 Watts (Max)
  • Dimensions: 8.8” x 7.8” x 1.9” (223.5 x 198 x 48.3mm)
  • Product Weight:
    • Net: 3.25 lbs (1.5kg)
    • Gross: 5.5 lbs (2.5kg)
  • Case: Durable Metal
