Radial Engineering Key-Largo
Keyboard Mixer, Performance Pedal and DI Box

OUR PART #:  KEY-LARGO

Our Price: $399.99
List Price: $450.00
You save 11%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

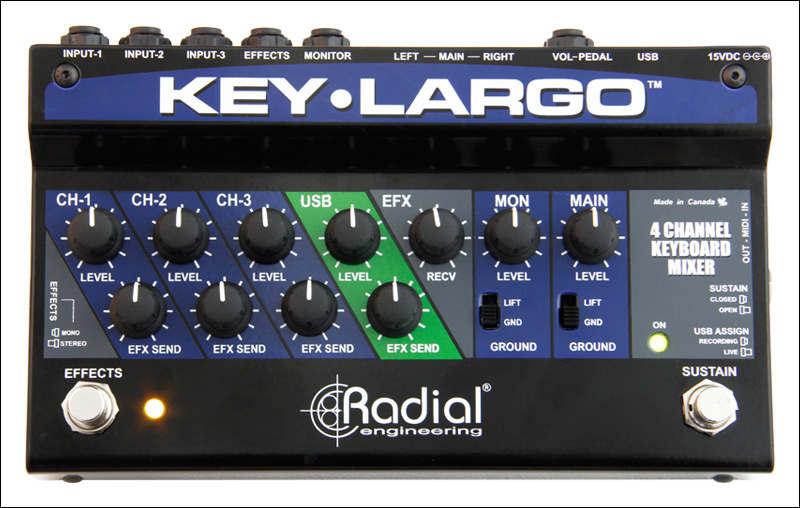

Radial Engineering Key-Largo
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Radial Engineering Key-Largo is a unique device that combines a multi-channel keyboard mixer with the performance attributes of real-time footswitch control and a stereo direct box.

Designed for stage use, the ultra compact design features three dual ¼" analog inputs for standard performance keyboards along with a USB interface to connect a laptop when using a soft-synth. Each stereo input is equipped with an individual level control for quick onstage adjustments along with an effects loop to interface and external multi-effects device. The effects loop can then be turned on or off using the built-in footswitch to activate an echo or reverb when soloing. The effects bus is stereo but may be summed mono when using guitar style pedals. To add even more fun to the performance, a built-in sustain footswitch lets you connect the Key-Largo to your master keyboard or digital piano using a standard guitar cable, eliminating the need to bring a separate sustain footswitch to the gig.

As with all Radial products, the Key-Largo is made tough and sounds great! It features solid 14-gauge steel construction with steel shafted potentiometers and switches to handle the abuse of being on the road. Inside, a switch-mode power supply elevates the rail voltage for extra headroom to handle the most dynamic digital keyboards and fattest analog synths. Separate monitor outputs allow the artist to adjust the level on-stage while the balanced XLR main outputs provide a separate DI connection to the PA system. The main outputs are transformer isolated to eliminate hum and buzz caused by ground loops and all outputs are equipped with a ground lift switch to further abate noise.

With both USB and MIDI connectivity, the Key-Largo easily integrates with all types of keyboard setups. And the high quality 24bit/96kHz converters make it ideal for recording tracks when on the road.

Radial Engineering Key-Largo Features:

  • Three analogue stereo inputs for keyboards
  • Digital USB connection for laptop soft-synth
  • Sustain footswitch and effects loop with footswitch
  • Balanced DI out for the PA and monitor out for stage
  • Controls - Boost: Input level Ch 1-3, USB input level, EFX send/receive, Main/monitor output level
  • Switches: Momentary sustain, Effects on/off, Effects mono/stereo, Ground lift, Sustain closed/open, USB assign
  • Effects Loop: ¼ send and return jacks
  • LED Indicators: Large 3mm OD ultra-bright LEDs

Radial Engineering Key-Largo Specifications:

  • Audio Circuit Type: Active circuit with audio-grade operational amplifiers
  • Number of Channels: 3x stereo analog inputs, 1xstereo USB input, 2x stereo analog outputs
  • Frequency Response: 20Hz - 20kHz ± 0.5dB
  • Noise Floor: -91dBu
  • Clip Level - Input: +12dBu
  • Clip Level - Output: +24dBu
  • Maximum Gain - Input to Output: +12dBu
  • Total Harmonic Distortion: <0.005% @ 1kHz
  • Input Impedence - Analog Inputs: 20k Ohms
  • Input Impedence - FX Return: 50k Ohms
  • Input Impedence - Volume Return: 485k Ohms
  • Output Impedence - XLR: 300 Ohms
  • Output Impedence - ¼: 450 Ohms
  • Output Impedence - FX Send: 1k Ohms
  • Output Impedence - Volume Send: 300 Ohms
  • General:
    • Power: 260mA, 15VDC (center pin positive)
    • Construction: 14-gauge steel
    • Finish: Durable Powder Coat
    • FCC Approval: Complies with section 15 of the FCC rules
    • Conditions: For indoor use at temperatures between +5°C and +40°C
