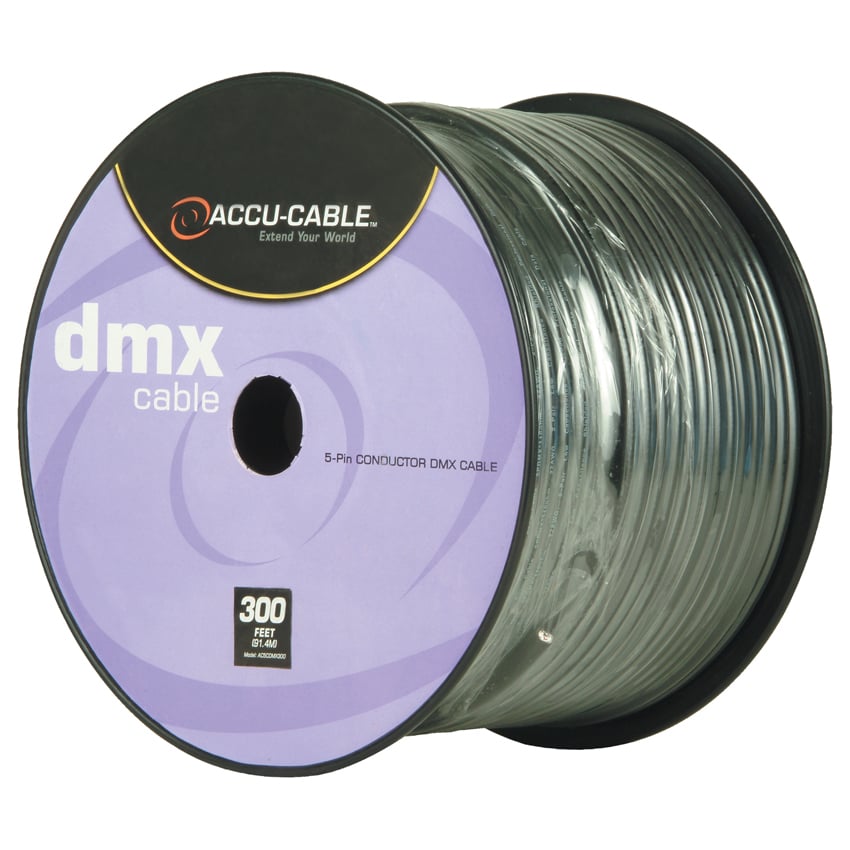

Accu-Cable AC5CDMX300
300 ft. Spool of 5-Pin DMX Cable

OUR PART #:  AC5CDMX300

The Accu-Cable AC5DMX300 is a 300-foot spool of 5-Pin DMX cable featuring 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation...
Learn More
Our Price: $184.07
List Price: $343.95
You save 46%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Accu-Cable AC5CDMX300
Qty:
In Stock

Similar Products

The Accu-Cable AC5DMX300 is a 300-foot spool of 5-Pin DMX cable featuring 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, a polyethylene inner jacket, Duofoil® (100% coverage), plus a tinned copper braid shield (85% coverage).

Accu-Cable AC5DMX300 5-Pin XLR Cable Specifications:

Physical Characteristics:

  • Conductor:
    • Number of Pairs: 2
    • Total Number of Conductors: 4
    • AWG: 22
    • Stranding: 0.15 x 19
    • Conductor Diameter: 0.0354"
    • Conduct or Material: TC-Tinned Copper
  • Insulation Material PE Polyethylene
  • Lay Length:
    • Lay Length: 1.1"
    • Direction: Left Hand Lay
    • Twists: 10.9 per foot
  • Inner Jacket:
    • Inner Jacket Material: PE-Polyethylene
    • Inner Jacket Diameter: 0.055"
    • Pair Color Code: Green/Black/Red/White
  • Outer Shield:
    • Outer Shield Trade Name: Duofoil®
    • Outer Shield Type: Tape/Braid
  • Outer Shield Material:
    • Layer Number: 1
      • Material Trade Name: Duofoil®
      • Type: Tape
      • Material: Aluminum Foil-Polyester
      • Coverage: 100%
    • Layer Number: 2
      • Material Trade Name: Duofoil®
      • Type: Braid
      • Material: TC-Tinned Copper
      • Coverage: 85%
  • Outer Jacket Material: PVC-Polyvinyl Chloride
  • Overall Nominal Diameter: 0.295"

Mechanical Characteristics:

  • Operating Temperature Range: (-30ºC to +75ºC)
  • Bulk Cable Weight: 50 lbs/1000 ft.
  • Minimum Bend Radius (Install): 3.5"
  • Maximum Recommended Pull Tension: 22 lbs

Electrical Characteristics:

  • Nominal Characteristic Impedence: 110 Ohms
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft
  • Nominal Cap Cond. To Other Cond. & Shield @ 1KHz: 23 pF/ft
  • Nominal Velocity of Propagation: 76%
  • Nominal Delay: 1.6 Nanoseconds per foot
  • Nominal Conductor DC Resistance @ 20ºC: 24 Ohms/1000ft
  • Nominal Outer Shield D C Resistance @ 20ºC: 15 Ohms/1000 ft
  • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100ft
  • Maximum Recommended Current: 2.1 Amps per conductor @ 25ºC
