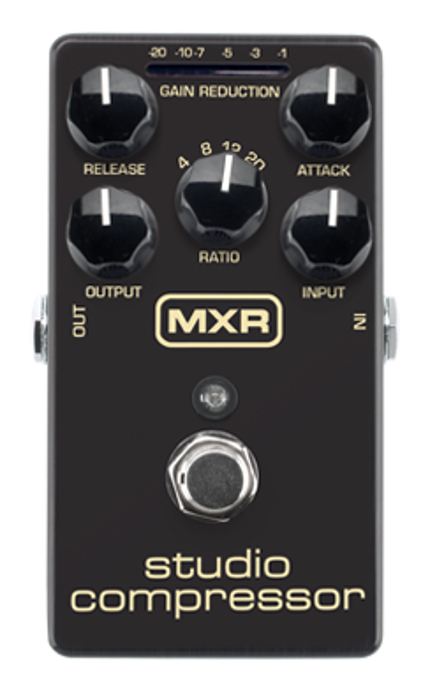

MXR Pedals M76 Studio Compressor
Effects Pedal

OUR PART #:  M76-MXR

MXR's M76 Studio Compressor features Attack, Release, Ratio, Input, and Output controls to allow fine-tuning of your compression level right on stage.
Learn More
Our Price: $189.99
List Price: $271.42
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MXR Pedals M76 Studio Compressor
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

MXR's M76 Studio Compressor features Attack, Release, Ratio, Input, and Output controls to allow fine-tuning of your compression level right on stage. An LED gain-reduction status meter provides visual feedback, and the whole package comes in a durable, lightweight aluminium housing that is the size of a Phase 90.

MXR M76 Studio Compressor Features:

  • Classic studio compressor in a Phase 90-sized pedal
  • CHT™ Constant Headroom Technology for clear, clean performance
  • Ten Gain Reduction status LEDs
  • True bypass

MXR M76 Studio Compressor Specifications:

  • Input Impedance: 1 Mohm
  • Output Impedance: 600 ohms
  • Max Input Level: +14 dBV
  • Max Output Level: +8.5 dBV
  • Frequency Response: ±1 dB, 20 Hz - 20 kHz
  • Noise Floor: -90 dBV
  • THD: < 0.5%
  • Gain: 31 dB
  • Compression Ratio: 4:1, 8:1, 12:1, 20:1
  • Attack Time: 20 µs to 800 µs
  • Release Time: 50 ms to 1.1 s
  • Bypass: True Hardwire
  • Current Draw:
    • LEDs OFF: 14 mA
    • LEDs ON: 19 mA
  • Power Supply: 9 volts DC
