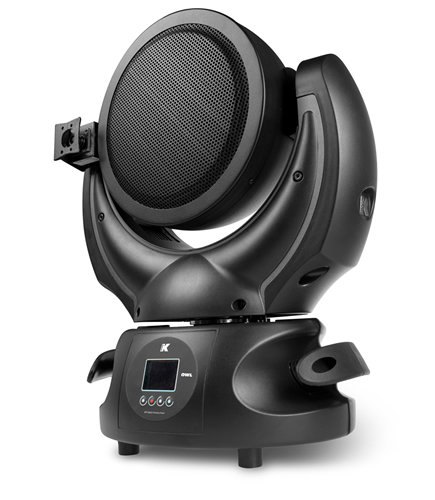

K-Array KW8 Owl 8" Coaxial Self-Powered Audio Moving Head with Onboard HD Camera

OUR PART #: KW8

Copied to clipboard

The K-Array KW8 Owl is an 8" coaxial moving audio head with onboard camera monitoring. ...Read more

K-Array KW8 Owl 8" Coaxial Self-Powered Audio Moving Head With Onboard HD Camera Image 1
K-Array KW8 Owl 8" Coaxial Self-Powered Audio Moving Head With Onboard HD Camera Image 2
K-Array KW8 Owl 8" Coaxial Self-Powered Audio Moving Head With Onboard HD Camera Image 3
K-Array KW8 Owl 8" Coaxial Self-Powered Audio Moving Head With Onboard HD Camera Image 4
K-Array KW8 Owl 8" Coaxial Self-Powered Audio Moving Head With Onboard HD Camera
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The K-Array KW8 Owl is an 8" coaxial moving audio head with onboard camera monitoring. The Owl provides up to 500 W of power, 120 dB of SPL and a frequency range from 60 Hz to 19 Khz. It is an ideal solution for a range of applications including live ‘on stage’ monitoring, theme park installations, airports, train stations, CCTV home security, DJ effects and theatre installations, however, the flexibility of the Owl will offer an almost limitless number of solutions and in some cases reduce the amount of speakers required for one installation. The dedicated software gives you the ability to control the movement with sound and video together allowing you to create scenes and setups via DMX, audio balanced signal and the SDI camera on board.

K-Array KW8 Owl Features:

  • Coaxial 8” transducer
  • High Performance 126 dB SPL (Peak)
  • USB DMX Converter
  • Self Powered
  • On board camera
  • Dedicated software can create scenes and fully control the speaker ormultiple speakers

K-Array KW8 Owl Specifications:

  • Acoustics
    • Power Handling: 300 + 50 W
    • Max Power: 500
    • Frequency Range (-10 dB): 120 dB (cont.) - 126 dB (peak)
  • Coverage
    • Horizontal: 70°
    • Vertical: 70°
  • Crossover
    • Type: DSP Controlled
    • Frequency: 1200 Hz
  • Transducers
    • Type: 8" Neodymiun magnet Woofer with 2.5" voice coil Neodymium magnet Compression Driver with 1" Voice Coil
  • Audio IN/OUT
    • Analog Connectors: 1 male and 1 female 3-pin balanced XLR
  • Remote Control Input
    • Connectors 1 USB
  • Video
    • Connectors: (1) BNC output
    • Camera:
      • HD-SDI Mini Camera
      • Wide angle lens
      • Resolution Output: Full HD
      • Sensor: Sony Exmor CMOS 2.1 Megapixel
    • DMX
      • Connector: 1 male and 1 female 3-pin balanced XLR
      • Channels: 11
    • Amplifier
      • Type: 1 module class D - DSP controlled
      • Nominal Power Output: (1) 450 W @ 4 Ohms 1% THD + NOISE
      • Protections: Dynamic Limiter, Over Current, Over Temperature Short Circuit
      • Frequency response: 10 Hz - 25 kHz (+ / - 3 dB) for 1 W @ 8 Ohms
      • Damping factor @ 100 Hz: > 500
      • THD+N 1kHz, 1 w: 0.010%
    • AC Power
      • Connector: (1) Powercon
      • Nominal voltage: 115 / 230 Vac
      • Operating Range: 85 - 130 Vac / 190 - 240 Vac at 50-60 Hz
    • Consumption
      • Efficiency: > 80 % (typical)
      • 1/8 rated power (pink noise) @ 4 Ohms: 110 W
    • Certification
      • IP: 20
    • Physical
    • Dimensions: 35.9 x 45.9 x 21.8 cm (14.1 x 18.1 x 8.6 in)
    • Weight: 10 gg (22.1 lbs)
