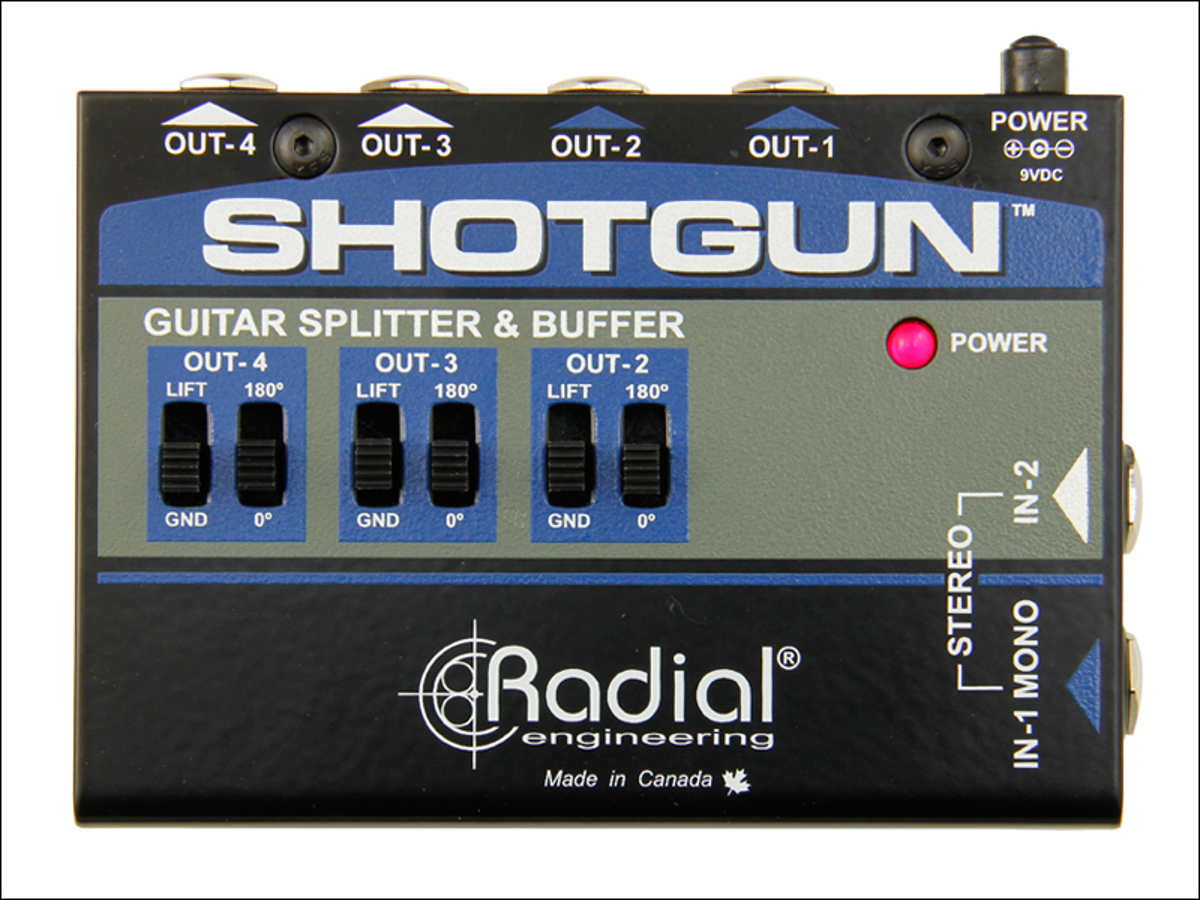

Radial Engineering Shotgun 4-Channel Guitar Amp Splitter

Radial Engineering's Shotgun™ is a compact guitar-level signal buffer that fits on any pedalboard and is designed to easily drive up to four amplifiers simultaneously.

The 4-channel amp driver features two inputs with a switching jack on input 2 that is capable of changing the architecture from a 1x4 mono distribution system to a 2x2 stereo setup. The Consistent Load Compensation circuit retains a stable input impedance to ensure the character of the signal remains unchanged regardless if being used on one or two sources.

A carefully designed low noise buffer circuit with a full-surface ground plane delivers your toneup to 50 feet without noise. This is augmented with isolation transformers on outputs 2, 3 and 4 to help eliminate the nasty buzz and hum caused by ground loops when multiple amps are connected together.

Features

• Configurable for 1x4 mono or 2x2 stereo
• Isolated outputs eliminate ground loops
• Buffered outputs drive extra long cables
• CLC™ Consistent Load Compensation circuit
• 180° polarity switches and ground lifts on outputs 2, 3, and 4

Specifications

• Audio Circuit Type: Buffered signal distribution with 3 isolated outputs
• Frequency Response: 20 Hz - 20 kHz
• Dynamic Range: 92 dB
• Gain: 0 / -0.2 dB
• Clip Level: +4 dBu
• Noise Floor: -86 dBu
• Equivalent Input Noise (EIN): -90 dBu
• Maximum Input: +8 dBu
• Total Harmonic Distortion: < 0.02% @ -20 dB
• Inter-modulation Distortion: ~0.02%
• Input Impedance: 220 kΩ
• Output Impedance: 1.8 kΩ
• General
  • Power: 9 VDC - 25mA, center negative
  • Construction: 14-gauge steel chassis and outer shell
  • Dimensions (H x W x D): 1.37" x 4.5" x 3.5" (34.80 x 114.3 x 91.95 mm)
  • Weight: 1.1 lbs (0.49 kg)
  • Conditions: For use in dry locations only between 5°C and 40°C
