EBS OctaBass
Studio Edition Pedal

OUR PART #:  EBS-SE-OC

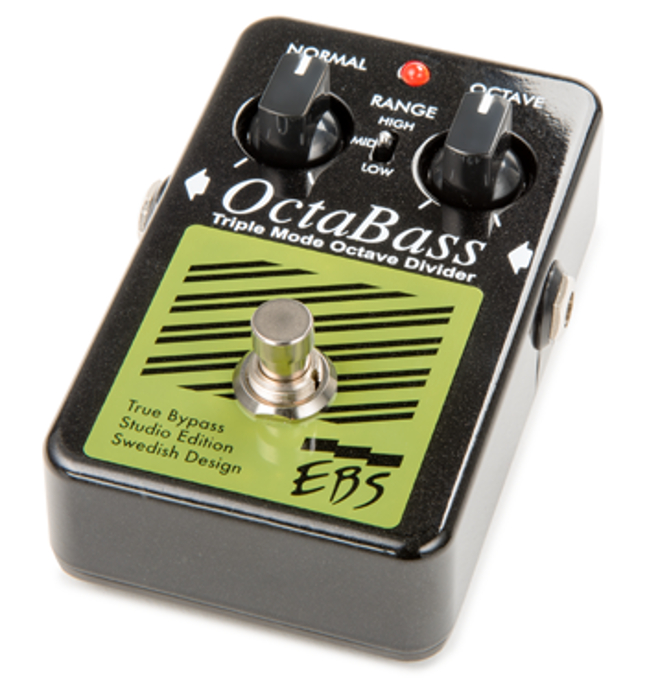

The EBS OctaBass analog octave divider creates a single note one octave below the pitch of the played note.
Learn More
Our Price: $169.99
Write the first review.
EBS OctaBass
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The EBS OctaBass analog octave divider creates a single note one octave below the pitch of the played note. The fast tracking allows rapid playing techniques to be accurately reproduced while also recognizing two or three-note chords with the OctaBass triggering on only the lowest note.

EBS OctaBass Features:

  • Controls
    • Normal: Controls the mix volume for the original "bypassed" sound, from 0% (off) to 100% (max).
    • Octave: Sets the amount for the octave divided signal, from 0% (off) to 100% (max).
    • Range
      • High: This position gives the most synthesized sound character, useful for rapidly changing tonal character. Performs very well on guitar, piccolo bass and other instruments.
      • Mid: The classic octave divider by EBS. Simply the standard to which all others are compared. For 4, 5, and 6-string basses.
      • Low: This position adds extra smooth sub-bass to your sound. this position is suitable when you wish to add those extra low harmonics without altering your basic sound character.
    • Indicator LED: Indicates when the pedal is active.
    • Foot Switch: Switches the pedal on or off.

EBS OctaBass Specifications:

  • Nominal Input Level: -8 dBv
  • Input Impedance: 700 kohms
  • Dry Bandwidth: +0 / -2 dB  20 - 20k Hz
  • Dry Level: min / max  -infinity / 0 dB
  • Dry Noise Level: -96 dBv
  • Octaver Bandwidth: +0 / -3 dB  10 - 110 Hz
  • Octaver Level Gain: min / max  -infinity / 12 dB min
  • Octaver Filter Slope: 18 dB/oct. Low pass
  • Low Pass Triggering Threshold: -70 dBv @200 Hz
  • Dimensions (LxWxH): 2.8" x 4.5" x 1.4” (70 x 115 x 35 mm)
  • Weight: 0.88 lb (400g)
  • Bypass: True Bypass
  • Power Requirements: 9-12 V DC Regulated, 30 mA max
