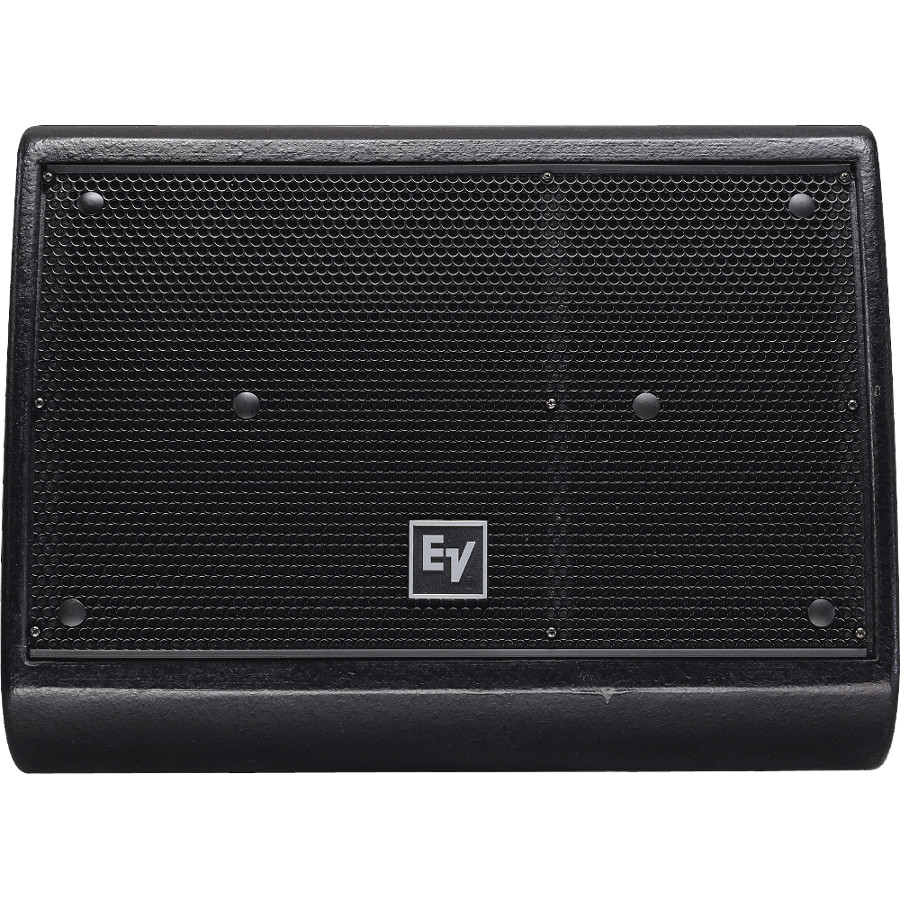

Electro-Voice XW12A
12-Inch Two-Way Floor Monitor

OUR PART #:  XW12A

The Electro-Voice XW12A is a 12-inch two-way floor monitor. It is ultracompact for all-size stages and has two integrated handles for easy transport.
Learn More
Our Price: $3,169.00
Write the first review.
Electro-Voice XW12A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Electro-Voice XW12A is a 12-inch two-way floor monitor. It is ultracompact for all-size stages and has two integrated handles for easy transport.

Electro-Voice XW12A Features:

  • Two-way, high-output design
  • Vented LF enclosure
  • Two symmetrical 55º enclosure angles
  • Ultracompact for all-size stages
  • 3-inch ND6-16 titanium/neodymium HF compression driver
  • 80º x 55º Constant-directivity horn
  • Neutrik Speakon® paralleled pass-through connectors on each end
  • Two integrated handles
  • DL12ST woofer with Ring-Mode Decoupling for vocal clarity

Electro-Voice XW12A Specifications:

  • Axial Sensitivity (SPL, 1 W @ 1 m): 98 / 110 dB LF /HF
  • Chassis Size: 304.8 mm (12")
  • Color: Black
  • Directivity Index: 11.6 dB (+ 2.3 / -2.1 dB) 1,200 -16,000 Hz
  • Input Connections: (2) four-pin Speakon
  • Long-Term Power Handling: 300 / 75  W  LF /HF
  • Short-Term Power Handling: 1200 / 300 W LF / HF
  • Frequency Response (-3 dB): 65 - 18000 Hz
  • Frequency Response (-10 dB): 50 - 20000 Hz
  • Internal Crossover: No
  • Recommended High-Pass Frequency: System controllerdetermined Hz
  • Sensitivity 1 W / 1 m: 98 dB
  • Max. SPL / 1 m (calc): 129 / 135  dB  LF /HF
  • Coverage (Nominal -6 dB) H: 55 ° Const.-dir. horn
  • Coverage (Nominal -6 dB) V: 80 ° Const.-dir. horn
  • Rotatable Horn: No
  • LF Transducer: 12-inch (DL12ST)
  • LF Power Handling: 300 Watts
  • HF Power Handling: 75 Watts
  • LF Nominal Impedance: 8 Ohms
  • HF Transducer: 1.4-inch (ND6-16)
  • HF Nominal Impedance: 16 Ohms
  • Crossover Frequency: Factory preset Hz
  • Minimum Impedance: 8.2 / 10.5  Ohms  LF / HF
  • Enclosure Material: 13-ply birch plywood with Futura
  • Flying: No
  • Outdoor: No
  • Dimensions (H x W x D): 534 x 449 x 313 mm (21.02 x17.68 x 12.32 in)
  • Weight Net: 21.9 kg (48.28 lbs)
