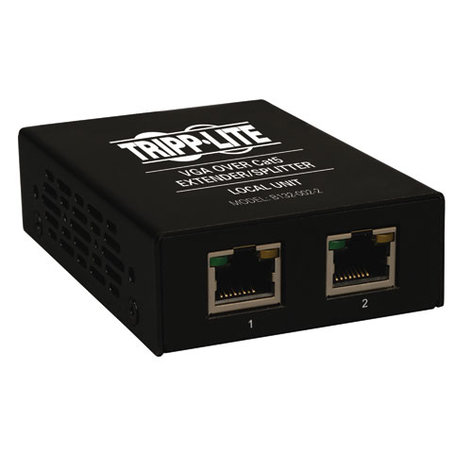

Tripp Lite B132-002-2
2 Port VGA/Cat5 Extender

OUR PART #  B132-002-2

Our Price: $88.74
List Price: $115.20
You save 23%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Tripp Lite B132-002-2 VGA over Cat5/Cat6 extender splits a single VGA signal into two.  B132-002-02 extends a 1920 x 1440 (60Hz) signal up to 500 feet. You can further expand the range and the number of monitors by adding B132-002-02 repeaters.

Tripp Lite B132-002-02 Extender Includes:

  • Mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted.

Tripp Lite B132-002-02 Extender Features:

  • Splits a single VGA signal into 2
  • A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor
  • Extends a 1920 x 1440(60Hz) signal up to 500 ft., or a 1024 x 768(60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY(Cat5) and N222-01K-GY(Cat6)
  • EDID copy feature ensures optimal display compatibility
  • The range and number of monitors can be further expanded by adding B132-110 repeater units
  • Connect up to 4 remote units in a repeater chain(3 repeaters and 1 receiver), with a monitor at each location
  • A 1920 x 1440(60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768(60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Ideal for digital signage situations, such as retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

Tripp Lite B132-002-02 Extender Specifications:

  • AC Adapter:
    • Input: 100-240V, 50/60Hz, 0.5A
    • Output: 5V, 2A, 5'
  • Shipping Weight (lbs.): 1.0
  • Unit Dimensions (HxWxD): 1" x 2.5" x 3.7"
  • Unit Weight (lbs.): 0.45
  • Color: Black
  • Connector A: HD15 (FEMALE)
  • Connector B: Two RJ45 (FEMALE)
  • Ports: 2
  • Product Warranty Period (Worldwide): 1-year limited warranty
