Pathway Connectivity RDM Installation Splitter
8-Way DMX/RDM Installation Splitter

OUR PART #  P4814

Our Price: $1,310.43
List Price: $1,415.00
You save 7%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

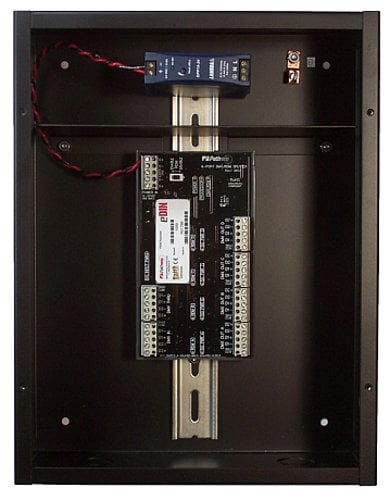

The RDM Installation Splitter (model no. 4814) from Pathway Connectivity is an 8-way RDM-enabled opto-splitter for permanent installations, mounted in NEMA 1 enclosures, complete with conduit knockouts and terminal strips for fast, easy installation.

Pathway Connectivity RDM Installation Splitter Features:

  • Outputs fully isolated from each other
  • Modules are mounted and pre-wired for quick installation
  • Up to 3 eDIN 1009 DMX/RDM Splitters - up to 12 total outputs
  • Up to 3 inputs, or daisy-chain one source through all the modules
  • Removable terminal strip connectors
  • No fuses - self-resetting data links
  • Fully supports the E1.20 Remote Device Management (RDM) talkback extension to DMX512 on all ports
  • RDM supported on pass-through port as well
  • RDM enable/disable switch
  • 2500V opto-isolation between all ports
  • 250V fault protection on all DMX ports
  • Wide range power supply
  • Power, DMX present, RDM present indicators
  • ETL listed

Pathway Connectivity RDM Installation Splitter Specifications:

  • Model number: 4814
  • Power supply: UL listed, universal input 100-240 VAC, 50/60 Hz
  • Isolation: 2500V opto-isolation input to output; 250V fault protection
  • Dimensions: 10.25" x 23.25" x 4.5" (260 x 509 x 120 mm)

Pathway Connectivity RDM Installation Splitter
8-Way DMX/RDM Installation Splitter

OUR PART #  P4814

Product Information:

The RDM Installation Splitter (model no. 4814) from Pathway Connectivity is an 8-way RDM-enabled opto-splitter for permanent installations, mounted in NEMA 1 enclosures, complete with conduit knockouts and terminal strips for fast, easy installation.

Pathway Connectivity RDM Installation Splitter Features:

  • Outputs fully isolated from each other
  • Modules are mounted and pre-wired for quick installation
  • Up to 3 eDIN 1009 DMX/RDM Splitters - up to 12 total outputs
  • Up to 3 inputs, or daisy-chain one source through all the modules
  • Removable terminal strip connectors
  • No fuses - self-resetting data links
  • Fully supports the E1.20 Remote Device Management (RDM) talkback extension to DMX512 on all ports
  • RDM supported on pass-through port as well
  • RDM enable/disable switch
  • 2500V opto-isolation between all ports
  • 250V fault protection on all DMX ports
  • Wide range power supply
  • Power, DMX present, RDM present indicators
  • ETL listed

Pathway Connectivity RDM Installation Splitter Specifications:

  • Model number: 4814
  • Power supply: UL listed, universal input 100-240 VAC, 50/60 Hz
  • Isolation: 2500V opto-isolation input to output; 250V fault protection
  • Dimensions: 10.25" x 23.25" x 4.5" (260 x 509 x 120 mm)
