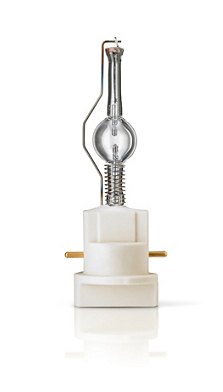

Philips MSR-PLATINUM-35 Lamp
MSR Broadway #245977

OUR PART #  MSR-PLATINUM-35

Our Price: $292.60
List Price: $418.00
You save 30%! (Low Price Guarantee)
In Stock

Philips MSR Platinum 35 is an incredibly powerful, bright and lightweight design. The MSR Platinum 35 lamp system provides a powerful and innovative tool to create intense lighiting and delivers the same good light quality as other MSR lamps.

Philips MSR Platinum 35 Specifications:

  • General Information:
    • Cap-Base: PGJX36
    • Operating Position: Universal
    • Main Application: Studio/Theatre/TV
    • Life To 50% Failures (Nom): 1000 h
  • Light Technical:
    • Color Code: 2
    • Initial lumen (Min): 51500 lm
    • Initial lumen (Nom): 57800 lm
    • Chromaticity Coordinate X (Nom): 0.295
    • Chromaticity Coordinate Y (Nom): 0.313
    • Correlated Color Temperature (Nom): 7750 K
    • Chromaticity Coordinate X (SO) (Max): 0.3084
    • Chromaticity Coordinate X (SO) (Min): 0.2913
    • Chromaticity Coordinate X (SO) (Nom): 0.2998
    • Chromaticity Coordinate Y (SO) (Max): 0.3345
    • Chromaticity Coordinate Y (SO) (Min): 0.3063
    • Chromaticity Coordinate Y (SO) (Nom): 0.3204
    • Color Rendering Index (SO) (Min): 60.5
    • Color Rendering Index (SO) (Nom): 64.5
    • Color Temperature (SO) (Max): 8050 K
    • Color Temperature (SO) (Min): 6650 K
    • Color Temperature (SO) (Nom): 7350 K
    • Luminous Efficacy (SO) (Min): 38 lm/W
    • Luminous Efficacy (SO) (Nom): 42.5 lm/W
    • Luminous Flux (SO) (Min): 31500 lm
    • Luminous Flux (SO) (Nom): 36500 lm
    • Luminous Efficacy (rated) (Nom): 72 lm/W
    • Color Rendering Index (Nom): 73
  • Operating and Electrical:
    • Power (Rated) (Nom): 800 W
    • Lamp Current (Nom): 12.3 A
    • Ignition Supply Voltage (Min): 220 V
    • Ignition Time (Nom): 10 s
  • Dimmable: Yes
  • Cap-Base Information: PGJX36
  • Luminaire Design Requirements:
    • Bulb Temperature (Max): 950 °C
    • Pinch Temperature (Max): 450 °C
  • Product Data:
    • Full product code: 871829112006300
    • Order product name: MSR Platinum 35 1CT
    • EAN/UPC - Product: 8718291120063
    • Order code: 245977
    • Numerator - Quantity Per Pack: 1
    • Numerator - Packs per outer box: 16
    • Material Nr. (12NC): 928190905114
    • Net Weight (Piece): 0.053 kg

Philips MSR-PLATINUM-35 Lamp
MSR Broadway #245977

OUR PART #  MSR-PLATINUM-35

Product Information:

Philips MSR Platinum 35 is an incredibly powerful, bright and lightweight design. The MSR Platinum 35 lamp system provides a powerful and innovative tool to create intense lighiting and delivers the same good light quality as other MSR lamps.

Philips MSR Platinum 35 Specifications:

  • General Information:
    • Cap-Base: PGJX36
    • Operating Position: Universal
    • Main Application: Studio/Theatre/TV
    • Life To 50% Failures (Nom): 1000 h
  • Light Technical:
    • Color Code: 2
    • Initial lumen (Min): 51500 lm
    • Initial lumen (Nom): 57800 lm
    • Chromaticity Coordinate X (Nom): 0.295
    • Chromaticity Coordinate Y (Nom): 0.313
    • Correlated Color Temperature (Nom): 7750 K
    • Chromaticity Coordinate X (SO) (Max): 0.3084
    • Chromaticity Coordinate X (SO) (Min): 0.2913
    • Chromaticity Coordinate X (SO) (Nom): 0.2998
    • Chromaticity Coordinate Y (SO) (Max): 0.3345
    • Chromaticity Coordinate Y (SO) (Min): 0.3063
    • Chromaticity Coordinate Y (SO) (Nom): 0.3204
    • Color Rendering Index (SO) (Min): 60.5
    • Color Rendering Index (SO) (Nom): 64.5
    • Color Temperature (SO) (Max): 8050 K
    • Color Temperature (SO) (Min): 6650 K
    • Color Temperature (SO) (Nom): 7350 K
    • Luminous Efficacy (SO) (Min): 38 lm/W
    • Luminous Efficacy (SO) (Nom): 42.5 lm/W
    • Luminous Flux (SO) (Min): 31500 lm
    • Luminous Flux (SO) (Nom): 36500 lm
    • Luminous Efficacy (rated) (Nom): 72 lm/W
    • Color Rendering Index (Nom): 73
  • Operating and Electrical:
    • Power (Rated) (Nom): 800 W
    • Lamp Current (Nom): 12.3 A
    • Ignition Supply Voltage (Min): 220 V
    • Ignition Time (Nom): 10 s
  • Dimmable: Yes
  • Cap-Base Information: PGJX36
  • Luminaire Design Requirements:
    • Bulb Temperature (Max): 950 °C
    • Pinch Temperature (Max): 450 °C
  • Product Data:
    • Full product code: 871829112006300
    • Order product name: MSR Platinum 35 1CT
    • EAN/UPC - Product: 8718291120063
    • Order code: 245977
    • Numerator - Quantity Per Pack: 1
    • Numerator - Packs per outer box: 16
    • Material Nr. (12NC): 928190905114
    • Net Weight (Piece): 0.053 kg
