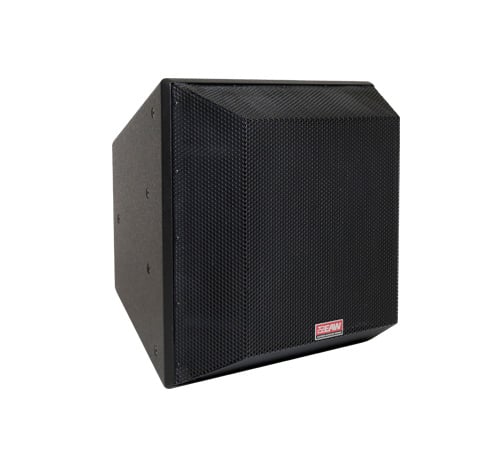

EAW-Eastern Acoustic Wrks QX394
Two-Way Trapezoidal Speaker, Black

OUR PART #:  QX394-BLACK

The EAW QX394 is a two-way trapezoidal enclosure that features a high compression driver with a 90° x 45° constant directivity horn (one of six horn patterns available...
Learn More
Our Price: $3,493.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks QX394
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EAW QX394 is a two-way trapezoidal enclosure that features a high compression driver with a 90° x 45° constant directivity horn (one of six horn patterns available, ranging from 60° x 45° to 120° x 60°). It also has four Phase Aligned™ 10" low frequency transducers arranged as vertical and horizontal pairs. Because the four low frequency transducers surround the high compression driver symmetrically in the horizontal and vertical planes, response across the full frequency spectrum appears to originate from a single point in space.

EAW's QX300 Series design delivers great output and renowned broadband pattern control similar to the QX500 Series but in a new compact two-way format. Its large 4" voice coil high frequency compression driver makes it possible to cover the mid-range frequencies. Its high output level makes it appropriate for medium throws in arenas and stadiums or high-energy applications like live music venues or dance clubs. Its broadband pattern control lets it tame hostile acoustical environments like cathedrals or highly reverberant public spaces. And its exceptional fidelity pleases the most critical listeners in concert halls and performing arts centers.

EAW QX394 Features:

  • High output, single or bi-amplified, two-way performance
  • Broadband pattern control
  • Ultra-efficient HF compression driver
  • Four Phase Aligned 10" cone transducers (vertical and horizontal pairs)
  • Installation flexibility, compact size

EAW QX394 Specifications:

  • Configuration
    • Subsystem:
      • Transducer:  LF - (4) 10" cones; HF - (1) 1.4" exit, (1) 4" voice coil compression driver
      • Loading: LF - Phase-Aligned; HF - Horn-loaded
      • Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
      • External Signal Processing: DSP w/EAW Focusing
  • Performance
    • Operating Range (-10 dB): 66 – 20 kHz
    • Axial Sensitivity (1W @ 1m):
      • LF/HF: 107dB SPL
      • LF: 102dB SPL
      • HF: 109dB SPL
    • Power Handling/Impedance:
      • LF: 1800 W @ 2 Ohms (single amp), 900 W @ 4 Ohms (2x pairs)
      • HF: 150 W @ 8 Ohms
    • Calculated Maximum Output Peak:
      • LF/HF: 142dB SPL
      • LF: 141dB SPL
      • HF: 137dB SPL
    • Calculated Maximum Output Long Term:
      • LF/HF: 136dB SPL
      • LF: 135dB SPL
      • HF: 131dB SPL
    • Nominal Coverage:
      • Horizontal: 90º
      • Vertical: 45º
    • Powering:
      • Full range: LF/HF
      • Bi-amp: LF, HF
    • Dimensions:
      • Front Dimensions: 23.7" H x 23.7" W (602 x 602 mm)
      • Rear Dimensions: 13.4" H x 13.4" W (341 x 341 mm)
      • Depth: 19.9" (505 mm)
      • Trap. Angle (per side): 20º
      • Trap. Angle (top and bottom): 20º
    • Weight:
      • Net: 94 lbs (43 kg)
      • Shipping: 105 lbs (48 kg)
