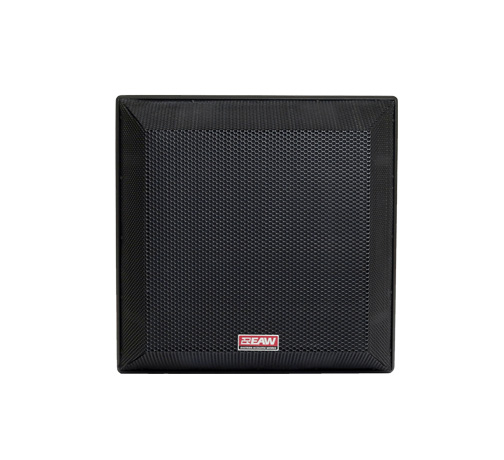

EAW-Eastern Acoustic Wrks QX366
2-Way Trapezoidal Speaker, Black

OUR PART #:  QX366-BLACK

The EAW QX366 is a two-way trapezoidal enclosure that features a high compression driver with a 60° x 60° constant directivity horn (one of six horn patterns available...
Learn More
Our Price: $3,493.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks QX366
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EAW QX366 is a two-way trapezoidal enclosure that features a high compression driver with a 60° x 60° constant directivity horn (one of six horn patterns available, ranging from 60° x 45° to 120° x 60°). It also has four Phase Aligned™ 10-in low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction based on their spacing to extend pattern control.

Users can select between single-amp and bi-amp operating modes.

EAW QX366 Features:

  • High output, single or bi-amplified, two-wayperformance
  • Broadband pattern control
  • Ultra-efficient HF compression driver
  • Four Phase Aligned™ 10-in cone transducers (verticaland horizontal pairs)
  • Installation flexibility, compact size

EAW QX366 Specifications:

  • Configuration
    • Subsystem:
      • Transducer:  LF 4. 10-in cone; HF 1. 1.4-in. exit, 4-in. voice coil compression driver
      • Loading: LF: Phase-Aligned™; HF: Horn-loaded
      • Amplifier Channels: Single-amp LF/HF; Bi-amp LF,HF
      • External Signal Processing: DSP w/EAW Focusing
  • Performance
    • Operating Range (-10 dB, Hz): 66 – 20 k
    • Axial Sensitivity (1W @ 1m, dB SPL):
      • LF/HF: 108
      • LF: 102
      • HF: 110
    • Power Handling/Impedance (Watts @ Ohms):
      • LF: 1800W @ 2 (single amp), 900W @ 4 (2x pairs)
      • HF: 150 W @ 8
    • Calculated Maximum Output Peak (dB SPL):
      • LF/HF: 143
      • LF: 141
      • HF: 138
    • Calculated Maximum Output Long Term (dB SPL):
      • LF/HF: 137
      • LF: 135
      • HF: 133
    • Nominal Coverage (degrees):
      • Horizontal: 60
      • Vertical: 60
    • Powering:
      • Full range: LF/HF
      • Bi-amp: LF, HF
    • Dimensions:
      • Height (Front): 23.7 inches (602 mm)
      • Height (Rear): 13.4 inches (341 mm)
      • Width (Front): 23.7 inches (602 mm)
      • Width (Rear): 13.4 inches (341 mm)
      • Depth: 19.9 inches (505 mm)
    • Weight:
      • Net: 94 lbs (43 kilograms)
      • Shipping: 105 lbs (48 kilograms)
