Product Overview

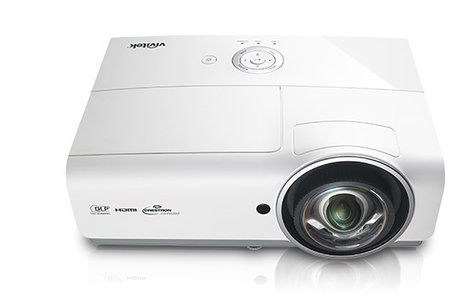

Vivitek's DX883ST ultimate short-throw projector offers high performance, high brightness and full 3D copability. The DX883ST 3D digital projector offer spectacular digital image, versatility and value. Vivitek's DX883ST is very easy to use with rapid start-up and shutdown and HDTV compatibility. The DX883ST short-throw projector features three HDMI inputs and HML to meet multiple device options, DLP® and BrilliantColor™ technologies, and long-life lamp promoting environment friendly operations.
Vivitek DX883ST Short-Throw Projector Includes:
- AC Power Cord
- VGA Cable
- Remote Control
- Batteries for Remote
- Lens Cap
- User's Manual (CD)
- Warranty Card
Vivitek DX883ST Short-Throw Projector Specifications:
- Brightness: 3300 Lumens
- Native Resolution: XGA (1024 x 768)
- Max. Resolution: WUXGA (1920 x 1200) at 60Hz
- Contrast Ratio: 15,000:1 (Full On/Off)
- Lamp Life and Type: ˜3500 / 5000 / 7000 Hours (Normal Mode / Eco Mode / Dynamic Eco mode),240W/190W
- Lamp Part #: 5811119560-SVV
- Display Type: Single 0.65" DLP® Technology by Texas Instruments
- Throw Ratio (±3%): 0.626 (Distance/Width)
- Image Size (Diagonal): 40" to 300" (Recommended 60" to 100")
- Projection Distance: 1.64' to 12.5' (0.5 to 3.8m), Recommended 2.50' to 4.18' (0.763 to 1.273m)Projection Lens: F = 2.8, f = 7.26mm at 77"
- Zoom Ratio: Fixed Lens, Manual Focus
- Aspect Ratio: 16:10 Native, 4:3 and 16:9 Compatible
- Offset: 114.3%
- Keystone Correction: ±40° Vertical, ±40 Steps
- Color Spectrum: 1.07 Billion
- Horizontal Scan Rate: 15, 31 to 91.4 KHz
- Vertical Scan Rate: 24 to 30, 47 to 120Hz
- Speaker: 20W Stereo (10W x 2)
- Remote Control: Full Featured IR Remote with Laser Pointer
- Projection Method: Table Top or Ceiling Mount (Front or Rear)
- Uniformity: 85%
- Computer Compatibility: WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
- 3D Video Compatibility: Yes (DLP® Link™, Full 3D from Blu-Ray or broadcasted via cable or satellite)
- Video Compatibility: SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
- Full 3D Video Compatibility: 720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing, Frame Sequential
- I/O Connection Ports: HDMI v1.4 (x2), HDMI/MHL, VGA-In, S- Video, Composite Video, VGA-Out, Audio-In (Mini-Jack), Audio-In (RCA), Audio-Out (Mini-Jack), Microphone-In (Mini-Jack), RJ45, RS-232c, 12V Trigger, USB Type A (Power only), Mini USB (Service)
- Security: Kensington® Lock Port
- Weight: 7.15 lbs (3.24kg)
- Dimensions (W x H x D): 12.36" x 9.50" x 4.96" (314 x 241 x 126 mm) with lens Noise Level 36dB/32dB (Standard/Economy Mode)
- Power:
- Supply: AC 100-240V, 50/60Hz
- Consumption: 310W (Normal Mode), 250W (Eco Mode),
- Operating Temperature: 41 to 104°F (5 to 40°C)
- Warranty: 5-Year Limited Parts/Labor, 1-Year Lamp
- UPC: 813097020567
