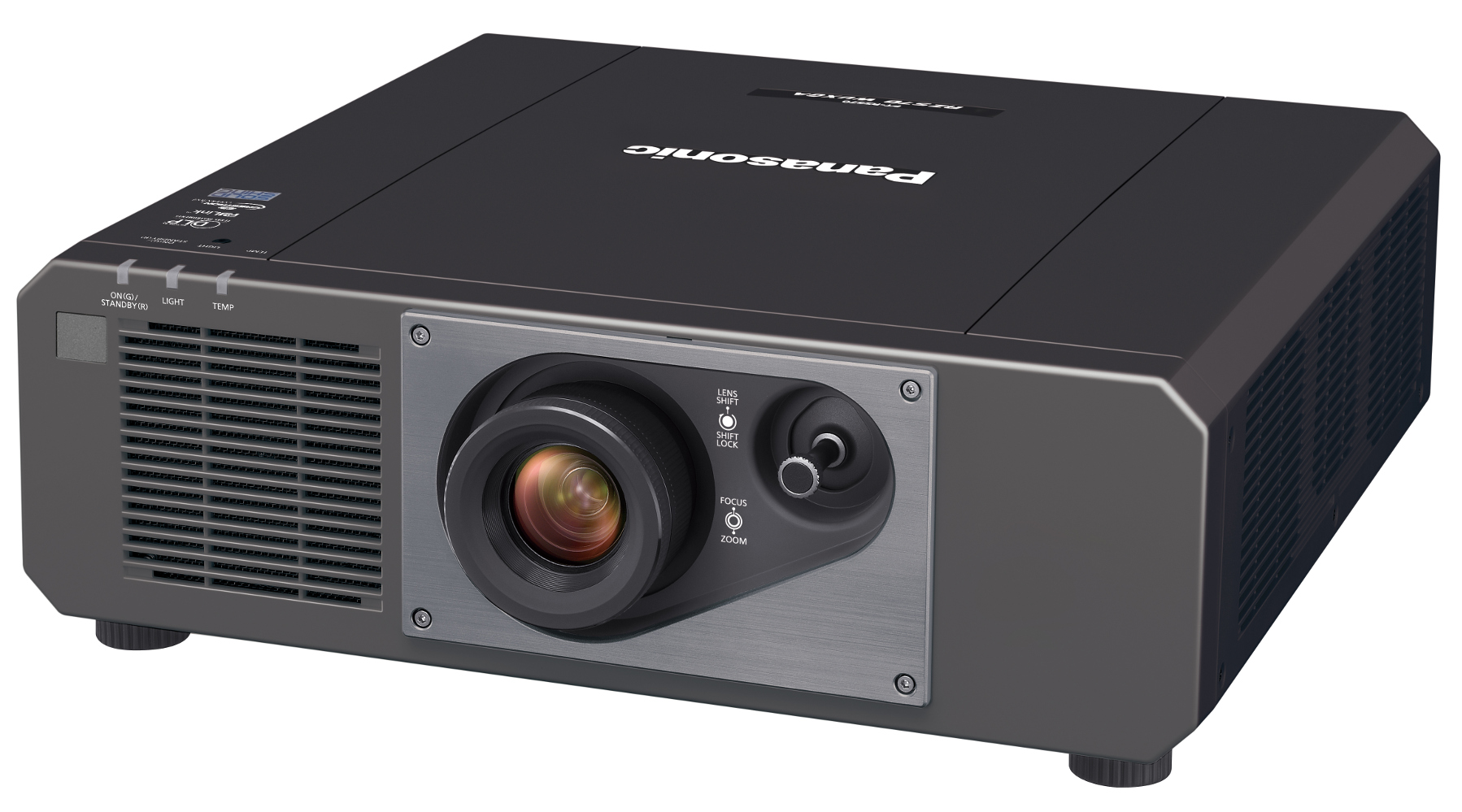

Panasonic PT-RZ570BU
5000 Lumens WUXGA 1-Chip DLP Projector in Black

OUR PART #  PTRZ570BU

Our Price: $4,899.00
List Price: $9,499.00
You save 48%!
Usually ships in 7-14 business days.

Recommended Accessories

Panasonic's PT-RZ570BU is a WUXGA 1-Chip DLP™ Projector that delivers 5,000 lumens of brightness for up to 20,000 hours of maintenance-free reliable operation. The PT-RZ570BU offers 360° free installation, 2X zoom lens, plus Digital Link compatibility for single cable connection, giving installation flexibility and functionality. This projector is excellent in mid-size classroom and meeting room settings.

Panasonic PT-RZ570BU Includes:

  • PT-RZ570BU Projector unit
  • Power cord with secure lock x 1 (x 2 for EU models)
  • Wireless remote control unit x 1
  • Batteries for remote control (R03/AAA or LR03/AAA type x 2)
  • Software CD-ROM (Logo Transfer Software, Multi Monitoring, and Control Software x 1)

Panasonic PT-RZ570BU Features:

  • High Luminance and High Contrast
    Comes with a unique optical system which uses a new-generation laser light source along with the laser light source drive system, high luminance of 5,200 lumens and high contrast of 20,000:1 are attained even with its compact form factor.
  • Easy and Highly Flexible Setup
    In addition to 2x zoom lens and lens shift, a wide range of interface support (such as DIGITAL LINK and Art-Net), and support for 360° installation utilizing the solid-state light source characteristics allow for wide range application usage.
  • Long Life and High Reliability
    Also featured is a unique light source cooling control technology plus improved dust resistance, which all help reduce the long-term operational maintenance cost.

Panasonic PT-RZ570BU Specifications:

  • Housing color: Black
  • Brightness: 5,000 lumens
  • Technology: 1-Chip DLP™ Laser
  • Resolution: WUXGA (1,920 x 1,200)
  • Mounting: Lens shift and manual lens zoom
  • Type: Fixed Installation
  • Power supply: AC 100–240 V, 50/60 Hz
  • Power consumption1:
    • 500 W (520 VA, 100 V AC),
      (375 W with OPERATING MODE set to NORMAL, 350 W with OPERATING MODE set to ECO or SILENT,
    • 40 W with the shutter closed, [Picture Mode: Standard, Dynamic Contrast: ON])
      (0.5 W with STANDBY MODE set to ECO2, 10 W with STANDBY MODE set to NORMAL)
      (22 W with STANDBY MODE in AUDIO SETTING set to ON and QUICK STARTUP function disabled, 50 W with QUICK STARTUP function enabled).
  • DLP™ chip:
    • Panel size: 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
    • Display method: DLP™ chip x 1, DLP™ projection system
    • Pixels: 2,304,000 (1,920 x 1,200) pixels
  • Lens: 2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0-3.4, f 21.5–43.0 mm
  • Light source:
    • Laser diode (Laser class: Class 1) (Class 3R for North America)
    • Luminance life: 20,000 hours at half luminance
      (Normal Mode, Temperature: 35 °C [95 °F], altitude: 700 m [2,297 ft], Dust: 0.15 mg/m3)
  • Screen size (diagonal): 1.02–7.62 m (40–300 in), 16:10 aspect ratio
  • Brightness: 5,400 lm (center)4 / 5,200 lm3,4
  • Center-to-corner uniformity3: 90 %
  • Contrast3: 20,000:1 (full on/full off, Dynamic Mode and Dynamic Contrast: ON)
  • Resolution: 1,920 x 1,200 pixels
  • Scanning frequency:
    • HDMI/DVI-D/DIGITAL LINK:
      • fH: 27–100 kHz, fV: 24–120 Hz, dot clock: 25–162 MHz,
      • 480i (525i)5, 576i (625i)5,480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p,
      • 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p,
      • 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p,
      • VGA (640 x 480)–WUXGA6 (1,920 x 1,200), compatible with non-interlaced signals only.
    • RGB: fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz
    • YPBPR (YCBCR):
      • fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
      • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
      • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
      • fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
      • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
      • fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
      • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
      • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
      • fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
      • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
      • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
      • fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
      • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
      • fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
      • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    • Video/Y/C:
      • fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60),
      • fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
    • Optical axis shift7:
      • Vertical: +64 %, -44 % (manual)
      • Horizontal: +34 %, -27 % (manual)
    • Keystone correction range:
      • Vertical: ±40 °, horizontal: ±20°
        (up to a total of ±60 ° during simultaneous horizontal and vertical correction)
    • Installation: Ceiling/floor, front/rear, 360-degree free installation
    • Terminals:
      • HDMI IN: HDMI 19-pin x 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM (sampling frequency: 48 kHz/44.1 kHz/32 kHz)
      • DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
      • COMPUTER 1 IN: D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC x 1)
      • COMPUTER 2 IN/1 OUT:
      • D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
        (input/output selectable using on-screen menu)
      • VIDEO IN: Pin jack x 1 (composite video)
      • AUDIO IN 1: Pin jack x 2 (L x 1, R x 1)
      • AUDIO IN 2: M3 x 1 (L-R x 1)
      • AUDIO IN 3: M3 x 1 (L-R x 1)
      • AUDIO OUT: M3 x 1 (L-R x 1) (variable)
      • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
      • LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compatible with Art-Net, compliant with PJLink™ (Class 1)
      • DIGITAL LINK: RJ-45 x 1 for network/DIGITAL LINK connection (video/audio/network/serial control), 100BASE-TX, compatible with Art-Net, Deep Color, HDCP, compliant with PJLink™ (Class 1)
      • USB: Type A x 1 (5 V, 900 mA)
      • Cabinet materials: (Black) Molded plastic
      • Dimensions: 19-5/8 L x 6-5/88 H x 19-3/8" D (498 x 1688 x 492 mm)
      • Weight9 : Approximately 35.9 lbs (16.3 kg)
      • Operation noise3: 28 dB (Silent Mode), 33 dB (Normal/Eco Mode)
      • Operating environment: Operating temperature: 0-45°C (32-113°F)10, operating humidity: 10- 80 % (no condensation)
      • Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software

1 Operating Temperature: 77 °F (25 °C), Altitude: 700m (2,297ft), ICE627087: 2008 Broadcast contents.
2 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate.
3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
4 With operation mode set to Normal.
5 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal).
6 WUXGA resolution supports CVT-RB signals (WUXGA60RB) and CVT (WUXGA60/WUXGA50) signals.
7 When installed in conventional orientation, upper side, and right side facing toward the screen are “+”.
  When installed on the ceiling, bottom side, and left side are “+”.
8 With legs at shortest position.
9 Average value. May differ depending on the actual unit.
10 The operating environment temperature should be between 0 °C (32 °F ) and 40 °C (104 °F ) when the projector is used at altitudes between 1,400 m (4,593ft) and 4,200 m (13,780ft) above sea level. When [PROJECTOR SETUP] menu > [ECO MANAGEMENT] > [OPERATING MODE] is set to [ECO] or [SILENT], the projector cannot be used at an altitude of 2,700 m (8,858ft) or higher above sea level. When using the projector at an altitude lower than 2,700 m (8,858ft) above sea level and the operating environment temperature is 35 °C (95 °F) or higher, light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858ft) and 4,200 m (13,780ft) and the operating environment temperature is 25 °C (77 °F) or higher, light output may be reduced to protect the projector.
