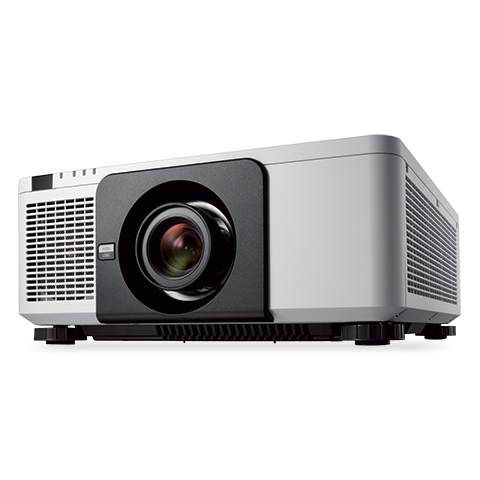

NEC Visual Systems NP-PX803UL-WH Projector
8000 Lumens Projector

OUR PART #:  NP-PX803UL-WH

The NEC NP-PX803UL-WH is a powerful projector with a laser/phosphor light source that makes it perfect for a lot of applications.
Learn More

Call for price! Not available online.

Similar Products

The NEC NP-PX803UL-WH is a powerful projector with a laser/phosphor light source that makes it perfect for a lot of applications.  With consistent brightness, improved color fidelity and tilt-free or portrait modes, the NP-PX803UL-WH projectors are perfect in retail, simulation and theme park situations.  With 20,000 hours of virtually maintenance-free operations, the cost of ownership is way down.

NEC Visual Systems NP-PX803UL-WH Projector Includes:

  • Remote control
  • Batteries
  • Power cord
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw

NEC Visual Systems NP-PX803UL-WH Projector Features:

  • High-brightness, lower power consumption enhance always-on capabilities of laser projection
  • Ideal for new applications such as digital signage
  • Lamp-less operation reduces TCO
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
  • TileMatrix enables 4Kx2K resolution utilizing digital loop through capabilities
  • Seamlessly blend multiple images with integrated edge blending capabilities
  • Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals.
  • Wireless LAN
  • Cornerstone
  • Geometric Correction
  • Auto power on
  • ECO Mode technology
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

NEC Visual Systems NP-PX803UL-WH Projector Specifications:

  • Optical:
    • Display Technology: DLP (0.67" DMD)
    • Light Output(Lumens): 8000 normal
    • Resolution:
      • Native: WUXGA 1920 x 1200
      • Maximum: 4K 4096 x 2160
    • Contrast Ratio (up to): 10,000:1 with dynamic contrast
    • Lamp Type: Laser/Phosphor
    • Lamp Life (up to): 20,000 hours
    • Screen Size (diagonal): 40" to 300" (1.02 to 7.62m)
    • Projection Distance: 1.5' to 179.8' (0.5 to 54.8m)
    • Projector Angle: 2.1° to 19.1° tele (3.3° to 24.0° wide)
    • Lens:
      • Focus: Power
      • Shift: Power +/-0.59 vertical, +/-0.28 horizontal
    • Keystone Correction: +/- 40° horizontal, +/- 40° vertical
  • Signal Compatibility/Connectivity:
    • Synchronization Range:
      • Horizontal (Analog/Digital): Analog: 15-100kHz, Digital: 15-153kHz
      • Vertical (Analog/Digital): Analog: 48-120Hz, Digital: 24-120Hz
    • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    • SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k
    • Macintosh Compatibility: Yes
    • Input/Output Terminals:
      • RGB1(analog): VGA 15-pin D-sub
      • RGB2(analog): 5-BNC
      • RGB2(digital): HDMI w/HDCP
      • RGB4(digital): DisplayPort w/HDCP
      • RGB5(digital): HDBaseT
    • Exterrnal Control:
      • RS-232
      • IR
      • HDBaseT
      • Stereo Mini
      • PJ-45
    • Sync Compatiblity:
      • Separate Sync
      • Composite Sync
      • Sync on G
    • Networking:
      • HDBaseT
      • RJ-45
  • Electrical:
    • Power Requirements: 100-240V AC, 50/60 Hz
    • Input Current: 9.4-3.8A
    • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 874W / 456W / 4.3W / 0.18W
  • Mechanical:
    • Optional Lenses:
      • NP16FL
      • NP17ZL
      • NP18ZL
      • NP19ZL
      • NP20ZL
      • NP21ZL
      • NP31ZL
      • NP39ZL
    • Installation Orientation:
      • Floor/Front
      • Floor/Rear
      • Ceiling/Front
      • Ceiling/Rear
    • Dimensions (WxDxH): 19.7" x 22.9" x 8.5" (500 x 583 x 216mm)
    • Net Weight: 61.7 lbs. (28.0 kg)
    • Fan Noise: 40 dB normal (35 dB eco)
    • Regulations: USA: UL60950-1, Laser + Lamp (IEC60825-1 + IEC62471), FCC Part15 Class A, Canada: C-UL CSA60950-1, Laser + Lamp (IEC60825-1 + IEC62471), ICES-003 Class A, NOM
  • Environmental:
    • Operating Temperature: 41°-104°F (5°-40°C)
    • Humidity: 20-80% non-condensing
    • Storage: -14°-122°F (-10°-50°C)
  • Limited Warranty: 3 years (excluding consumables). First year Instacare Service.
