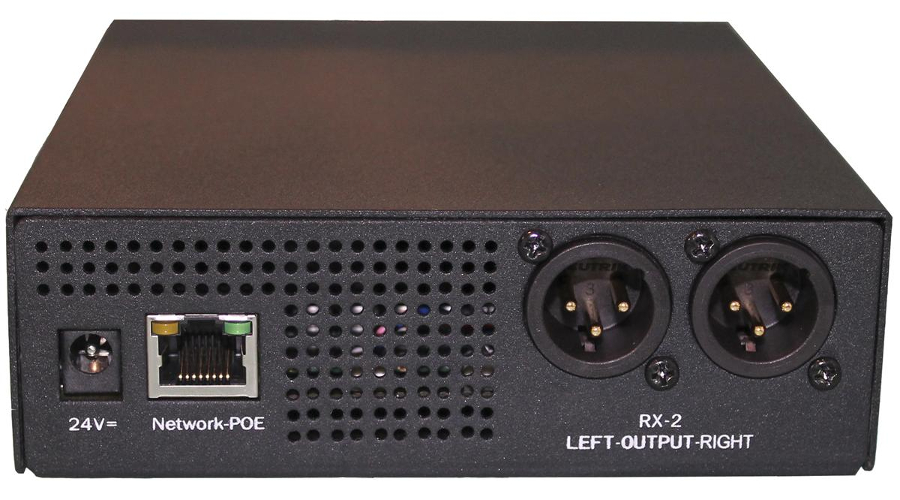

MyMix RX-2 Personal Monitor Rackmixer

The myMix RX-2 is a remote controlled personal monitor rack mixer. It comes in a solid metal housing (1U) and is designed to be operated by the myMix Control web browser based interface. The RX-2 has the same mixing capabilities as a standard myMix: it can select up to 16 audio channels from the network and create a stereo mix, controlling volume, pan, tone control and stereo effects per channel.

The myMix network can manage up to 500 audio channels which can consist of local inputs from myMix mixers, analogue or digital inputs to IEX16 input expanders, or stereo mixes from myMix mixers.The RX-2 is ideal for transporting a mix that is created on a myMix in one place via the network to another location, e.g. a musician on stage is creating a stereo mix and is sending that mix to the network. The RX-2 selects that mix signal and can add some extra channels like talkback or intercom from other sources; the output is then fed to a wireless transmitter for in-ear monitors. The optional RX-RM rack-mount kit allows to fit three RX-2 devices in 1U rack space.

Features

• Low latency Audio Over IP on CAT5
• Two balance line level outouts (XLR)
• myMix CONTROL web browser for configuration
• Metal housing with rack mount option
• Optional 19" rack-mount kit - holds 3 Rx-2 in 1U
• Fully compatible with all myMix devices

Specifications

• Outputs
  • Impedance: 75 Ohms, balanced
  • Max Output Level: + 21 dB
  • connectors: XLR (pin 2 hot)
  • Signal to Noise Ratio: > 104 dB
  • Crosstalk (L - R): < - 80 dB
• Network
  • Network Type: 100 MBps Fast Ethernet
  • Network Cabling: CAT5 with RJ45
  • DA-Conversion: 24-bit
  • Sampling Rate: 48 kHz
  • Weight: 3 lbs
  • Dimensions: 157 x 132 x 43 mm (6.2 x 5.2 x 1.7 in)
  • Included Accessory: 24 V power supply (0.5 A)
