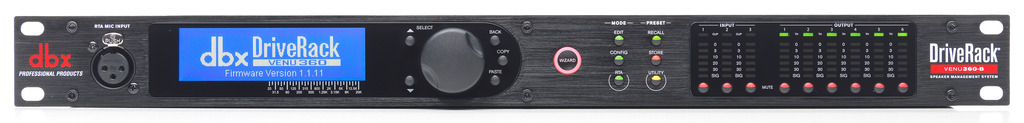

DBX DriveRack VENU360-B
Complete Loudspeaker Management System With BLU Link

OUR PART #:  DRVRACK-VENU-360-BLU

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers.
Learn More
Our Price: $941.84
List Price: $1,249.00
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX DriveRack VENU360-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

The VENU360-B model provides all the features of the standard VENU360 model but with the addition of BLU link-enabled RJ-45 ports for interfacing with other BLU link-equipped devices, such as the dbx TR1616, the PMC16s, the BSS® Audio Soundweb London devices, or a Soundcraft® mixing console equipped with a BLU link option card. The VENU360-B model also provides a 7 x 6 routing/mixing matrix (using any available combination of AES, analog, and BLU link input channels) and a 3 x 6 signal processing chain.

dbx DriveRack VENU360-B Features:

  • Input Processing:
    • dbx Compression
    • AFS™ (Advanced Feedback Suppression)
    • 31-Band Graphic EQ
    • 12-Band Parametric EQ (with narrow notch capabilities)
    • Subharmonic Synthesis
    • Backline Delay
    • Noise Gate
  • Output Processing:
    • Crossover (supports full range up to mono 6-way systems)
    • 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
    • dbx Compression
    • Automatic Gain Control
    • Subharmonic Synthesis
    • Noise Gate
    • Tower Delays (up to 1000ms per output)
    • 8-Band Parametric EQs (used for speaker tunings)
    • dbx Limiting
    • Driver Alignment Delays

dbx DriveRack VENU360-B Specifications:

  • Input: (3) analog line inputs/(2) AES digital inputs(shared connectors), (1) RTA mic input
  • Input Connectors: (3) female XLRs (2 selectablebetween analog/AES digital audio formats), (1) female XLR RTA mic input
  • Input Type: Electronically balanced/RF filtered
  • Input Impedance: > 30 k Ohms, balanced line toline
  • Max Input Level (line inputs): > +28 dBu,balanced, </= 1 % THD
  • CMRR: > 50 dB @ 1 kHz
  • RTA Mic Preamp Phantom Power: + 48 VDC
  • Output: (6) Line Outputs
  • Output Connectors: Male XLR
  • Output Type: Electronically balanced, RF filtered
  • Output Impedance: 120 Ohms, balanced line to line
  • Max Output Level: +22 dBu, balanced, </= 1% THD
  • BLU LINK Audio Connectors: (2) RJ-45 Ethernetconnectors
  • BLU LINK Audio Maximum Nodes: Up to 60 devices
  • BLU LINK Audio Maximum Cable Length: 100m/328ft onCategory 5e or higher cable between devices
  • BLU LINK Audio Latency: 11/Fs [0.23 ms @ 48 k, 0.11ms @ 96k]
  • BLU LINK Audio Pass Through Latency: 4/Fs [0.08 ms @48 k, 0.04 ms @ 96 k]
  • Alignment Delay: Up to 1000 ms per output channel
  • A/D Converter: 24-bit with dbx Type IV™ ConversionSystem
  • A/D Dynamic Range: 117 dB A-weighted, 114 dBunweighted, 22 kHz BW
  • Type IV Dynamic Range: 129 dB with transientmaterial, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted,22
  • kHz BW; 121 dB typical with program material,A-weighted, 22 kHz BW
  • D/A Converter: 24-bit
  • D/A Dynamic Range: 116 dB A-weighted, 113 dBunweighted, 22 kHz BW
  • Internal Processing Wordlength: 32-bit floating point
  • Supported Sample Rates: 48 / 96 kHz (32 - 192 kHzusing sample rate conversion)
  • System Performance Dynamic Range: 114 dB A-weighted;110 dB unweighted
  • THD+Noise: 0.0025% typical at + 4 dBu, 1 kHz, 0 dBinput gain
  • Frequency Response: 20 Hz – 20 kHz, +0 /- 0.5 dB
  • Interchannel Crosstalk: < -97 dB, -105 dB typical20-20 kHz, +4 dBu, all channels measured
  • Latency: Analog input to output: 2.57 ms (48 kHz),2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
  • Operating Voltage: 100-240 VAC 50/60 Hz
  • Power Consumption: 18 W
  • Unit Weight: 5.48 lbs. (2.49 kg)
  • Shipping Weight: 7.10 lbs. (3.22 kg)
  • Dimensions (H x D x W): 1.75 x 8.0 x 19” (4.4 x 20.32 x 48.26 cm)
