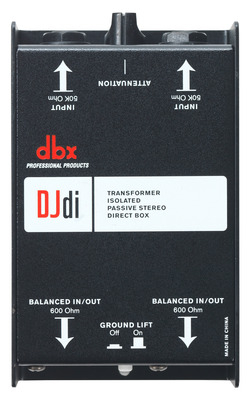

DBX DJDI
2-Channel Passive Direct Box That Converts Unbalanced Signal

OUR PART #:  DJDI

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications.
Learn More
Our Price: $39.00
List Price: $49.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX DJDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

DBX DJDI Features:

  • Dual Channel
  • (2) 1/4” 50k Ohm TS Inputs
  • (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
  • Passive Circuit Design
  • Continuously Variable Input Attenuator
  • Ground Lift Switch

DBX DJDI Specifications:

  • Circuit: Passive
  • Inputs: 2
  • Input Connectors: 1/4” TS (Tip Hot, Sleeve Ground)
  • Input Type: Unbalanced, RF Filtered
  • Input Impedance: 50 kOhm
  • Outputs: 2
  • Output Connectors: Male XLR, Balanced, Pin 2 hot
  • Output Impedance: 600 Ohms
  • Noise Level: -104 dBu (22 Hz - 22 kHz, Input Shorted)
  • THD+N (10 Hz - 22 kHz): 0.23% typical @ + 4 dBu @ 1kHz
  • Insertion Loss: 21 dB typical
