Product Overview

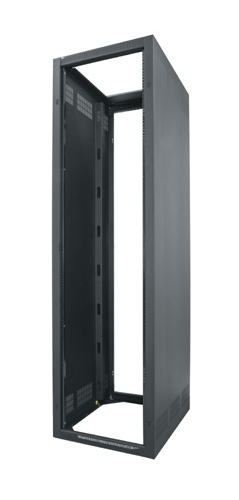

Middle Atlantic's ERK-4028 is a 40RU, 28" deep economical standalone rack with solid sides. This steel ERK series rack can also be ganged to create partitioned multi-bay installations for thermal management control, future growth, or other purposes.
Middle Atlantic ERK-4028 Features:
- Fully welded construction, solid sides
- Enclosure sides include top and bottom venting
- Convenient lacing points and slotted rail brackets for cable management
- Standard front adjustable 10-32 threaded rackrail with numbered spaces
- 1/2", 3/4", 1", and 1-1/2" electrical knockouts on removable top and bottom split rear plates. Top plates additionally include UHF/VHF knockouts
- Includes standard configurable rear door
- Optional front doors available
- 2,500 lb. weight capacity
- UL Listed in the US and Canada
- Seismic certified when used with optional ERK-Z4 brackets (sold separately)
- Laser-cut 1/8" thick internal steel braces for strength
- Finished in a durable black textured powder coat
Middle Atlantic ERK-4028 Specifications:
- Rackrail Type: 10-32
- Material: Steel
- Mounting: Horizontal
- Seismic Certified: Yes
- UL Load Capacity: 2500 lbs (1136.36 kg)
- UL Standards Tested: UL2416
- RoHS: Yes
- Greenguard: Yes
- Usable Depth: 26.47" (67.23 cm)
- Usable Height: 70.125" (178.12 cm)
- Dimensions: 28" D x 74.125" H x 22" W (71.12 x 188.28 x 55.88 cm)
- Rack Units: 40
