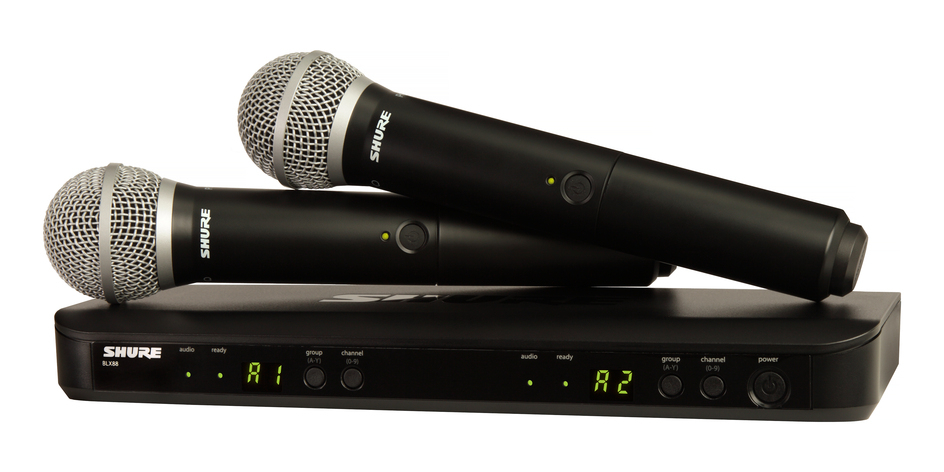

Shure BLX288/PG58-H10 Dual-Channel Wireless System with 2 PG58 Handheld Mics, H10 Band

Shure BLX288/PG58 Wireless System combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and designed to perform in a variety of demanding applications, it’s the most accessible way to own the stage.

The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. This dual analog wireless receiver provides improved linearity and frequency response with group and channel scan for easy set-up.

Featuring an integrated PG58 microphone cartridge, the BLX2/PG58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Includes

• BLX88 Dual-channel Receiver
• (2) PG58 Handheld Transmitters
• (2) Microphone clips
• Power supply
• (4) AA batteries

Features

• BLX88 Features
  • XLR and ¼" output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload / clipping)
• BLX2/PG58 Handheld Transmitter
  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10 dB gain attenuation
  • Color ID caps (available separately)

Specifications

• BLX88 Receiver
  • Output Impedance
    • XLR connector - 200 Ω
    • 6.35 mm (1/4") connector - 50 Ω
  • Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone
  • XLR connector: –27 dBV (into 100 kΩ load)
  • 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
  • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dB, typical
  • Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
  • Weight: 15.1 oz. (429 g)
  • Molded ABS Housing
  • Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
• BLX2 Transmitter
  • Audio Input Level
    • 0dB: -20 dBV maximum
    • -10dB: -10 dBV maximum
  • Gain Adjustment Range: 10 dB
  • RF Transmitter Output: 10 mW, typical (varies by region)
  • Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
  • Weight: 7.7 oz. (218 g) without batteries
  • Molded ABS Housing
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)
