Shure BLX24/SM58-H10 Wireless Vocal System with SM58 Handheld Mic, H10 Band

OUR PART #: BLX24/SM58-H10 MFR #: BLX24/SM58-H10

Copied to clipboard

The Shure BLX24/SM58 Wireless System combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. ...Read more

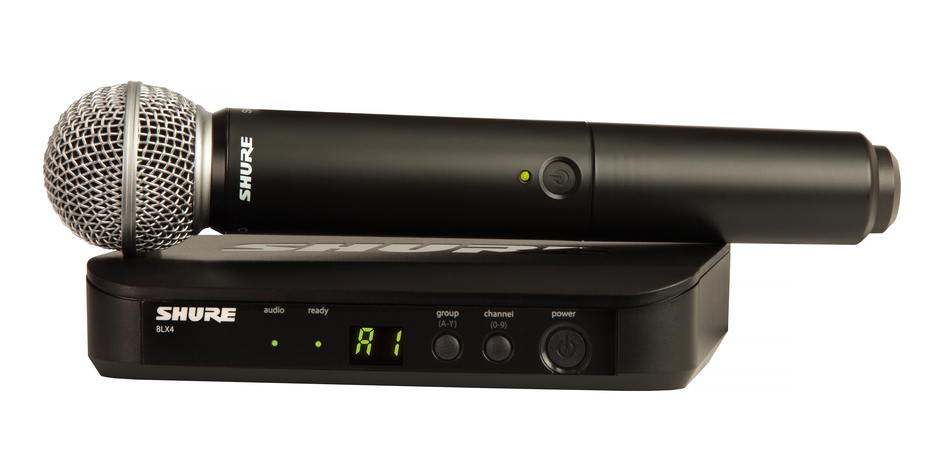

Shure BLX24/SM58-H10 Wireless Vocal System With SM58 Handheld Mic, H10 Band Image 1
Shure BLX24/SM58-H10 Wireless Vocal System With SM58 Handheld Mic, H10 Band
Our Price: $349.00
List Price: $439.00
You save 21%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$10/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Shure BLX24/SM58 Wireless System combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built with a reputation for dependability, it’s the most accessible way to own the stage.

Includes

  • BLX4 Single-Channel Receiver
  • BLX2/SM58 Handheld Transmitter
  • Microphone clip
  • Power supply
  • (2) AA batteries

Features

  • BLX4 Single-Channel Receiver
    • Up to 12 compatible systems per frequency band (region dependent)
    • Microprocessor-controlled internal antenna diversity
    • One-touch QuickScan frequency selection quickly locates the best frequency
    • 1/4" and XLR audio outputs
    • Two color audio status indicator LED
  • BLX2/SM58 Handheld Transmitter
    • Power and battery status LED
    • Adjustable gain control
    • Quick & easy frequency matching
    • 2 AA batteries (included) provide up to 14 hours of continuous use
    • 300 feet (91 m) operating range(line of sight)
    • SM58 - cardioid dynamic microphone capsule tailored to deliver warm, clear vocal reproduction

Specifications

  • BLX System
    • Working Range: 91 m (300 ft) Line of Sight (actual range depends on RF signal absorption, reflection and interference)
    • Audio Frequency Response: 50 to 15,000 Hz (dependent on microphone type)
    • Total Harmonic Distortion, Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
    • Dynamic Range: 100 dB, A-weighted, typical
    • Operating Temperature: -18°C (0°F) to 57°C (135°F) (battery characteristics may limit this range)
    • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
  • BLX4 Wireless Receiver
    • Output Impedance
      • XLR connector: 200 Ω
      • 6.35 mm (1/4") connector: 50 Ω
    • Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone
      • XLR connector: –27 dBV (into 100 kΩ load)
      • 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
    • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
    • Image Rejection: >50 dB, typical
    • Dimensions (H x W x D): 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm)
    • Weight: 8.5 oz. (241 g)
    • Housing: Molded ABS
    • Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
  • BLX2/SM58 Handheld Transmitter
    • Audio Input Level
      • 0dB: -20 dBV maximum
      • -10dB: -10 dBV maximum
    • Gain Adjustment Range: 10 dB
    • RF Transmitter Output: 10 mW, typical (varies by region)
    • Dimensions (L x Dia.): 8.82 in. X 2.09 in. (224 mm X 53 mm)
    • Weight: 7.7 oz. (218 g) without batteries
    • Housing: Molded ABS
    • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
    • Battery Life: up to 14 hours (alkaline)
  • SM58 Microphone capsule
    • Cardiod
    • Dyanamic
    • Vocal mic
