Product Overview

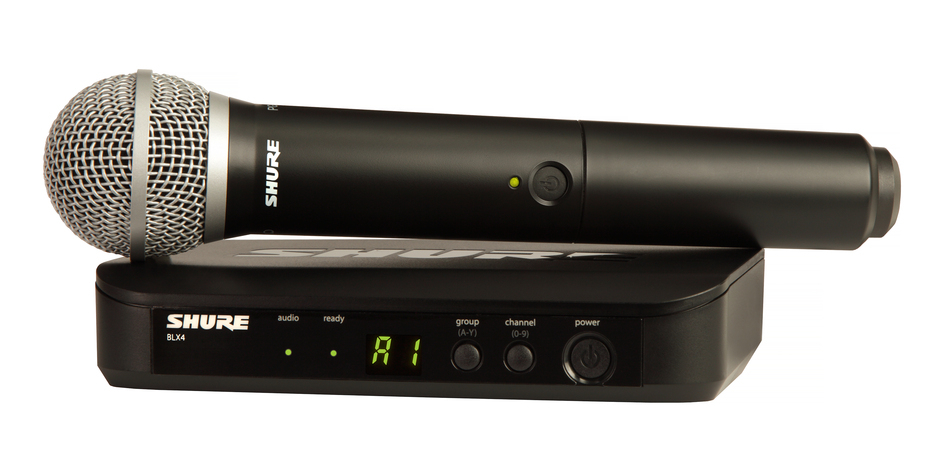

The Shure BLX24/PG58 is a handheld wireless system that features the PG58 handheld microphone. This system comes with the BLX4 single channel receiver and the BLX2/PG58 handheld wireless microphone transmitter. The BLX4 is a single channel wireless receiver with microprocessor-controlled internal antenna diversity. The BLX2/PG58 features an integrated PG58 microphone cartridge and delivers wireless audio with professional clarity and reliability.
Operates in Frequency Band H10 (542 to 572 MHz)
Includes
- BLX4 single-channel receiver
- BLX2/PG58 handheld transmitter
- Microphone clip
- Power supply
- (2) AA batteries
Features
- BLX4 Single-Channel Receiver:
- Up to 12 compatible systems per frequency band (region dependent)
- Microprocessor-controlled internal antenna diversity
- One-touch QuickScan frequency selection quickly locates the best frequency
- 1/4" and XLR audio outputs
- Two color audio status indicator LED
- BLX2 Handheld Transmitter:
- Integrated PG58 microphone cartridge
- Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- Two AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
Specifications
- Operates in Frequency Band H10 (542 to 572 MHz)
- BLX4 Single-Channel Receiver
- Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level; Ref. ±33 kHz deviation with 1 kHz tone
- XLR connector: –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions (H x W x D): 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm)
- Weight: 8.5 oz. (241 g)
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
- BLX2 Handheld Transmitter
- Integrated PG58 microphone cartridge
- Audio Input Level
- 0dB: -20 dBV maximum
- -10dB: -10 dBV maximum
- Gain Adjustment Range: 10 dB
- RF Transmitter Output: 10 mW, typical (varies by region)
- Dimensions (L x Dia.): 8.82 in. X 2.09 in. (224 mm X 53 mm)
- Weight: 7.7 oz. (218 g) without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
