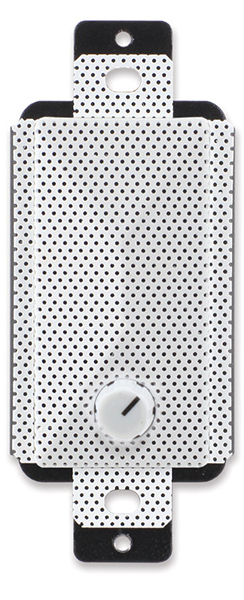

Radio Design Labs D-PSP1
Active Decora-Style Loudspeaker, White

OUR PART #  D-PSP1

Our Price: $182.61
List Price: $244.27
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The RDL D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1).

Radio Design Labs D-PSP1 Features:

  • Quality audio for ultra-compact size
  • 2 Watt RMS Audio Amplifier
  • Compressor/limiter prevents clipping
  • Balanced +4 dBu input on the rear panel
  • Unbalanced -10 dBV input on the rear panel
  • Front-panel gain adjustment
  • Acoustically optimized decora enclosure
  • Fidelity comparable to larger drivers
  • Hemispherical dispersion mounted in wall or flat surface

Radio Design Labs D-PSP1 Specifications:

  • Inputs (2): 30 kOhms balanced or 10 kOhms unbalanced
  • Input Level: +4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced)
  • Minimum Input Level: -18 dBu (Balanced, Max. gain);-19 dBV (Unbalanced, Max. gain)
  • Maximum Input Level: +22 dBu
  • Gain Adjustment: Single-turn audio taper (Front-panel)
  • Maximum SPL: 81 dB
  • Frequency Range: 150 Hz to 20 kHz, nominal
  • CMRR: > 50 dB (50 Hz to 120 Hz)
  • Power Requirement: 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
  • Ambient Operating Environment: 0°C to 40°C Maximum; 20°C Recommended
  • Dimensions (HxWxD): 4.12" x 1.72" x 2.64" (10.46 x 4.37 x 6.7 cm)
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.573 lbs
Single-Gang Universal Wall Box
Radio Design Labs WB-1U Single-Gang Universal Wall Box
Can be mounted in International or US walls and cabinets. Features side and rear mounting holes which secure the box in new construction. Also has folding tabs which secure the box in an existing wall or cabinet.Dimensions: Height: 4.125 ...
In Stock
14.20 16.75 15
In Stock
Wall Plate, Single Cover Plate, White
Radio Design Labs CP1-W Wall Plate, Single Cover Plate, White
For use with RDL R style remote controls and D style connector plates; Mount with RDL WB-1U Universal Wall Box.
In Stock
11.06 13.05 15
In Stock
Desktop or Wall-Mounting Decora Remote Control or Panel Chassis (Gray)
Radio Design Labs DC-4G Desktop or Wall-Mounting Decora Remote Control or Panel Chassis (Gray)
Radio Design Labs' DC-4G desktop chassis holds four Decora®-style products, including RDL remote controls and connector plates.  Installation is facilitated using the included mounting plate, which allows the chassis to mount to ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
93.06 124.48 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
White Desktop or Wall-Mounted Chassis for Decora® Remote Controls and Panels
Radio Design Labs DC-3W White Desktop or Wall-Mounted Chassis for Decora® Remote Controls and Panels
Radio Design Labs' DC-3W desktop chassis hold three Decora®-style products, including RDL remote controls and connector plates.  Installation is facilitated using the included mounting plate, which allows the chassis to mount to a ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
79.59 106.46 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Desktop/Wall-Mounted Chassis for Decora® Remote Controls and Panels
Radio Design Labs DC-3G Desktop/Wall-Mounted Chassis for Decora® Remote Controls and Panels
Radio Design Labs' DC-3G desktop chassis holds three Decora®-style products, including RDL remote controls and connector plates.  Installation is facilitated using the included mounting plate, which allows the chassis to mount ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
79.59 106.46 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
3RU Rack Panel Mount for 9 Decora Models
Radio Design Labs RM-D9 3RU Rack Panel Mount for 9 Decora Models
Radio Design Labs' RM-D9 is a 3 RU rack panel that allows the mounting of 9 Decora products, such as RDL remote controls and D-Series connector plates. The installer can label each installed module behind an included protection lens.The ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
67.75 90.63 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Wall Mount Chasis for Decora
Radio Design Labs DC-2G Wall Mount Chasis for Decora
The DC-2G desktop chassis holds two Decora®-style products, including RDL remote controls and connector plates. Installation is facilitated using the included mounting plate, which allows the chassis to mount to a tabletop or on a ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
66.33 88.72 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Desk Top Chassis for Decora, White
Radio Design Labs DC-2W Desk Top Chassis for Decora, White
The DC-2W white desktop chassis holds two Decora®-style products, including RDL remote controls and connector plates. Installation is facilitated using the included mounting plate, which allows the chassis to mount to a tabletop or on a ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
66.33 88.72 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
1RU Rack Panel Mount for 3 Decora Models
Radio Design Labs RM-D3 1RU Rack Panel Mount for 3 Decora Models
Radio Design Labs' RM-D3 is a 1 RU rack panel that allows the mounting of 3 Decora products, such as RDL® remote controls and D-Series connector plates. The installer can label each installed module behind an included protection lens. The ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
58.27 77.95 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Desktop or Wall Mounted Chassis for Decora Remote Controls and Panels
Radio Design Labs DC-1W Desktop or Wall Mounted Chassis for Decora Remote Controls and Panels
The Radio Design Labs DC-1W desktop chassis holds one Decora-style product, which includes RDL remote controls and connector plates. Installation is facilitated using the included mounting plate, which allows the chassis to mount to a ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
52.78 70.58 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Wall Mount Chasis for Decora
Radio Design Labs DC-1G Wall Mount Chasis for Decora
The DC-1G desktop chassis holds one Decora®-style product, including RDL remote controls and connector plates. Installation is facilitated using the included mounting plate, which allows the chassis to mount to a tabletop or on a vertical ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
52.78 70.58 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Gray Dual-Gang Surface Mount Boxes for 2 Decora Remote Controls and Plates
Radio Design Labs SMB-2G Gray Dual-Gang Surface Mount Boxes for 2 Decora Remote Controls and Plates
Radio Design Labs' SMB-2G dual-gang surface mount boxes holds two Decora®-style products, including RDL remote controls and connector plates.  Knockouts are provided for fastening standard metric or North American conduits to the ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
43.00 57.51 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Single-Gang Gray Surface Mount Boxes for Decora-Style Devices
Radio Design Labs SMB-1G Single-Gang Gray Surface Mount Boxes for Decora-Style Devices
Radio Design Labs' SMB-1G surface mount boxes holds one Decora®-style products, including RDL remote controls and connector plates.  Knockouts are provided for fastening standard metric or North American conduits to the rear of the ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
39.55 52.89 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Dual-Gang Universal Wall Box
Radio Design Labs WB-2U Dual-Gang Universal Wall Box
Can be mounted in International or US walls and cabinets. Features side and rear mounting holes which secure the box in new construction. Also has folding tabs which secure the box in an existing wall or cabinet.Dimensions: Height: 4.125 ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
15.32 18.06 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Stainless Steel Quad Cover Plate
Radio Design Labs CP-4S Stainless Steel Quad Cover Plate
For use with RDL SMB-4 and DC-4 for mounting RDL remote controls and jack panels.  Compatible with Decora style products and American electrical boxes.Shipping Weight: 0.16 lbsPackage Dimensions: 7" x 9"
Usually ships in 7-14 business days.
Need it sooner? Call us!
13.92 16.42 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Stainless Steel Dual-Gang Wall Plate
Radio Design Labs CP-2S Stainless Steel Dual-Gang Wall Plate
Dimensions: 4.55" x 4.55" (11.6 x 11.6 cm)
Usually ships in 7-14 business days.
Need it sooner? Call us!
12.03 14.19 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Double Cover Plate/Gray
Radio Design Labs CP-2/G Double Cover Plate/Gray
For use with RDL R style remote controls and D style connector plates; Mount with RDL WB-2U Universal Wall Box.
Usually ships in 7-14 business days.
Need it sooner? Call us!
12.03 14.19 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Single Gang Decora Cover Plate in Stainless Steel
Radio Design Labs CP-1S Single Gang Decora Cover Plate in Stainless Steel
The Radio Design Labs CP-1S is a single gang decora cover plate in stainless steel.Dimensions: 4.55" H x 2.8" W (11.6 x 7.1 cm)Package Dimensions: 2" x 3"Shipping Weight: 0.072 lbs
Usually ships in 7-14 business days.
Need it sooner? Call us!
11.07 13.05 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Single-Gang Gray Wall Plate for SMB-1, DC-1, WB-1U, Decora-Style Products
Radio Design Labs CP-1/G Single-Gang Gray Wall Plate for SMB-1, DC-1, WB-1U, Decora-Style Products
Radio Design Labs' CP-1G is for use with RDL SMB-1, DC-1 and WB-1U for mounting RDL remote controls and jack panels.  Compatible with Decora style products and American electrical boxes.Height: 4.55" (11.6 cm)Width: 2.80" (7.1 cm)
Usually ships in 7-14 business days.
Need it sooner? Call us!
11.06 13.05 15
Usually ships in 7-14 business days.
Need it sooner? Call us!

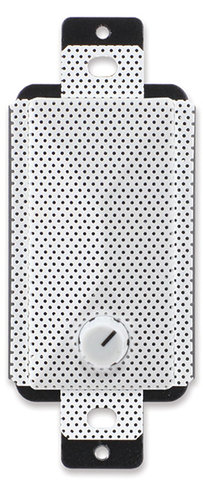

Radio Design Labs D-PSP1
